Miniature Bottle Slider Box: Laser Cut Files (SVG, PDF, CDR)

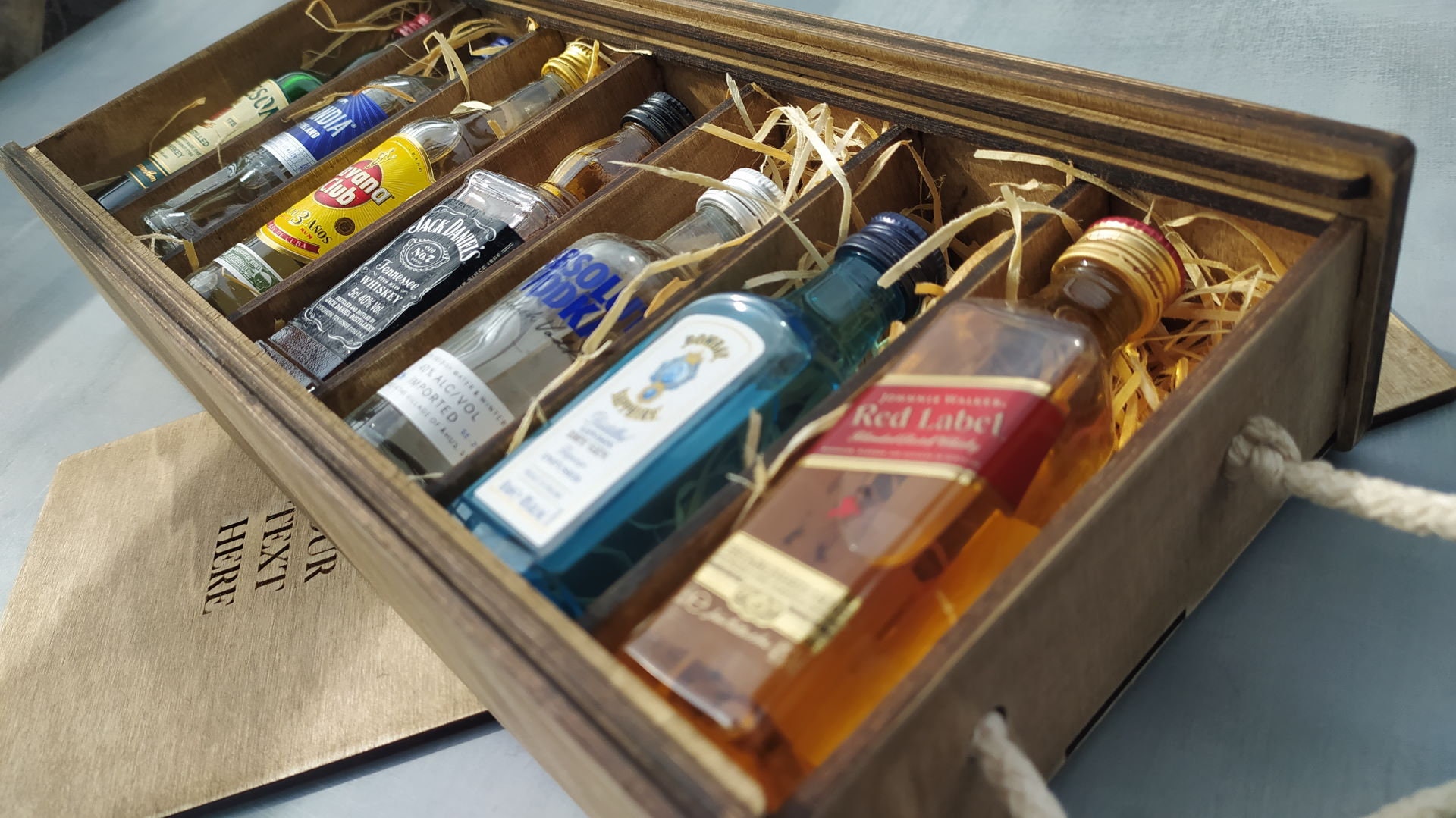

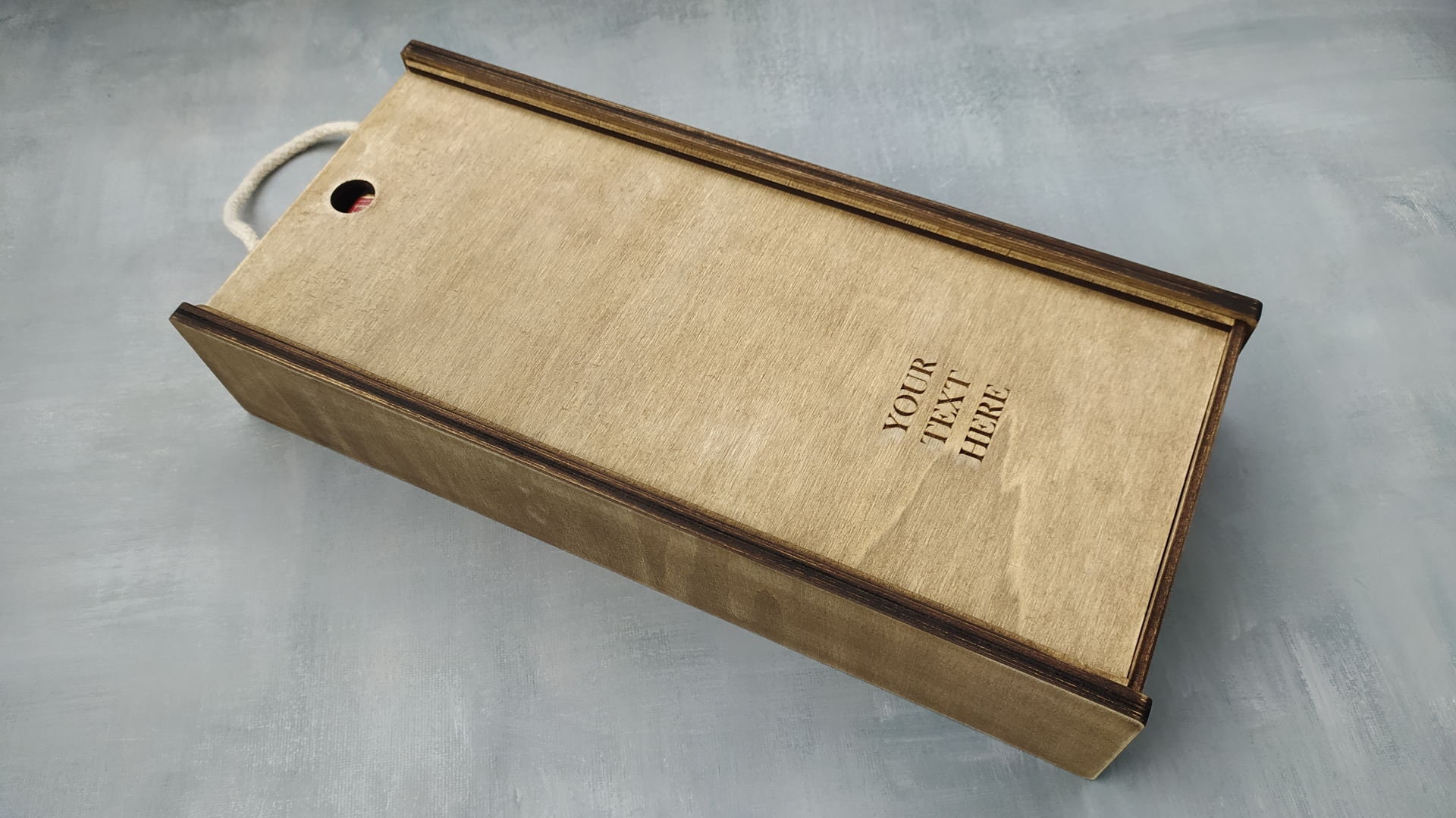

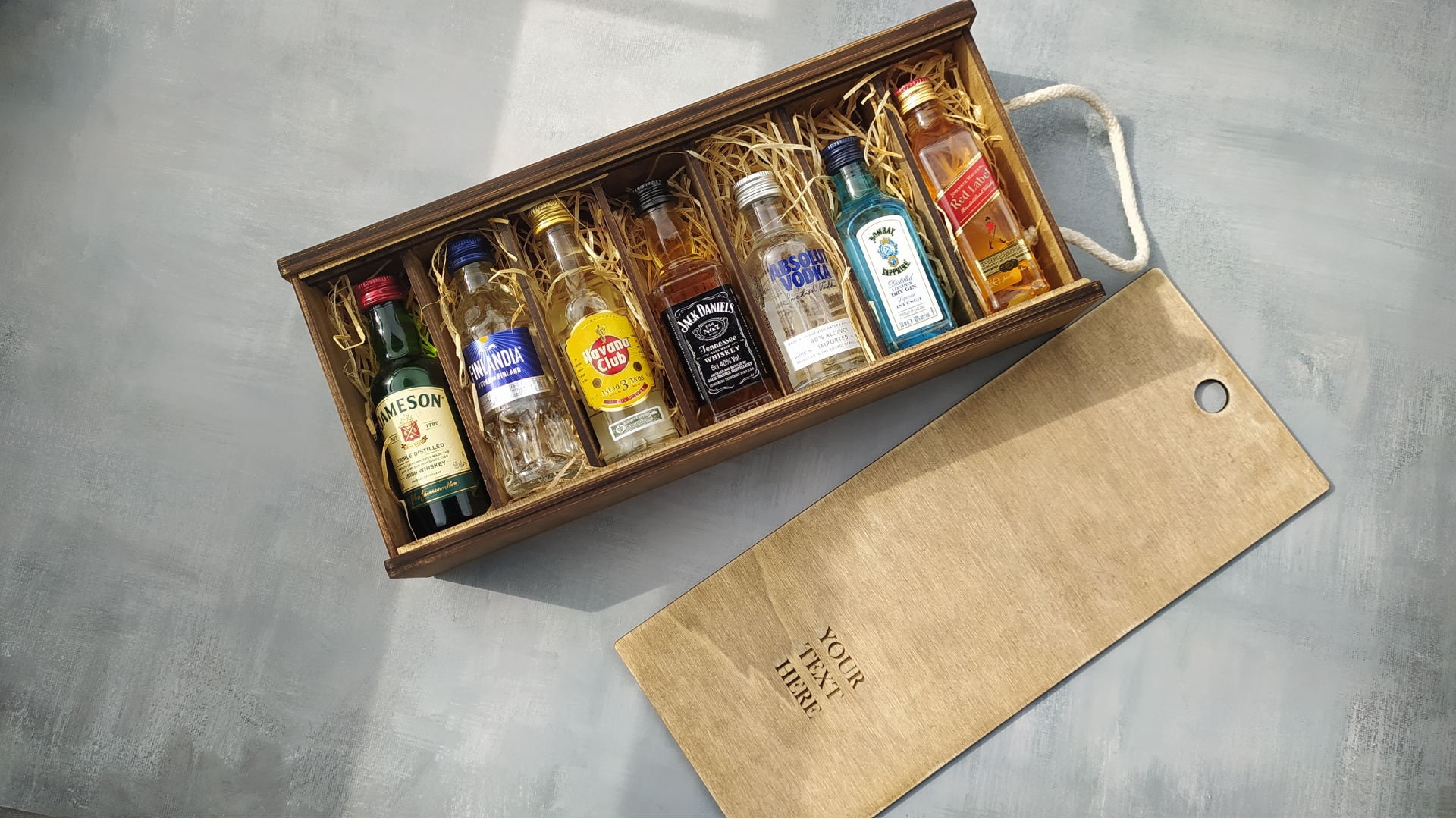

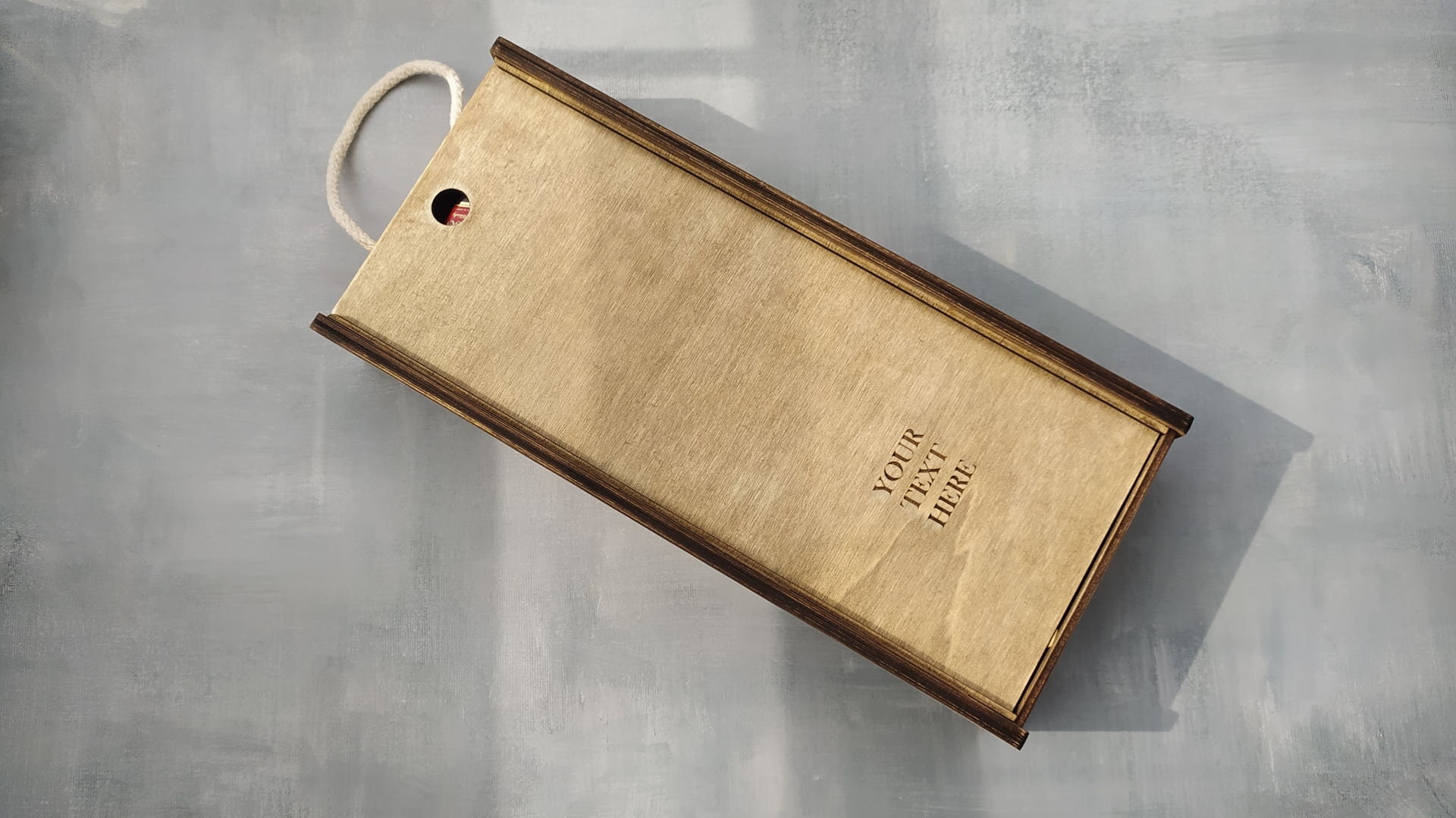

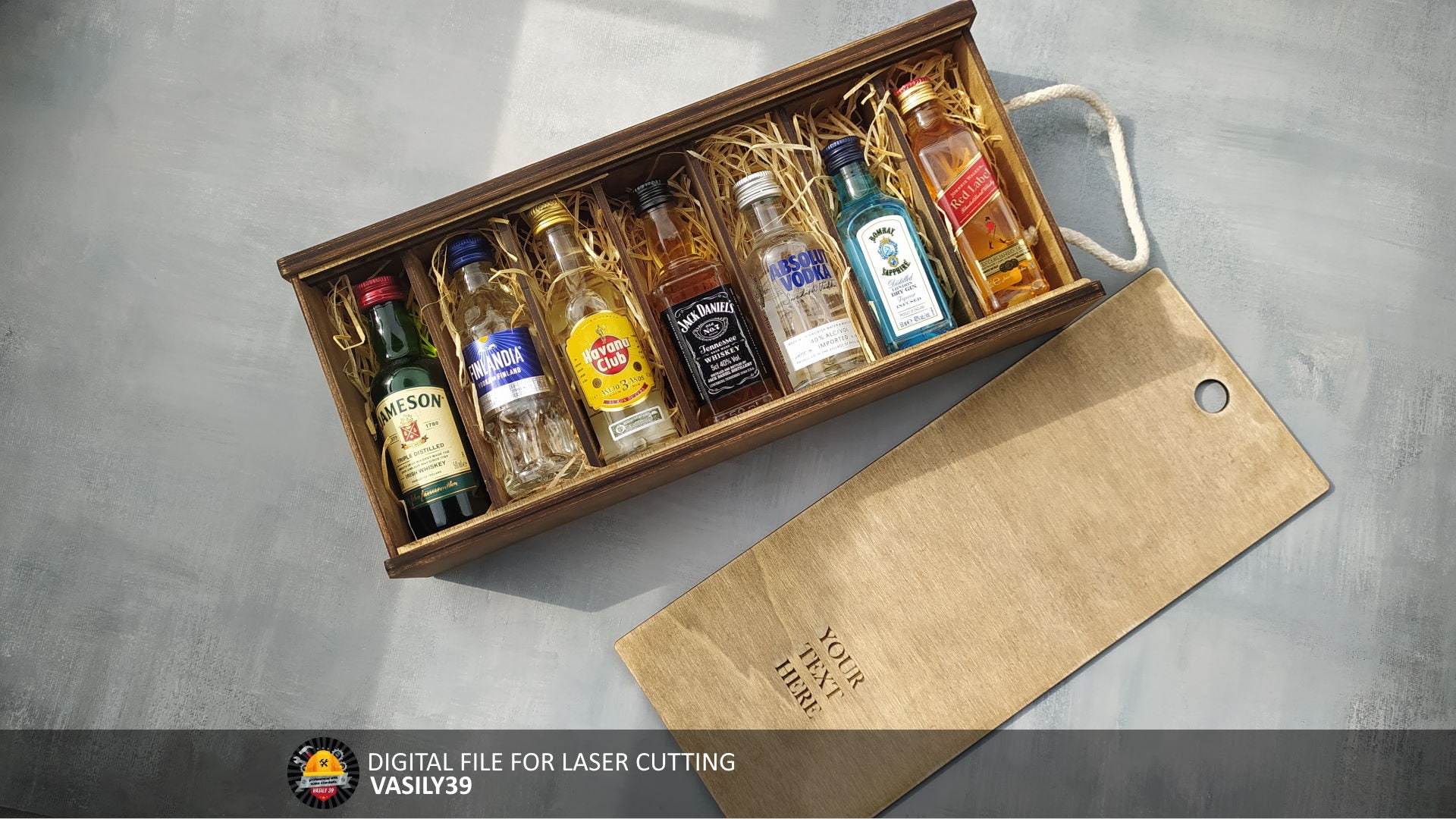

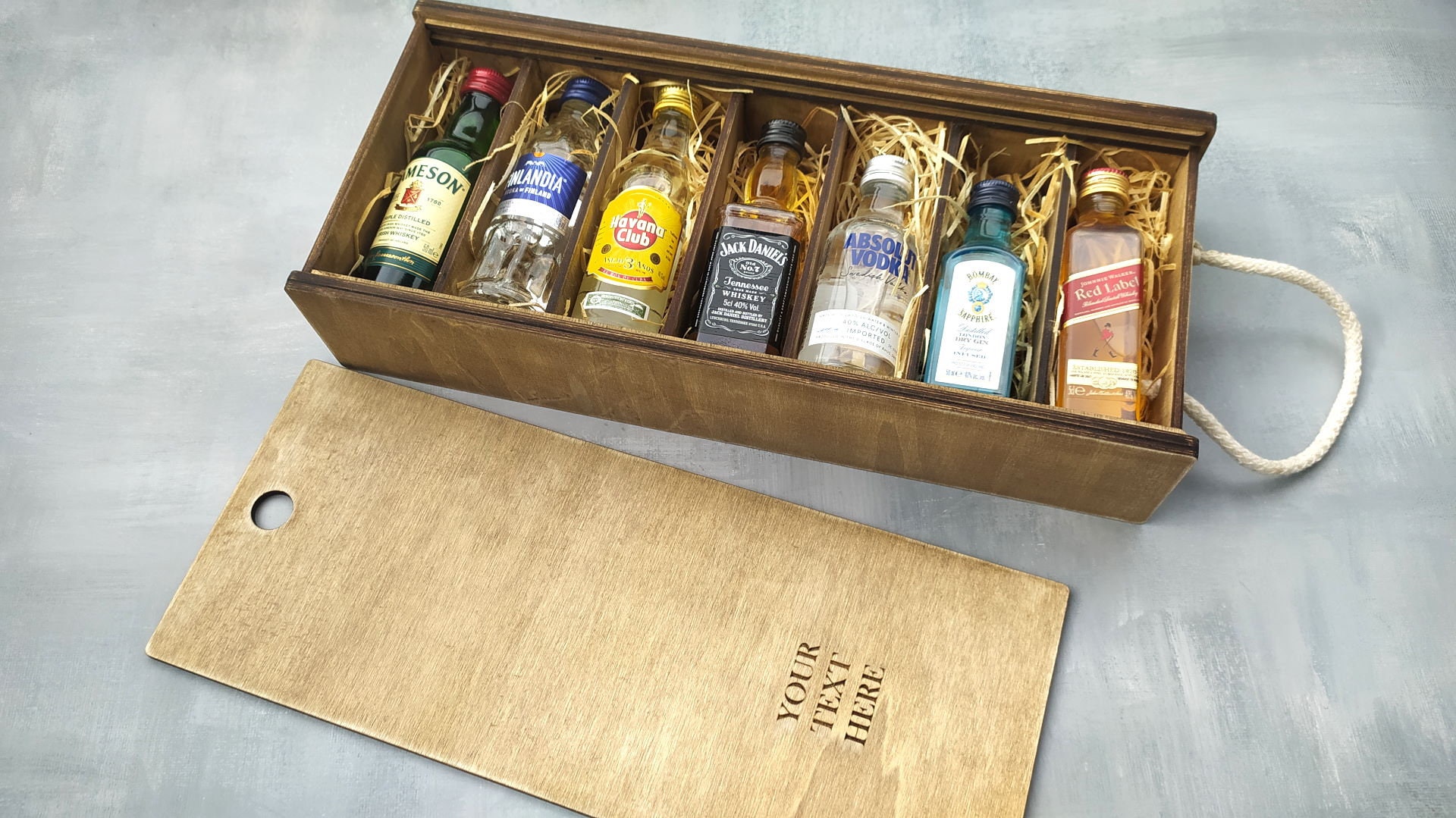

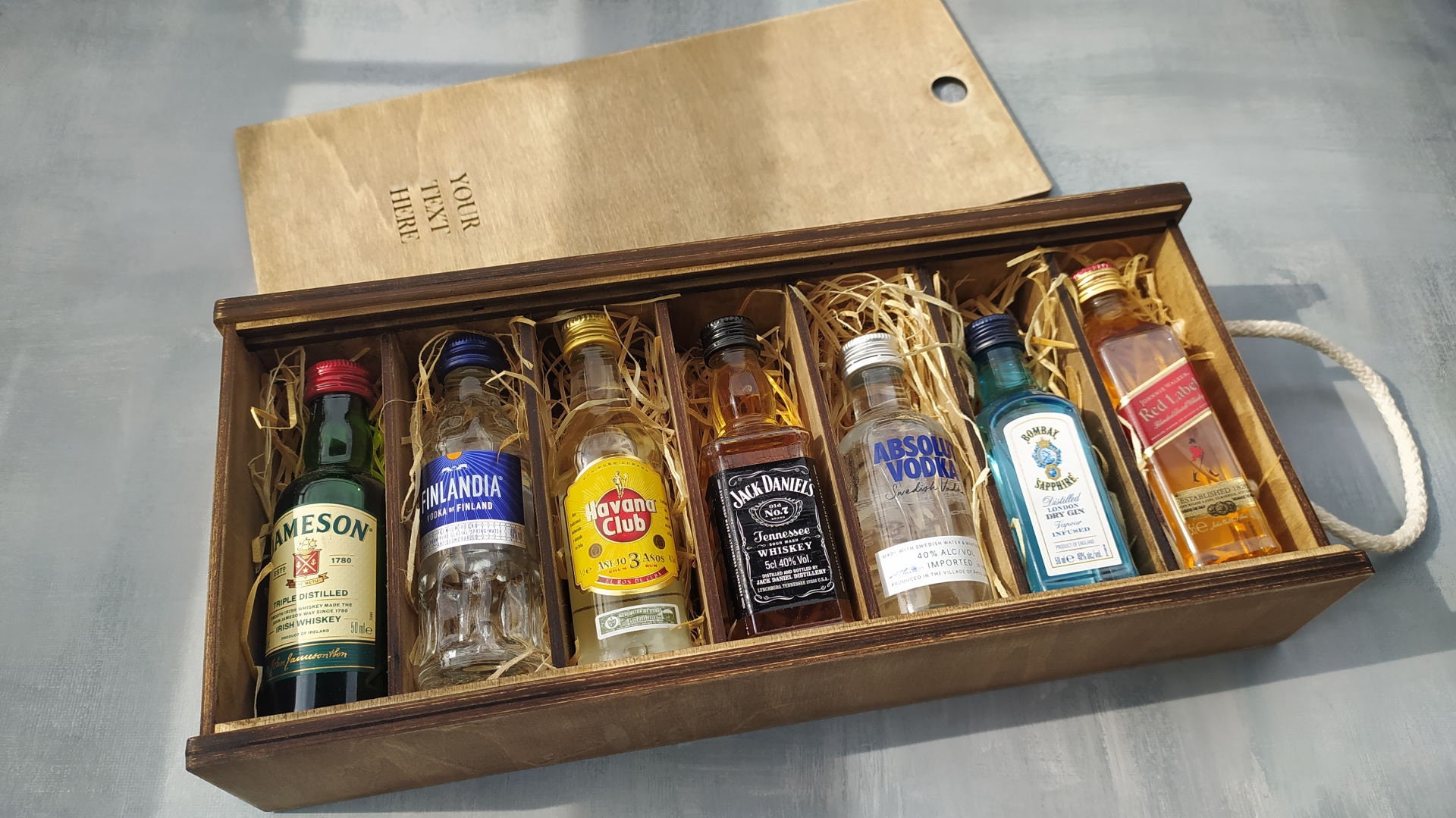

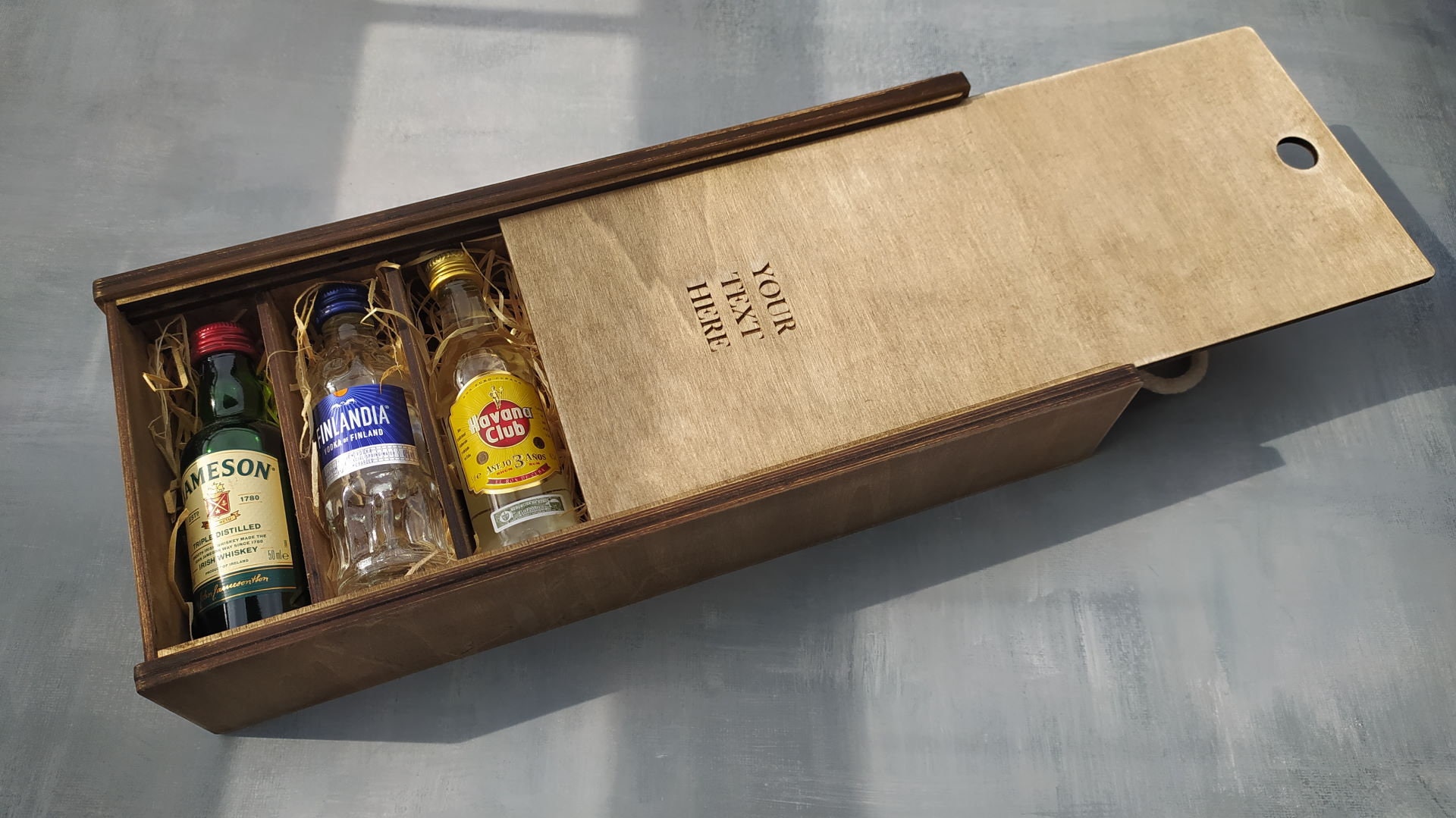

Slider box 00181. Digital files for manufacturing products on a CNC laser machine. For an unusual gift of 7 mini bottles. Very easy to cut and easy to assemble. Add your text (congratulations or logo) to the lid. The lid can also be made from clear acrylic.

You will need a piece of rope for the handle. The holes for the rope can be changed to the desired diameter in any vector editor. By default this is 8mm.

For bottles up to 120mm/4.72" high and up to 40mm/1.57" diameter/width.

7 cells
length: 126mm / 4.72" (internal)
width: 40mm / 1.57" (internal)
height: 40mm / 1.57" (internal)

box size (for 4mm):
length: 142mm / 3.58" (internal)
width: 62.4mm / 2.45" (internal)
height: 318mm / 12.51" (external)

kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 1/4inch (6.35mm)
digital product includes: CDR, SVG, PDF, AI

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
