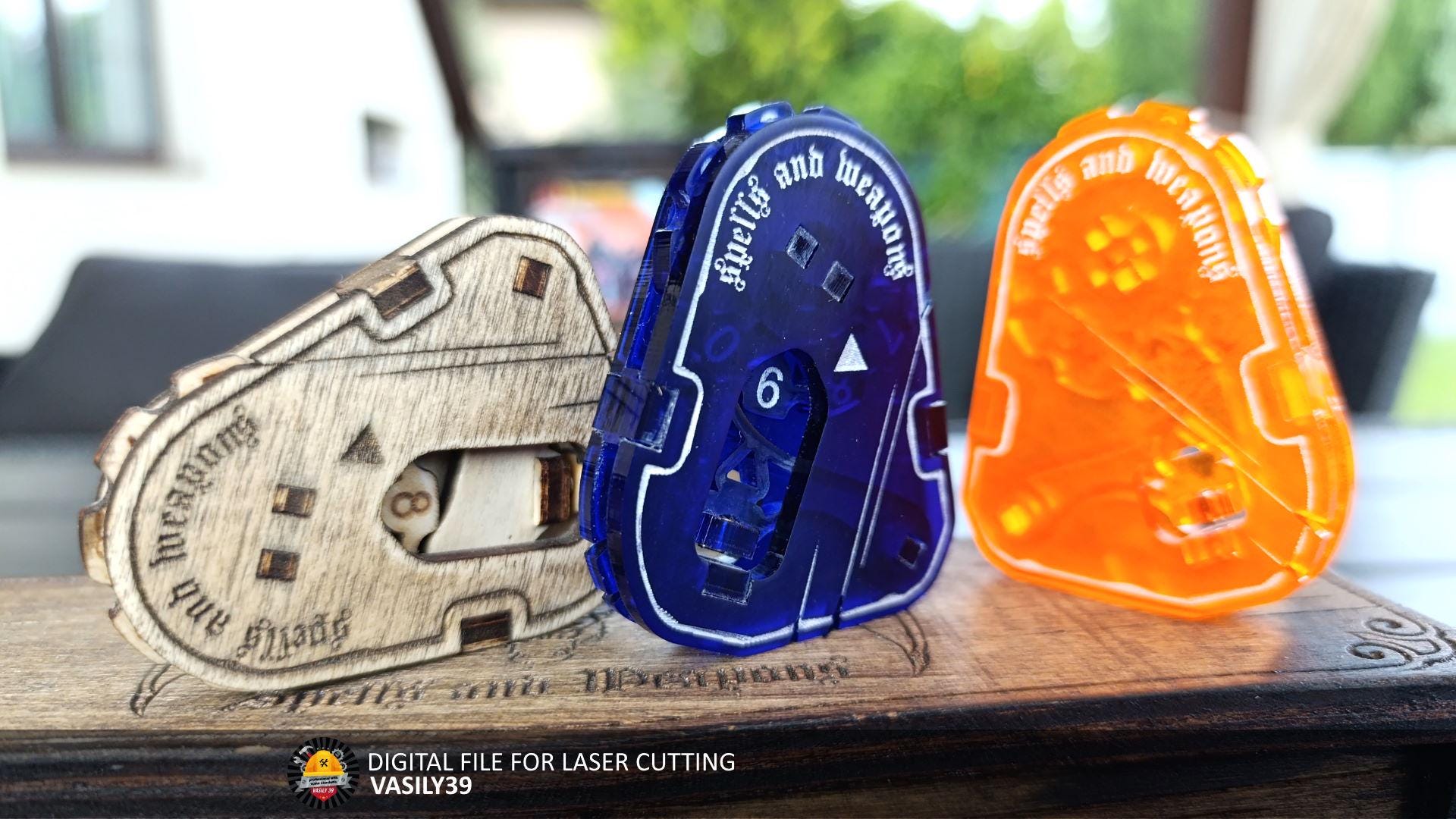

Hp/Life Counter Laser Cut Files: SVG, PDF, CDR (Digital Product)

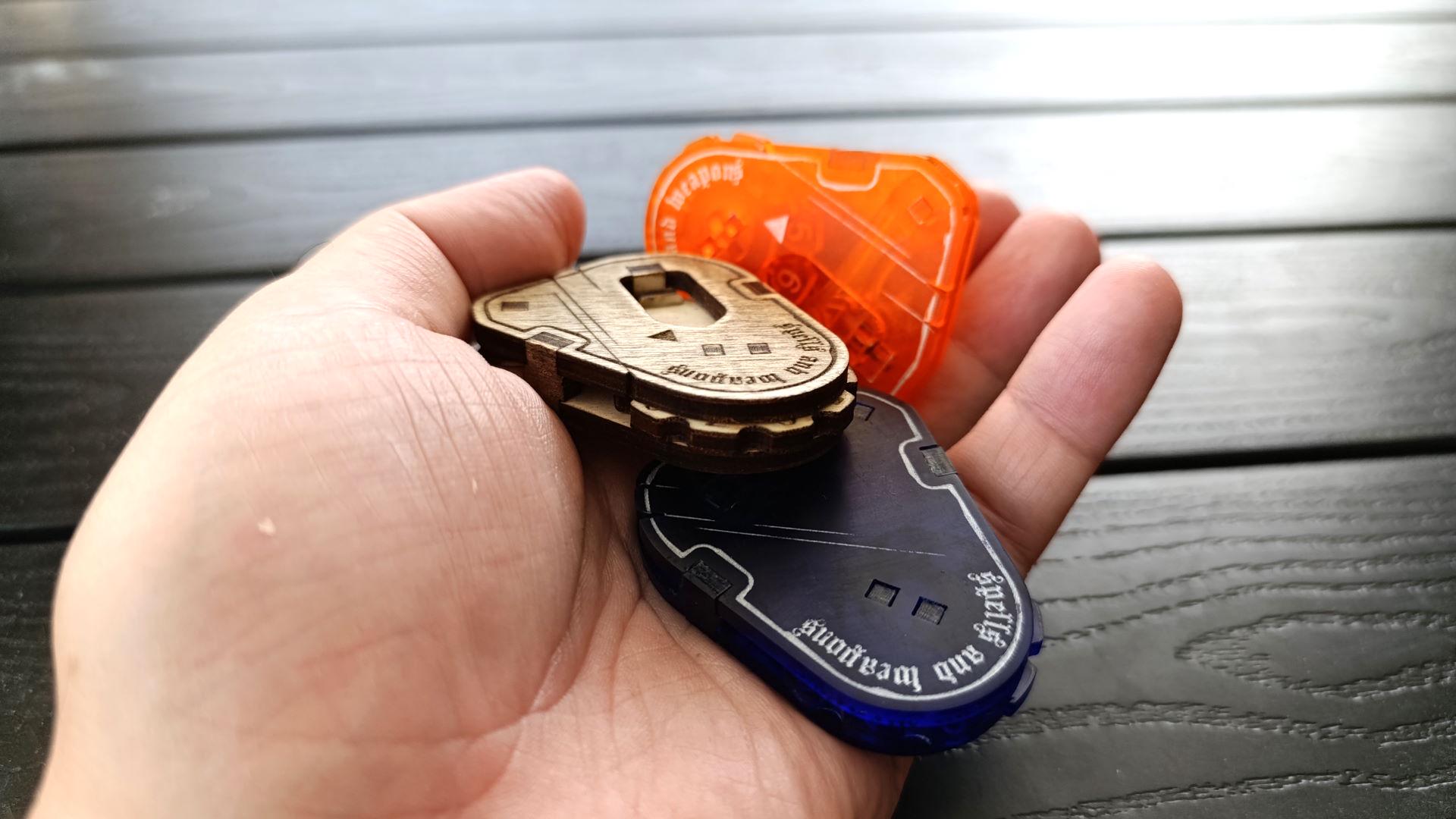

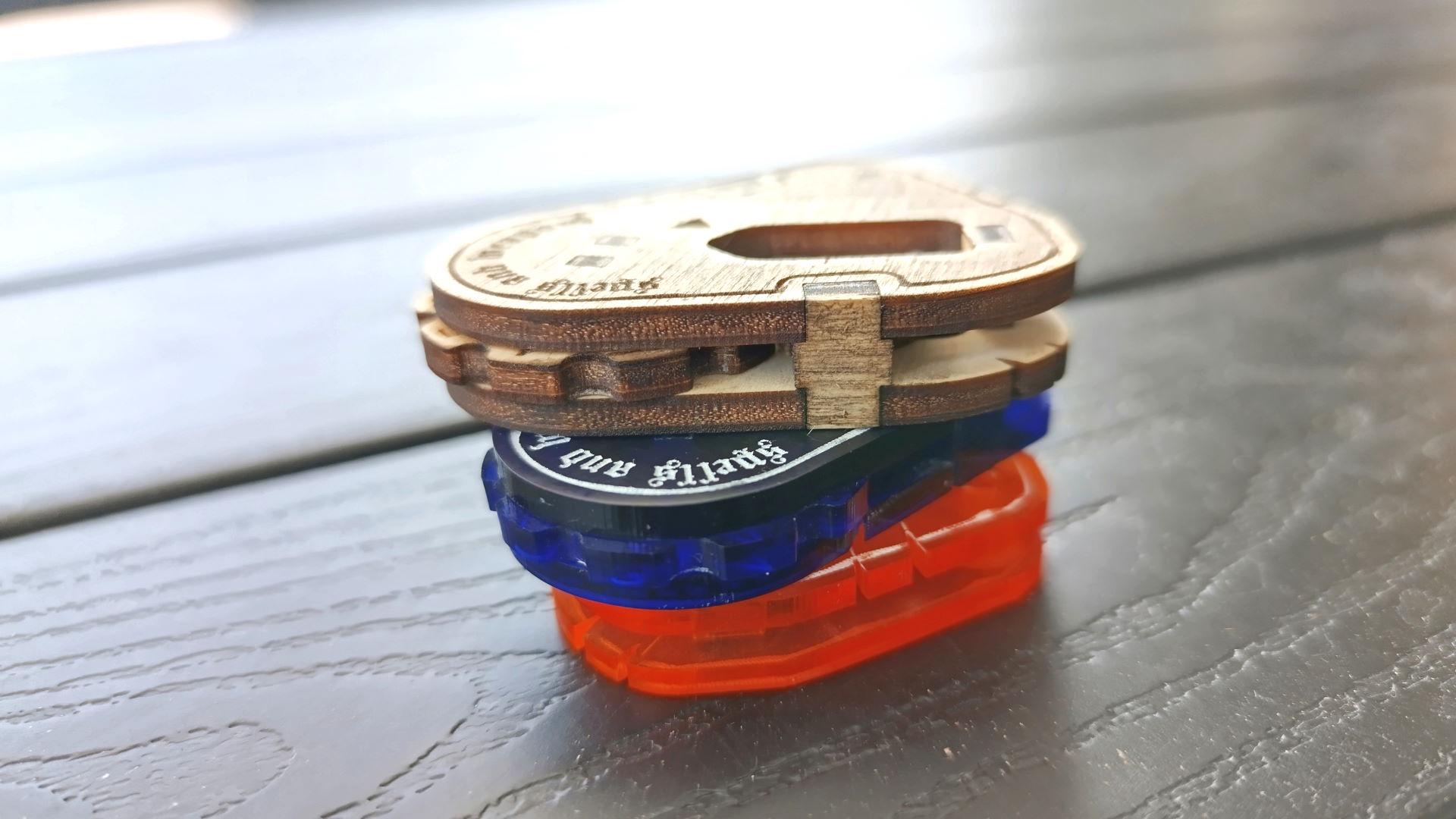

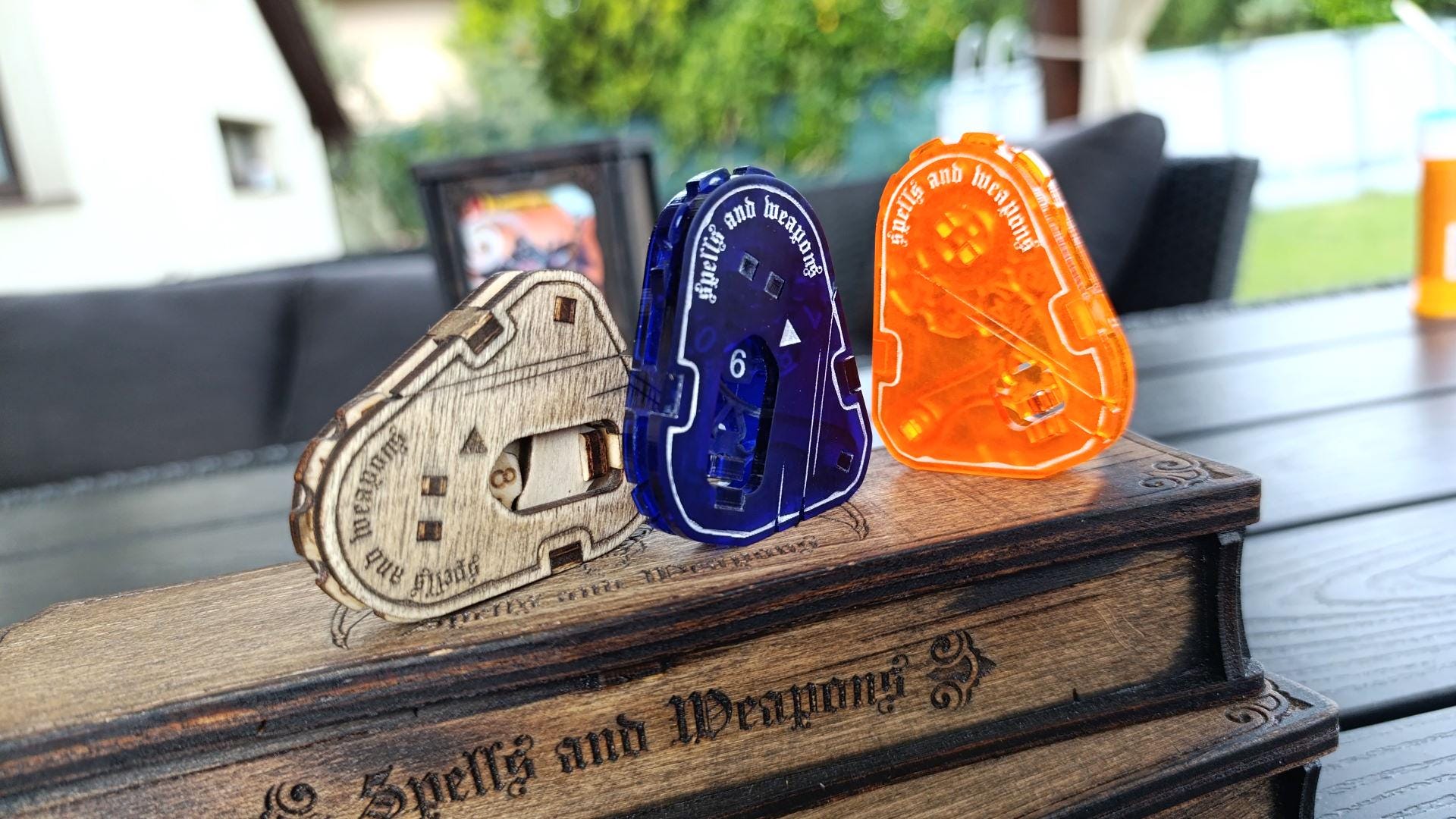

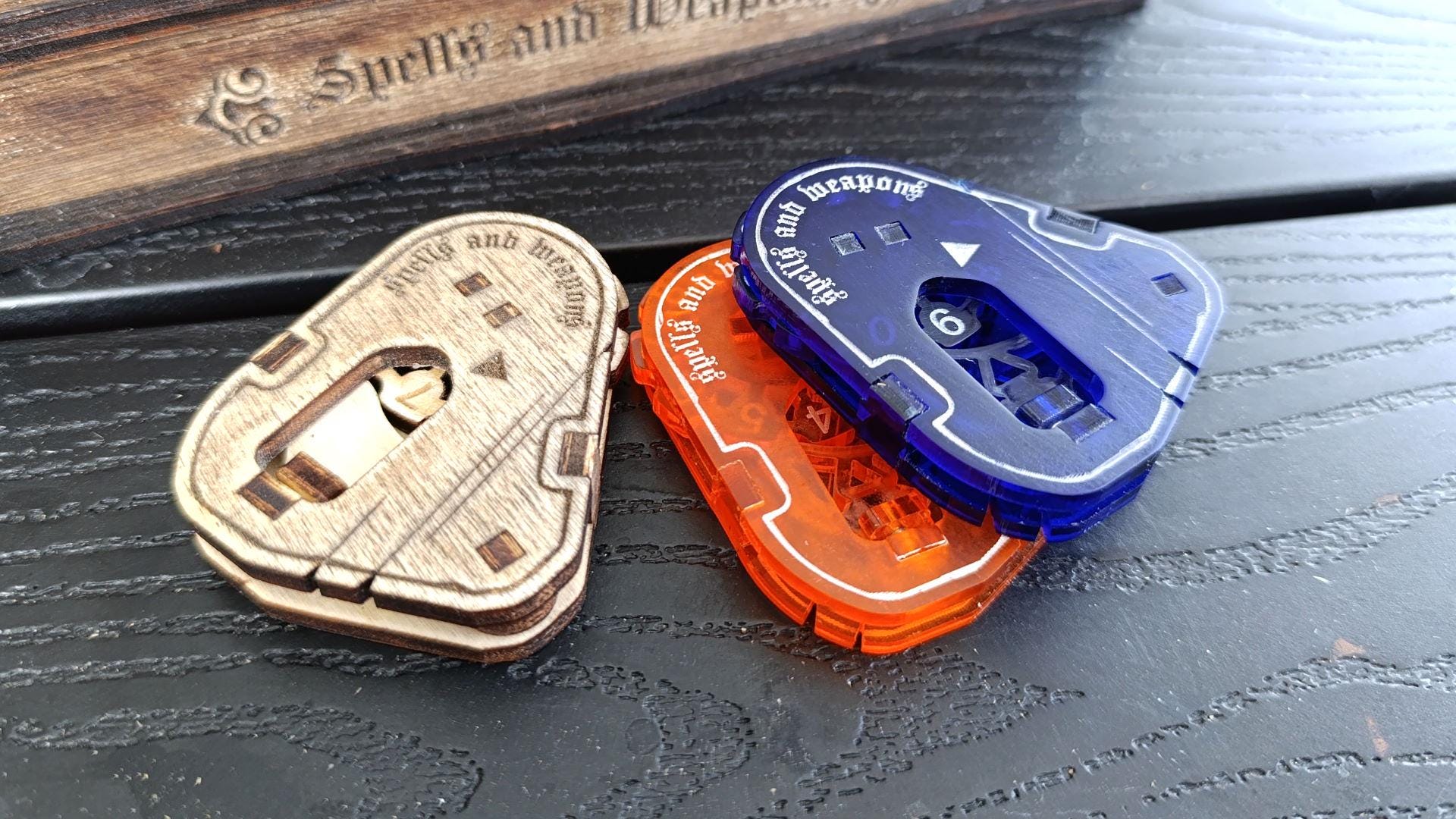

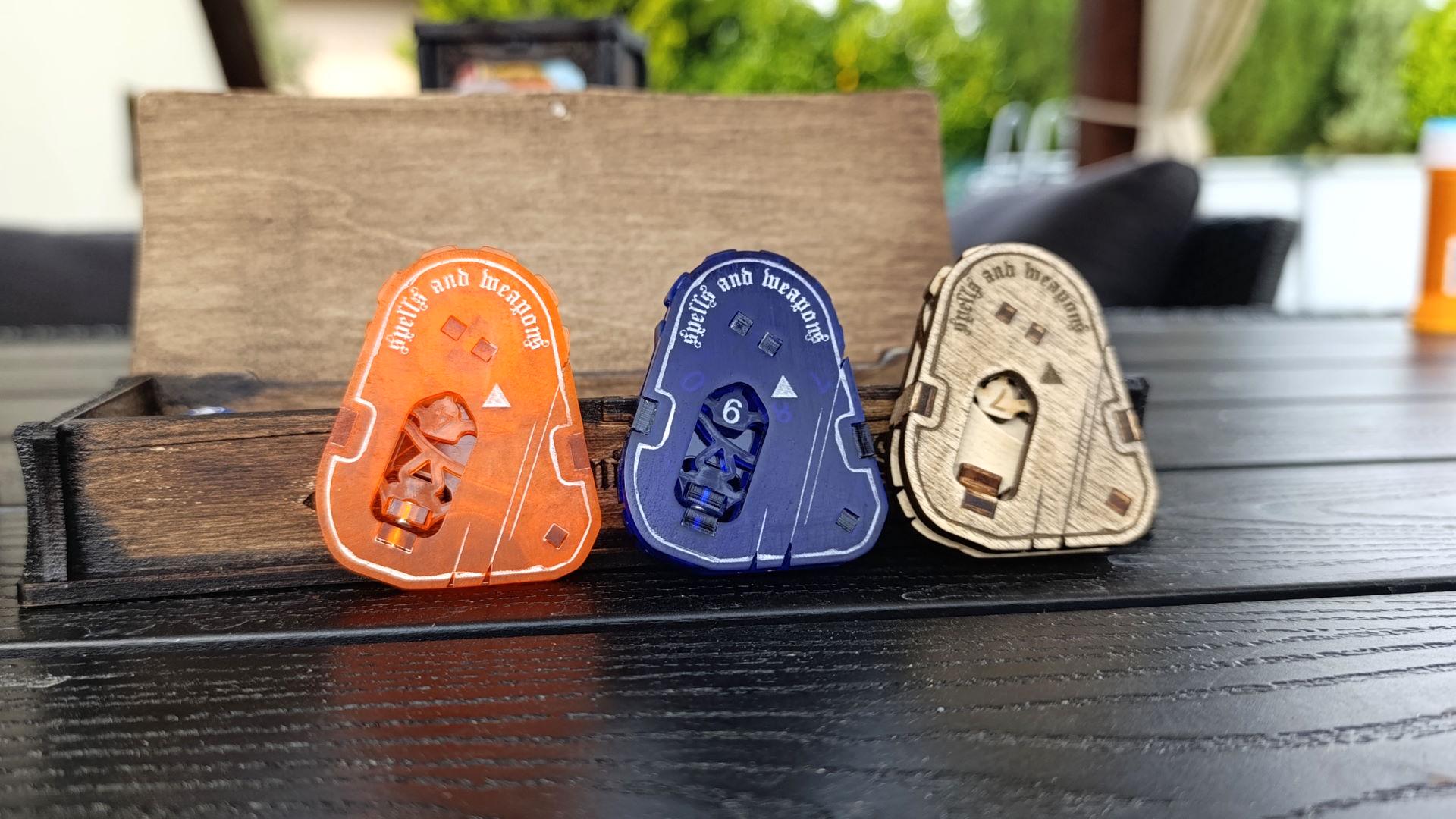

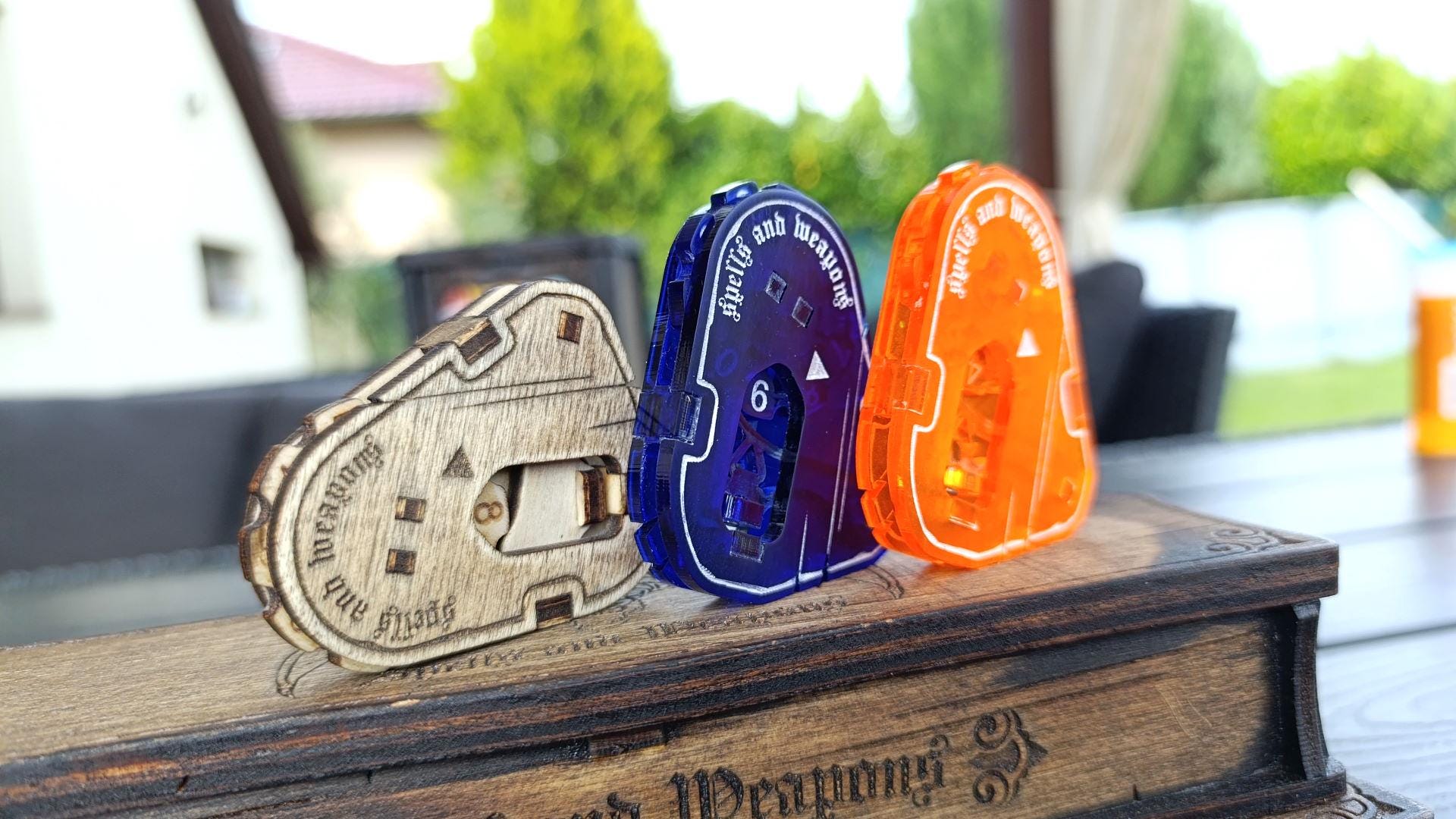

Hp/Life counter 00215. Digital files for manufacturing products on a CNC laser machine. Single digit counter. Magnetic holder. Made in 5 minutes. Very little material is required. For the wooden version I recommend using wax or paraffin – just rub a little on the parts that are rubbing. And of course, wood glue, it will be stronger. For their acrylic version, use the files from the kerf_0 folder, since acrylic is a hard material and this version will be easier to assemble. I used epoxy glue and it seems to hold up well.

!For moving parts, use wax.

length: 48mm / 1.9" (external)
width: 59mm / 2.32" (external)
height: 12mm / 0.47" (external)

For a magnetic lock, you need 2 magnets with a diameter of 3mm/0.12".

kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 3.8mm, 4mm
digital product includes: CDR, SVG, PDF, AI

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
