Laser Cut Box SVG: CNC Card & Dice Organizer (Digital Product)

Box 00234. Digital files for manufacturing products on a CNC laser machine (co2 or diode laser).

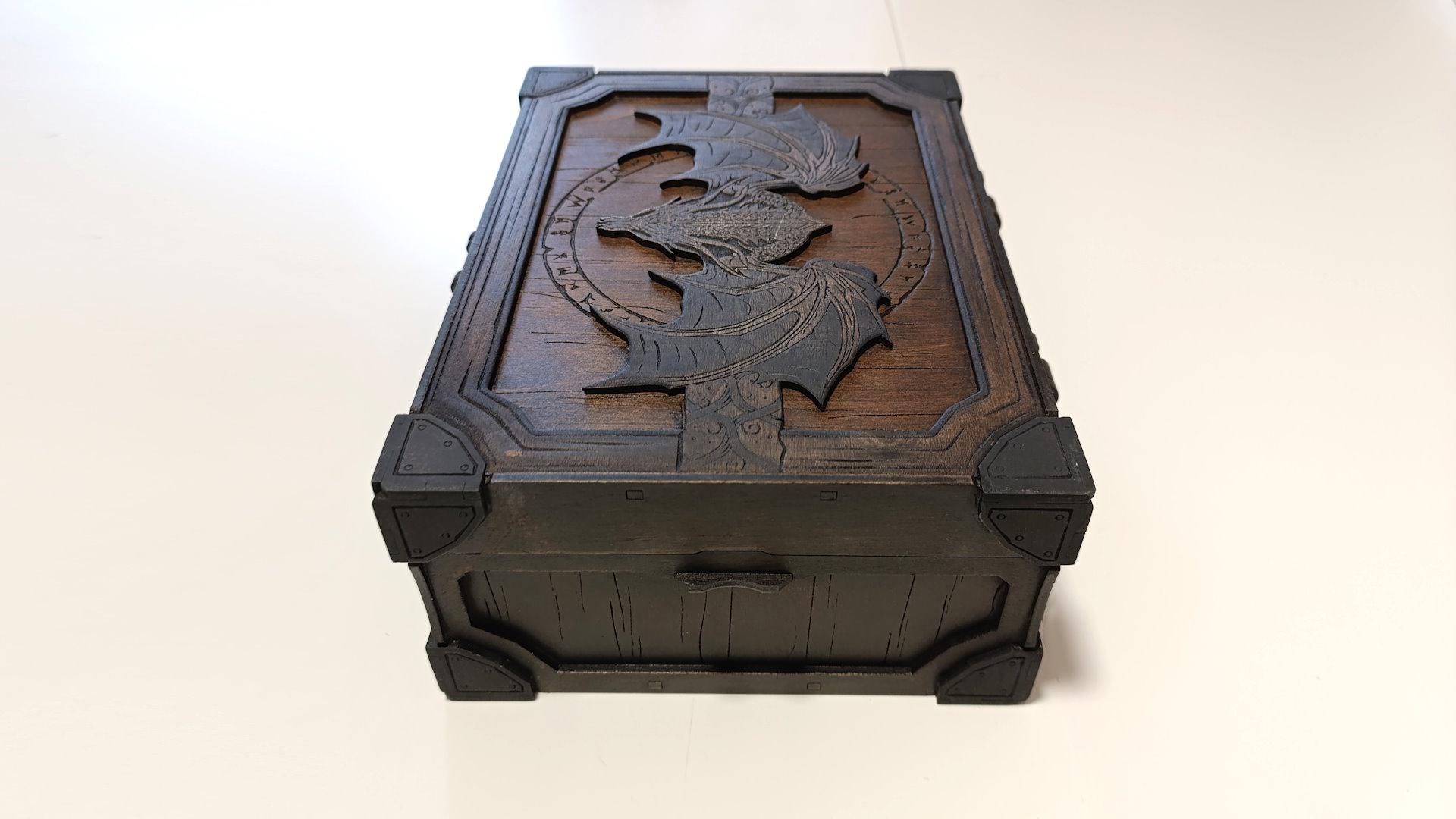

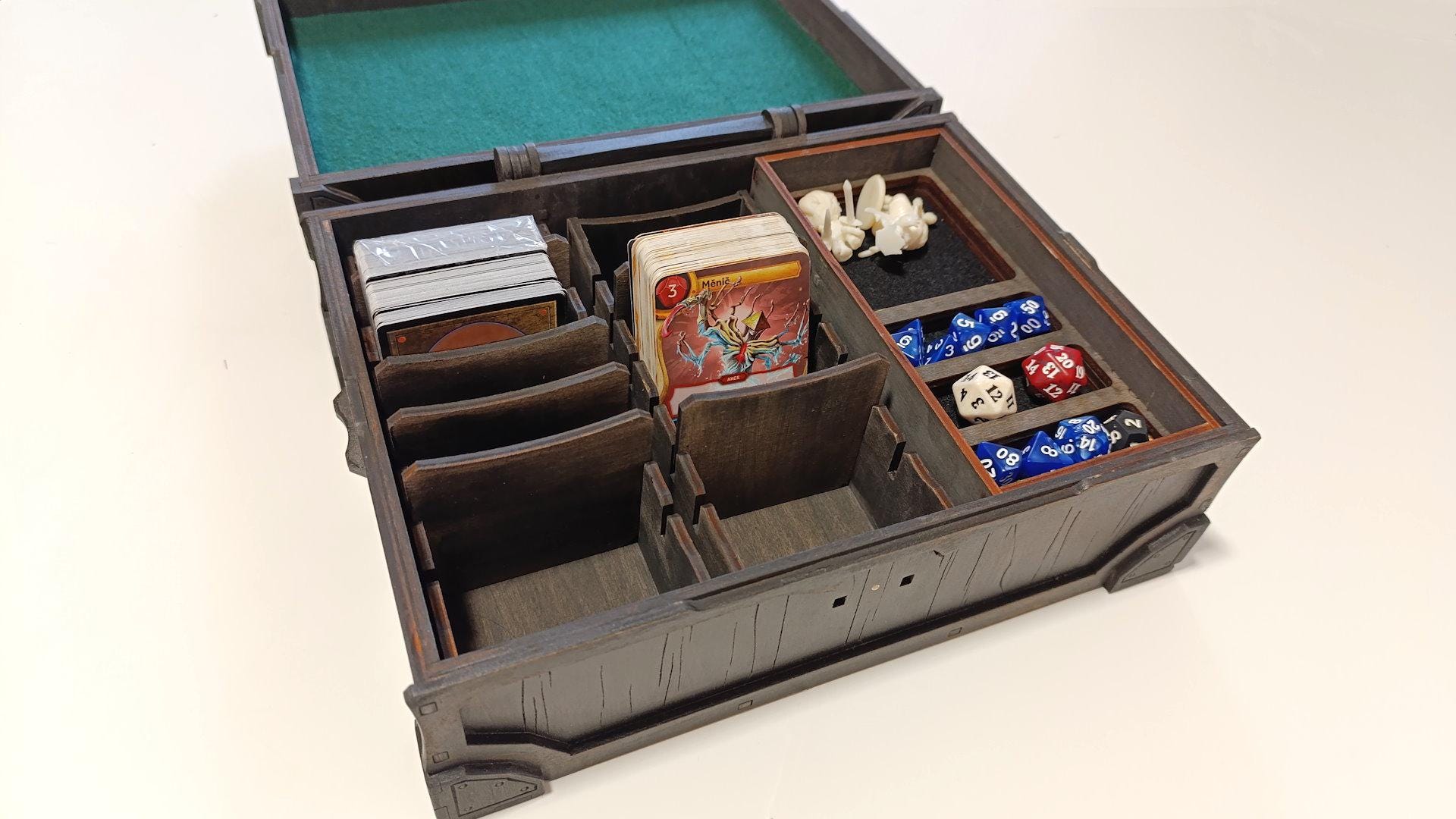

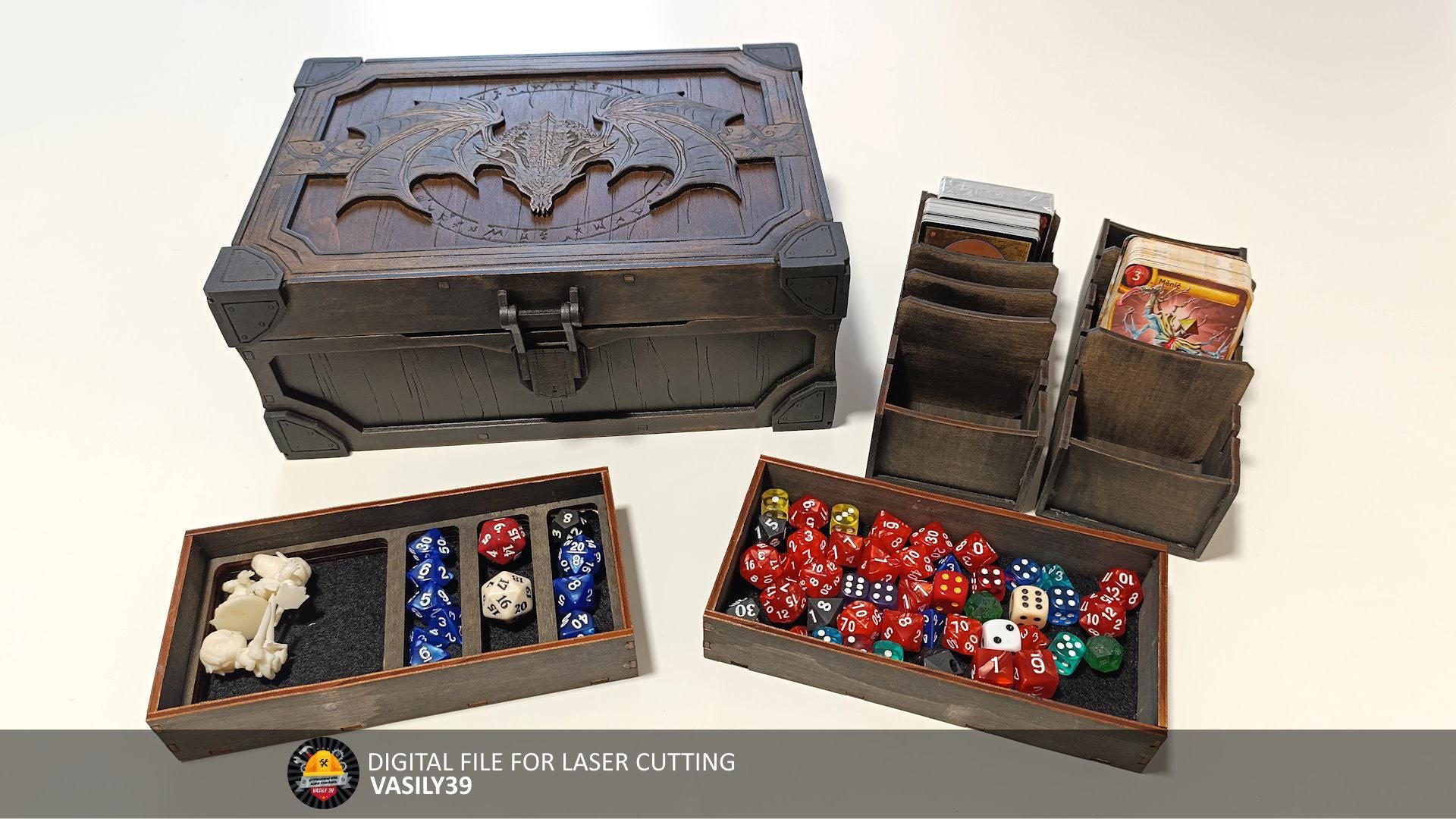

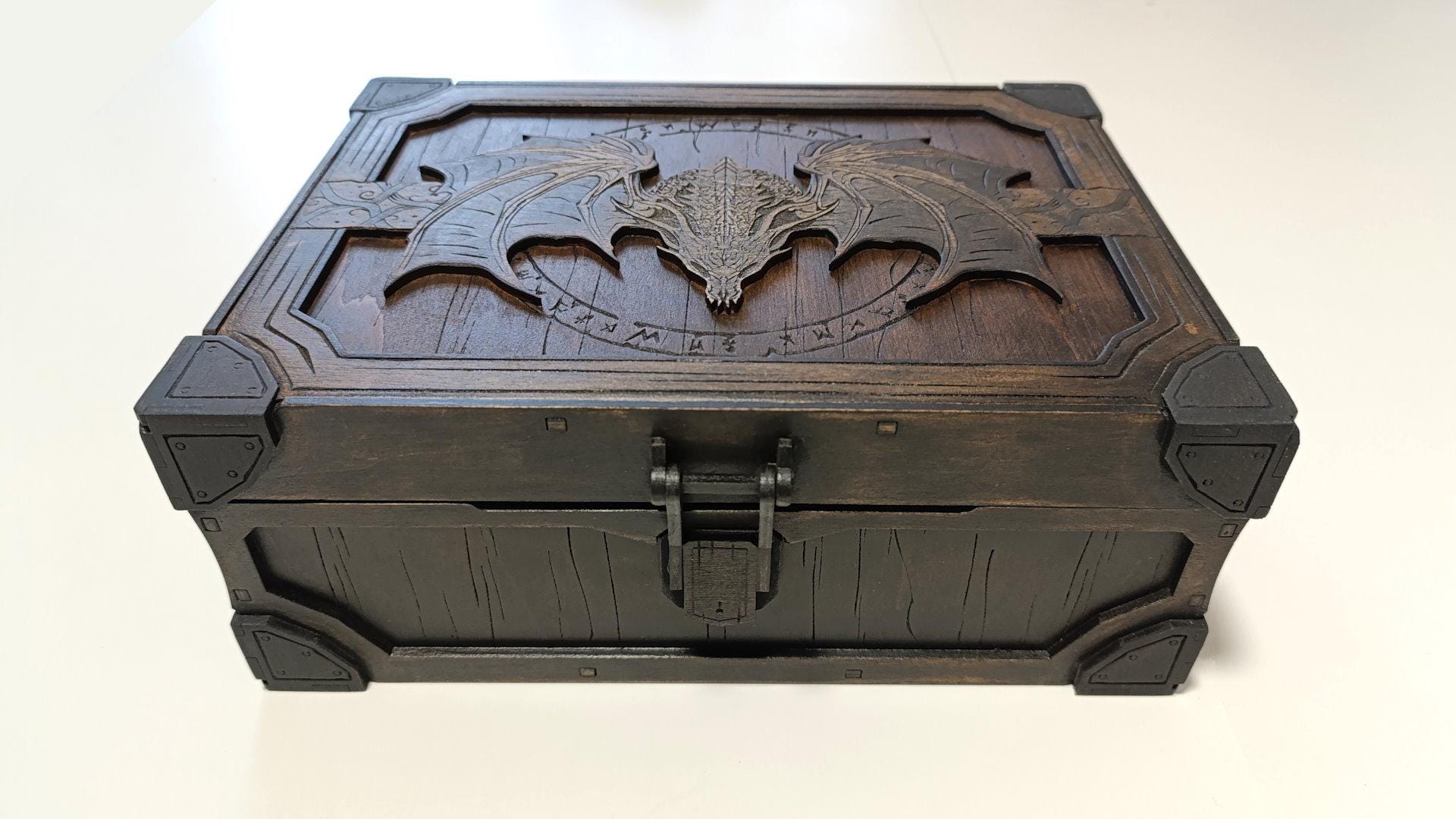

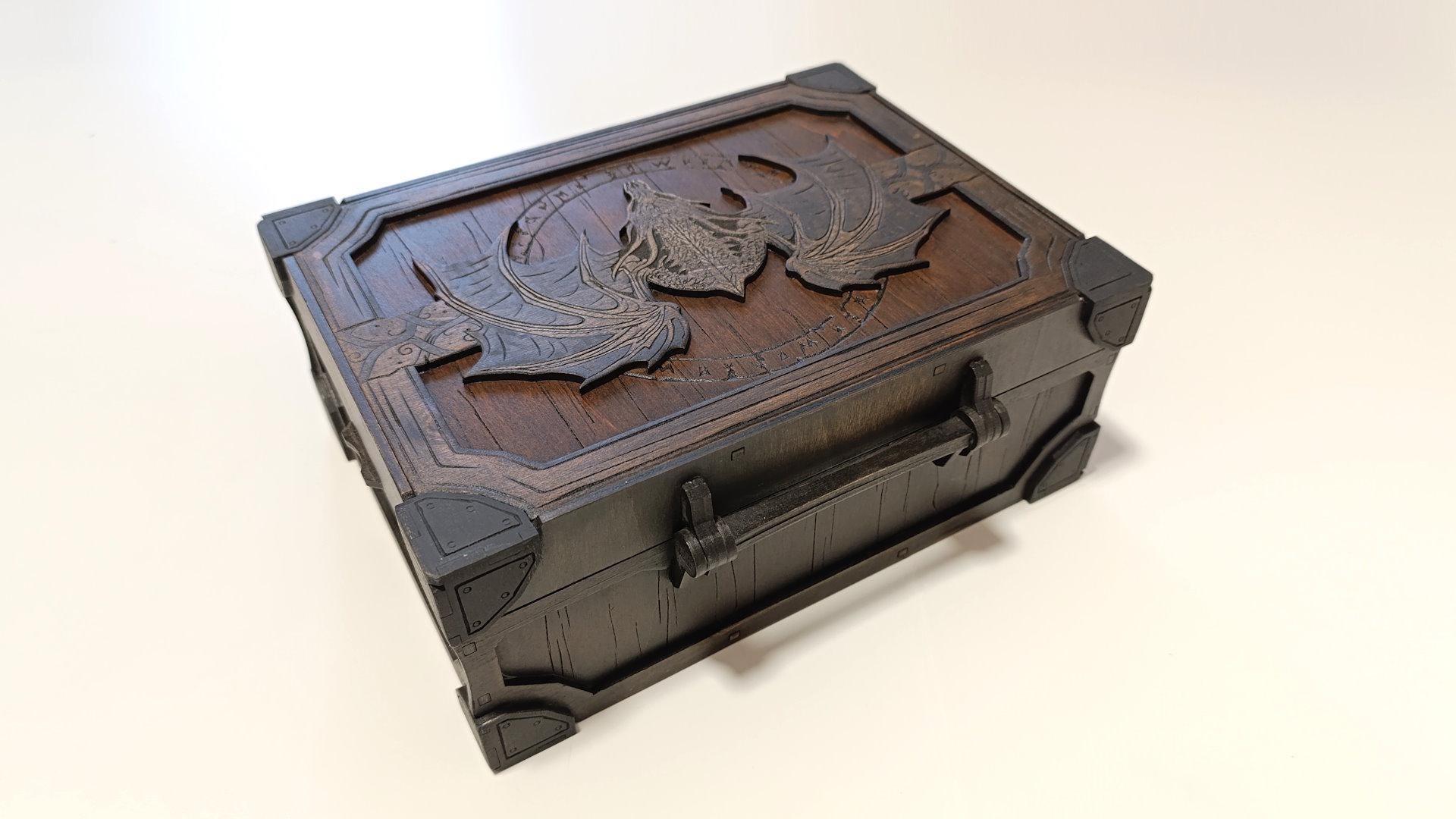

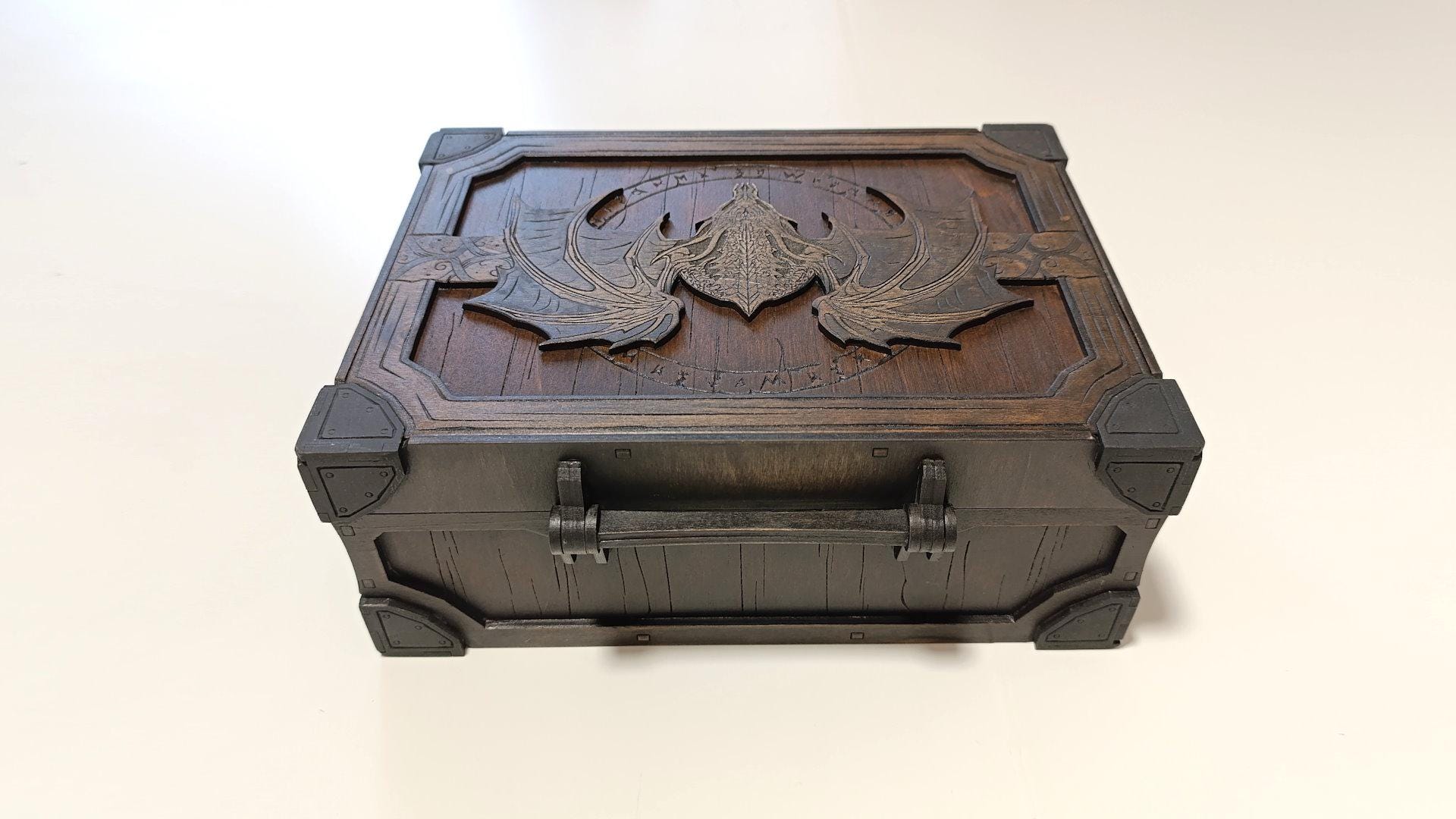

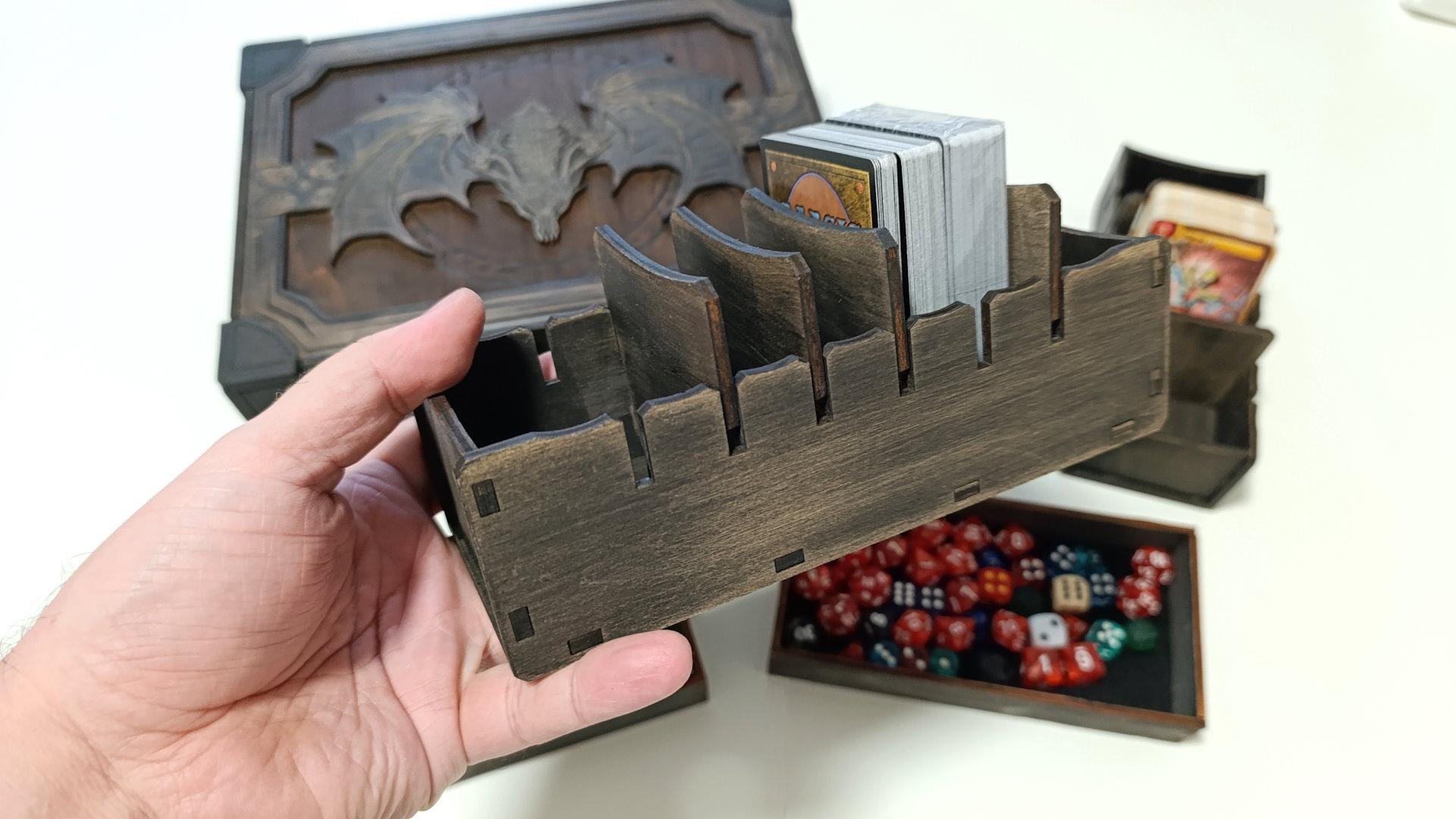

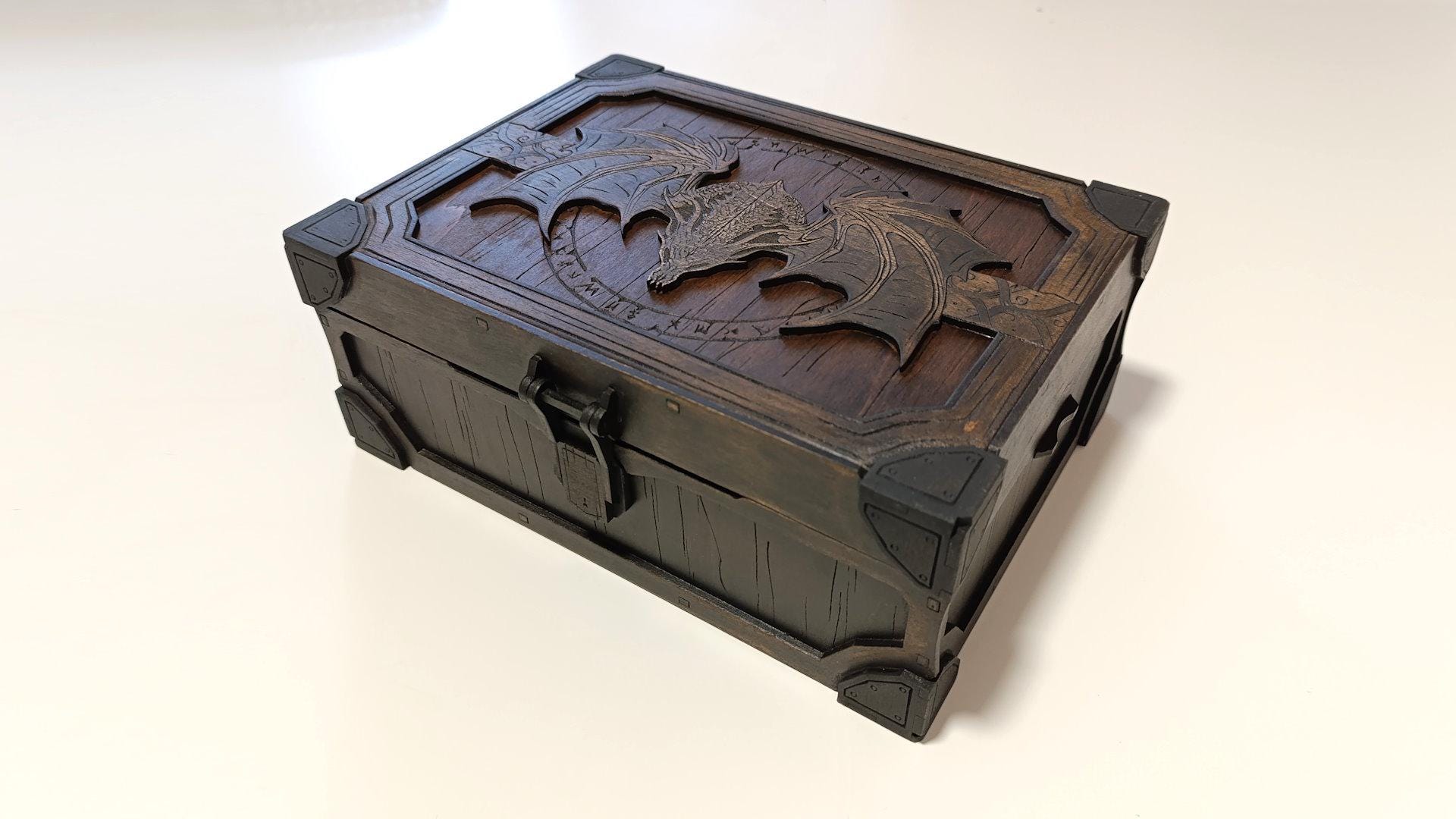

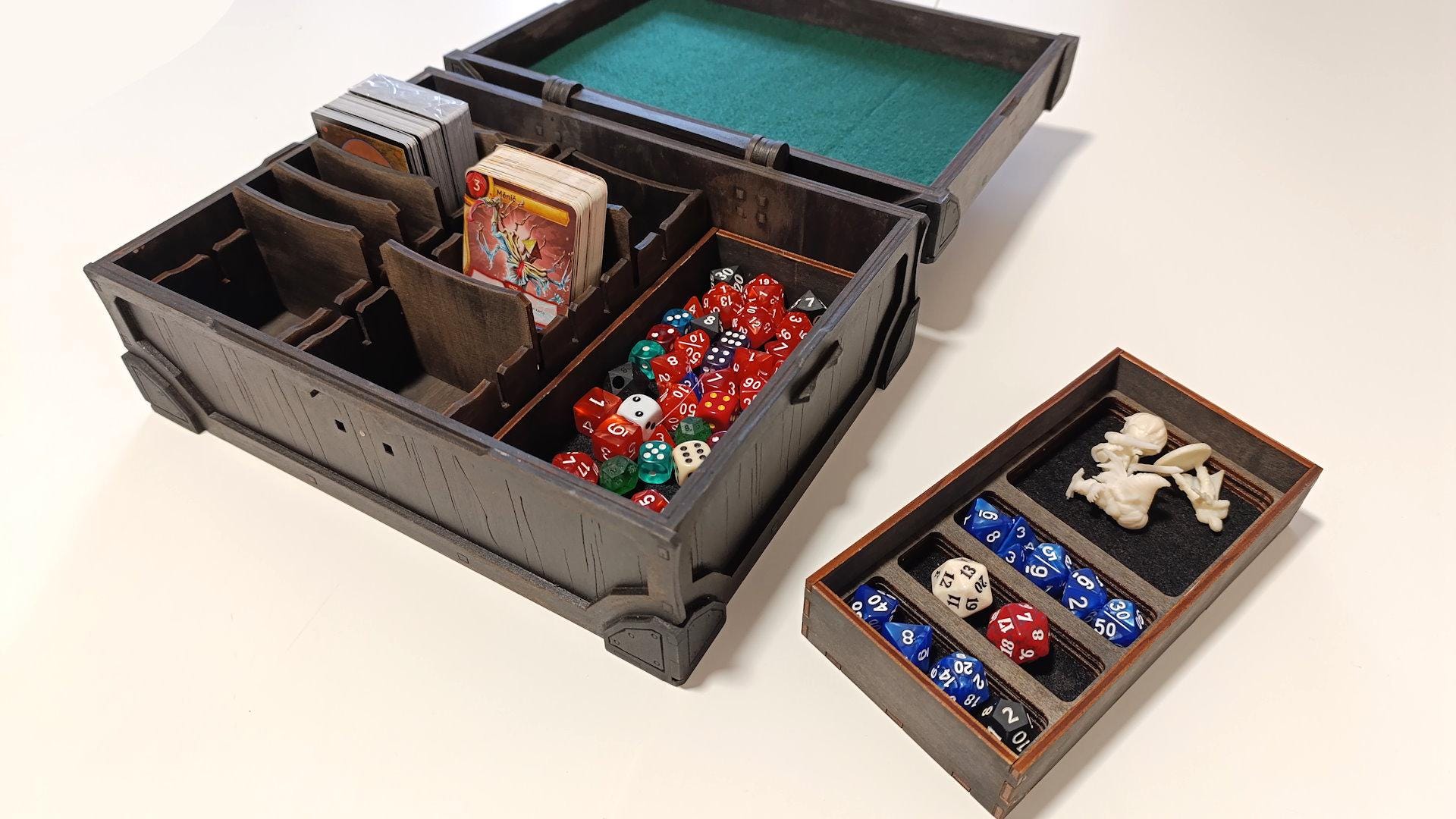

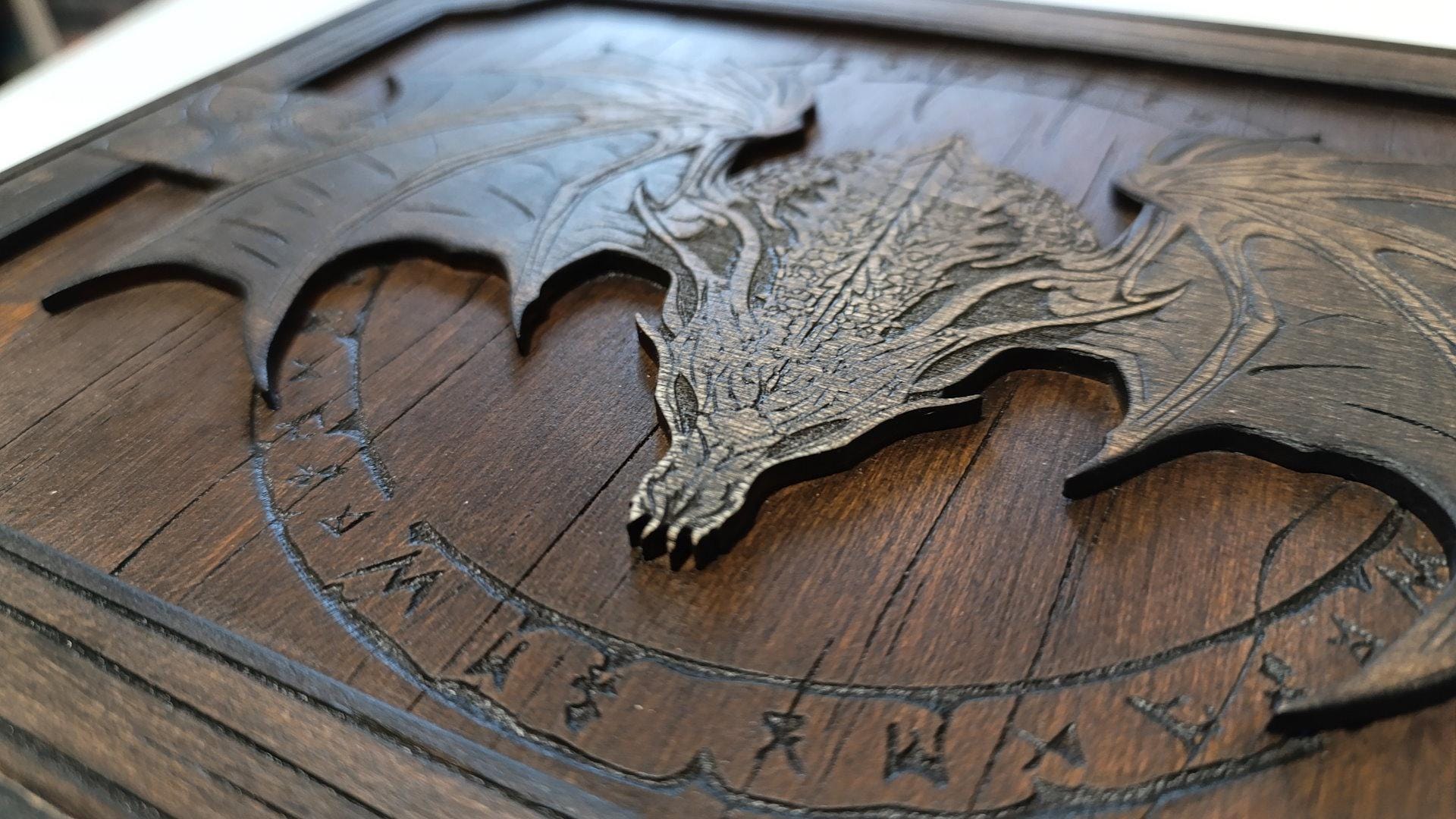

A large, strong, beautiful box. The interior is smooth, without protrusions. There are 2 handles on the sides for easy movement. Magnetic lock. 100% made on a laser machine (except for 2 magnets). Several options for boxes for internal filling: a card organizer, a dice organizer. Suitable for a large number of cards in a double cover. The set also includes a version without engraving.

The entire layout is made for a working field of 500x300mm / 20×12". The size of the largest part is 300 by 215mm.

length: 280mm / 11.02" (internal)
width: 200mm / 7.87" (internal)
height: 100mm / 3.93" (internal)

For a magnetic lock, you need 2 magnets with a diameter of 3mm/0.12". The thickness of the magnet must not exceed the thickness of the material. The diameter of the magnets can be corrected in any vector editor (for example, free Inkscape).

kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 3.8mm, 4mm, 4.5mm, 5mm
digital product includes: CDR, SVG, PDF, AI

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
