Laser Cut Box SVG: CNC Plywood File with Magnetic Closure (Digital Download)

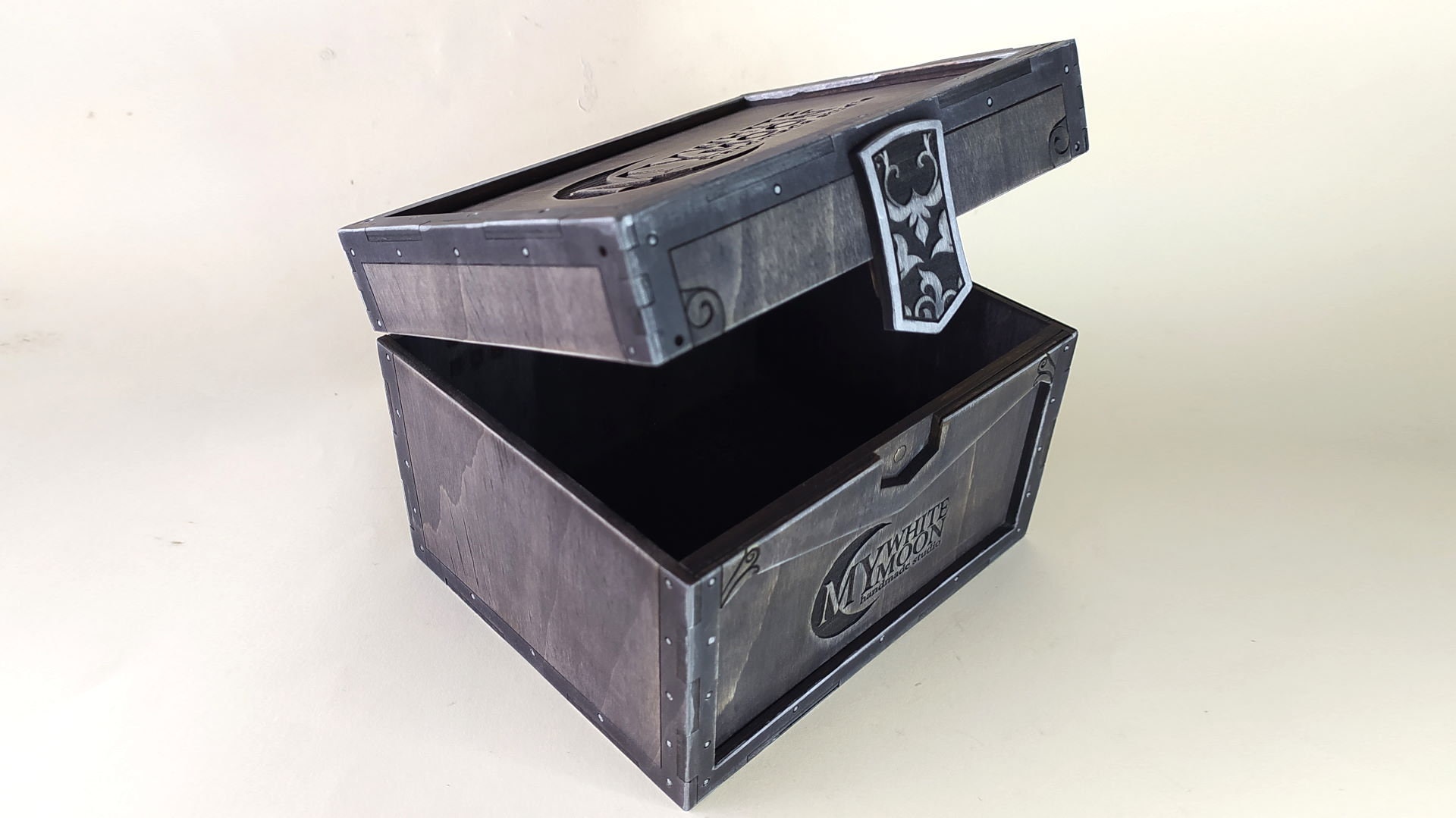

Box 00121. Digital files for manufacturing products on a CNC laser machine. This is a very simple box with a magnetic closure. Everything is 100% laser cut. You only need 2 magnets with a diameter of 5mm – optional. Almost all engraving is done with a fast cut at low power. It takes about 10 minutes to make a box.

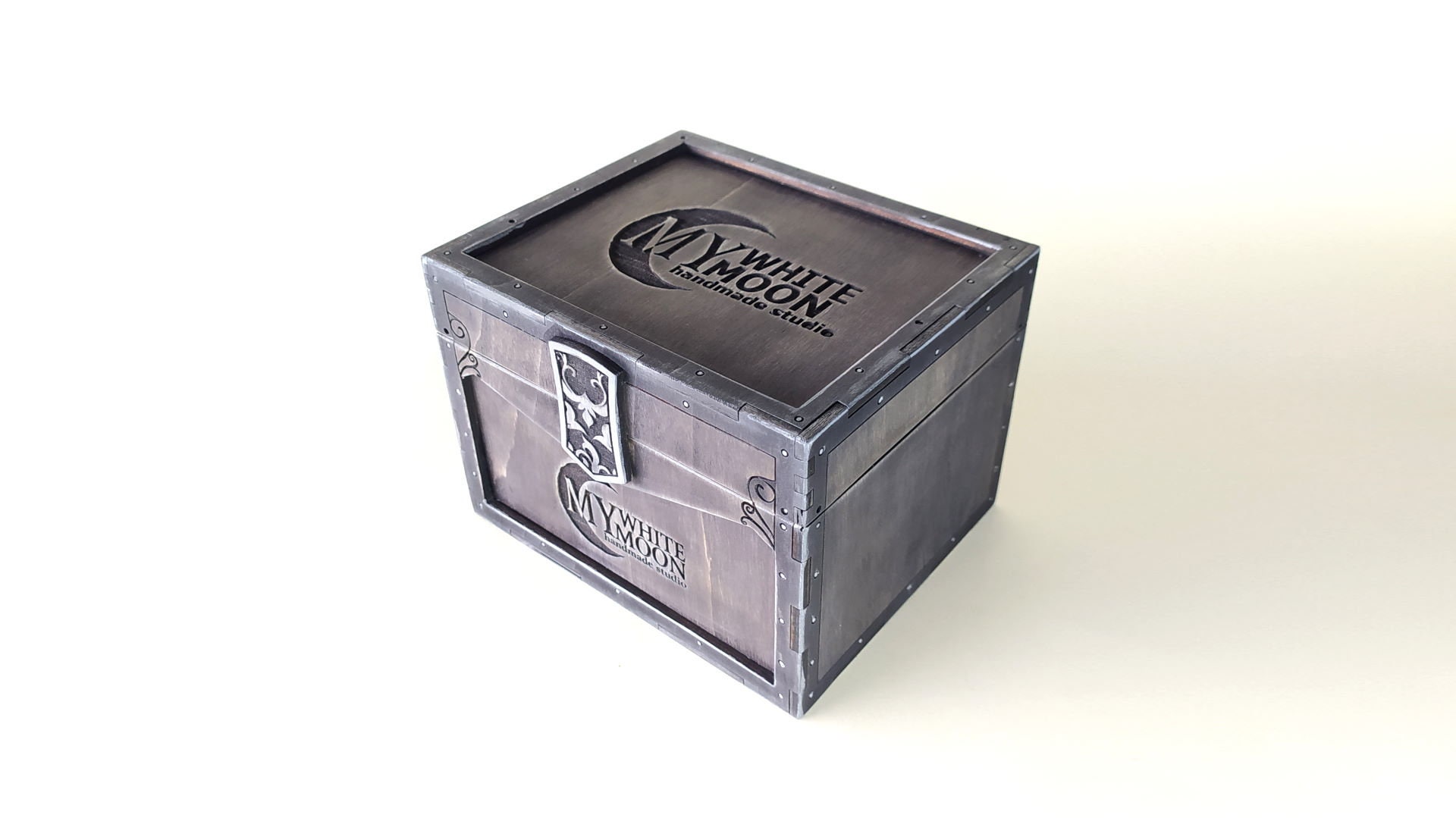

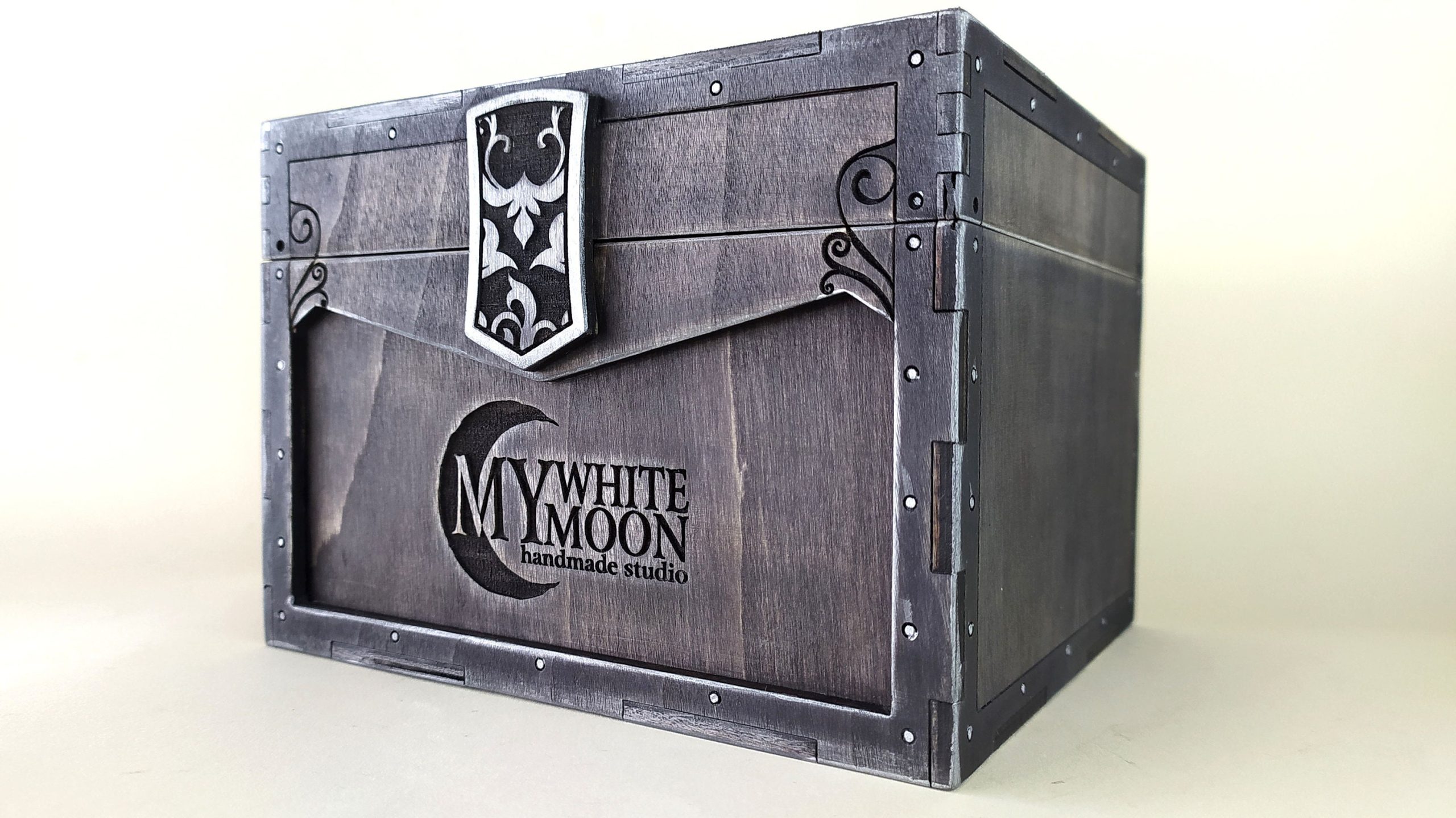

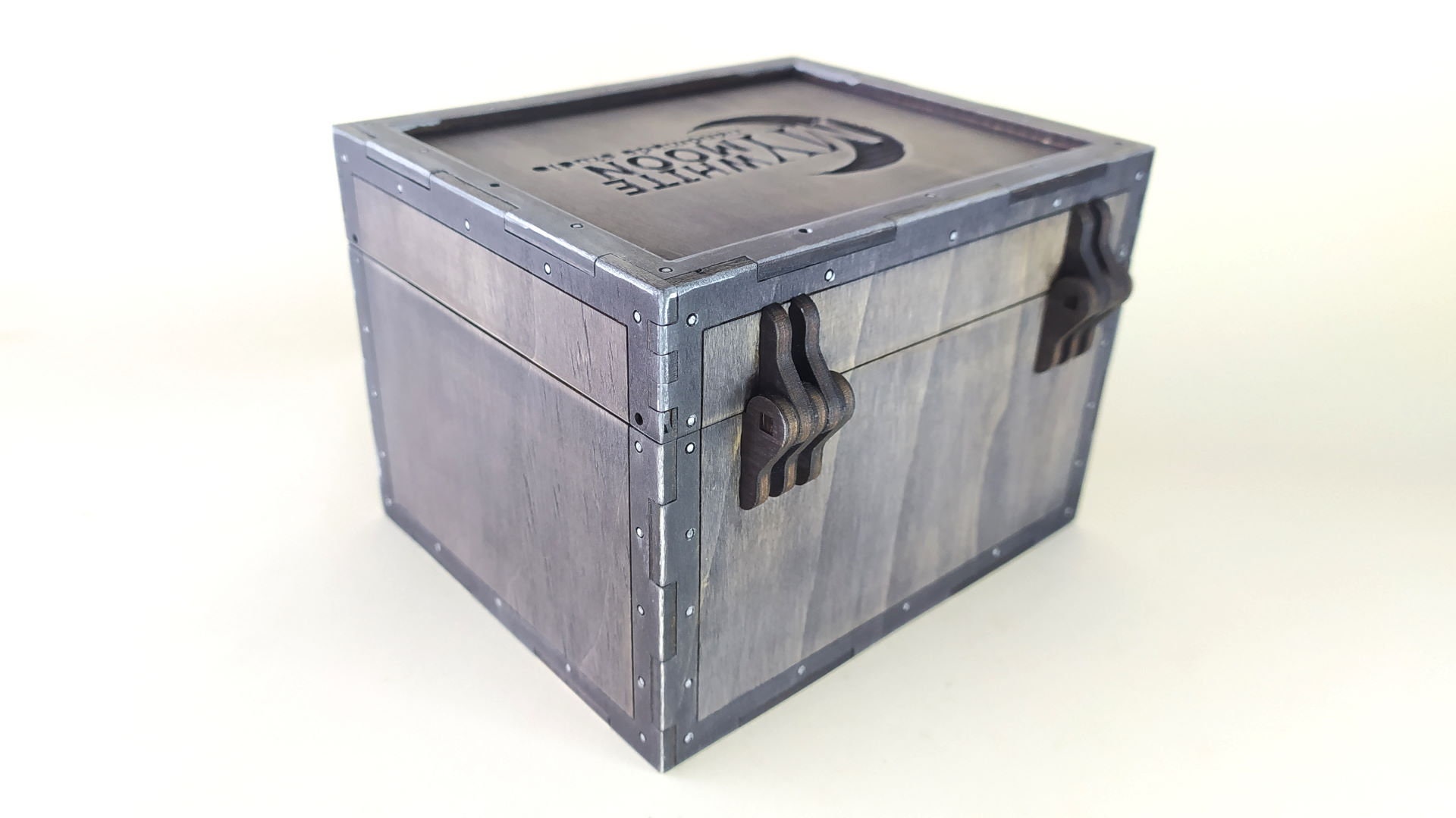

The logo that is printed/engraved on the box is not for sale – this is to demonstrate how the finished box will look like, it is not in the file. Adding your logo or inscription is very easy in any vector editor.

How I painted:
1. I paint all the details with black stain.
2. Sanding until gray.
3. The second layer of black stain on the corners.
4. A very thin layer of rosewood stain (apply with a sponge)

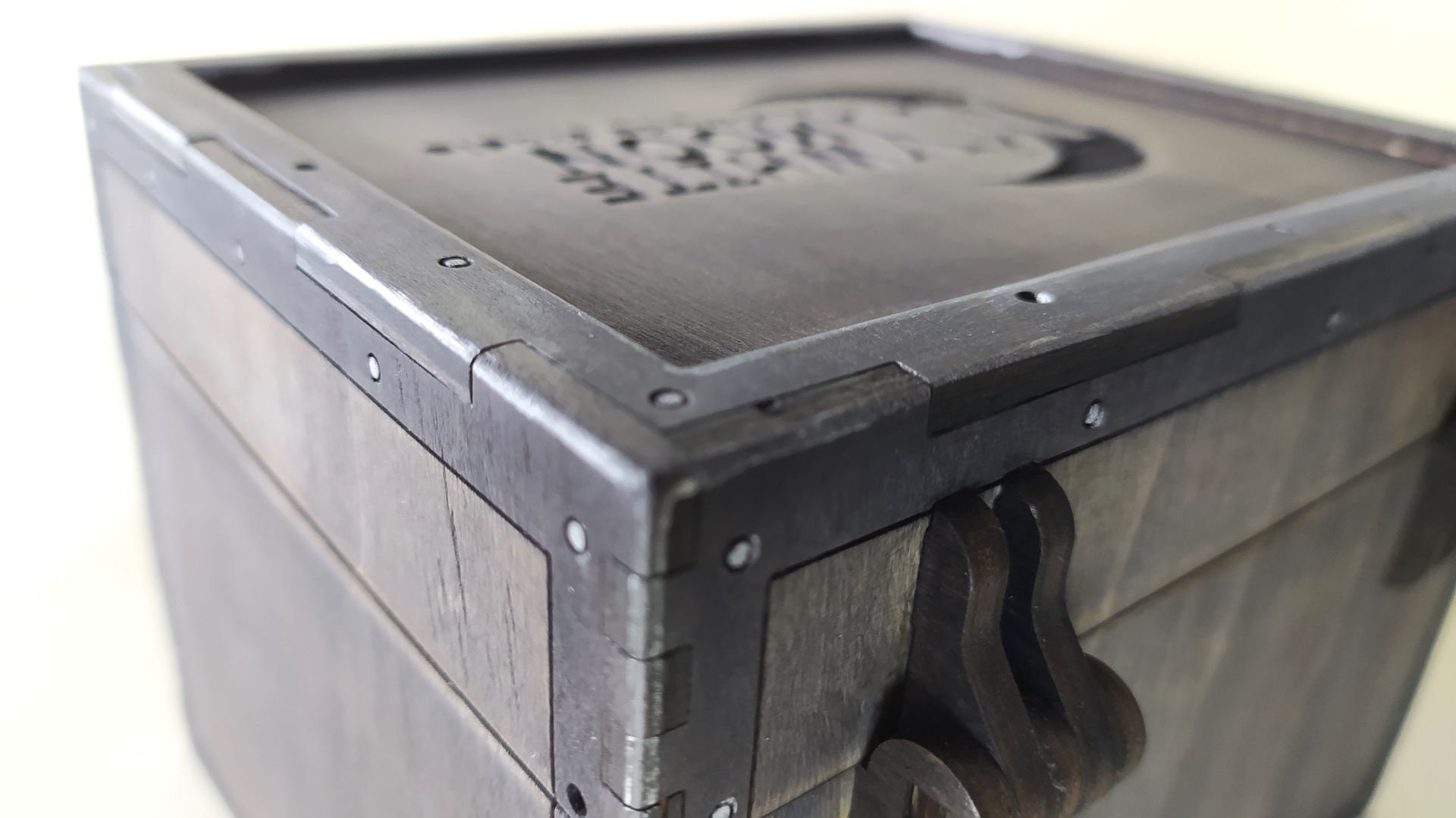

5. Round dots (imitation of bolts) are painted with silver paint.
6. The final layer is a clear acrylic lacquer.

length: 150mm / 5.90" (internal)
width: 120mm / 4.72" (internal)
height: 80mm / 3.14" (internal) + lid 30mm / 1.18"
for a magnetic lock (optional): magnets diameter 5mm (2 rounded magnets) The magnets can be resized in any vector editor.

RGB(255,0,0) – RED – cutting
RGB (0,0,0) – BLACK – engraving
RGB (0,0,255) – BLUE – lowpower cutting (fast engraving)

kerf (cut compensation): 0.15mm and 0
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm
digital product includes: CDR, SVG, PDF, AI

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
