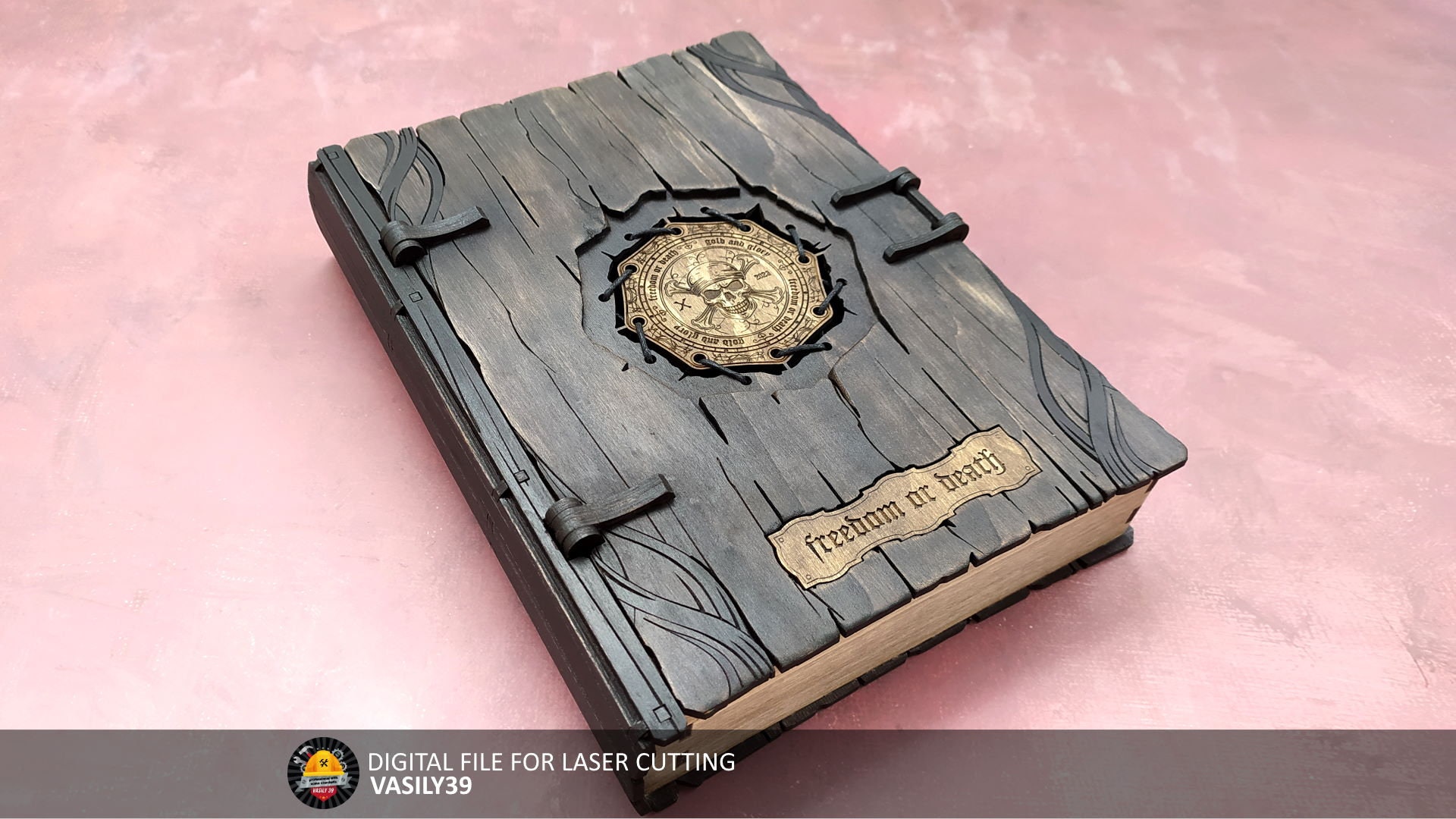

Pirate Book Box: Laser Cut Files, CNC Router Ready (Digital Product)

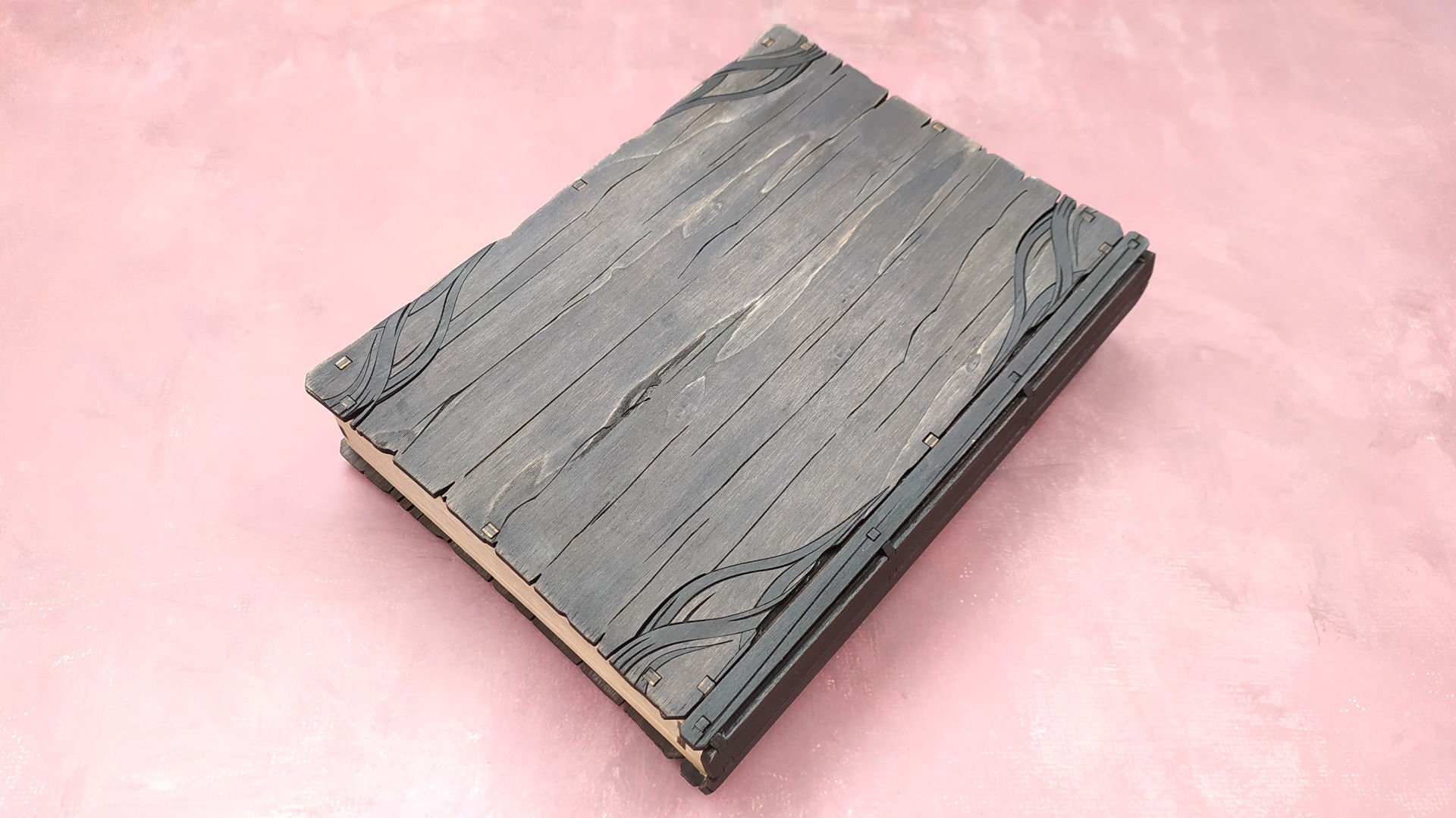

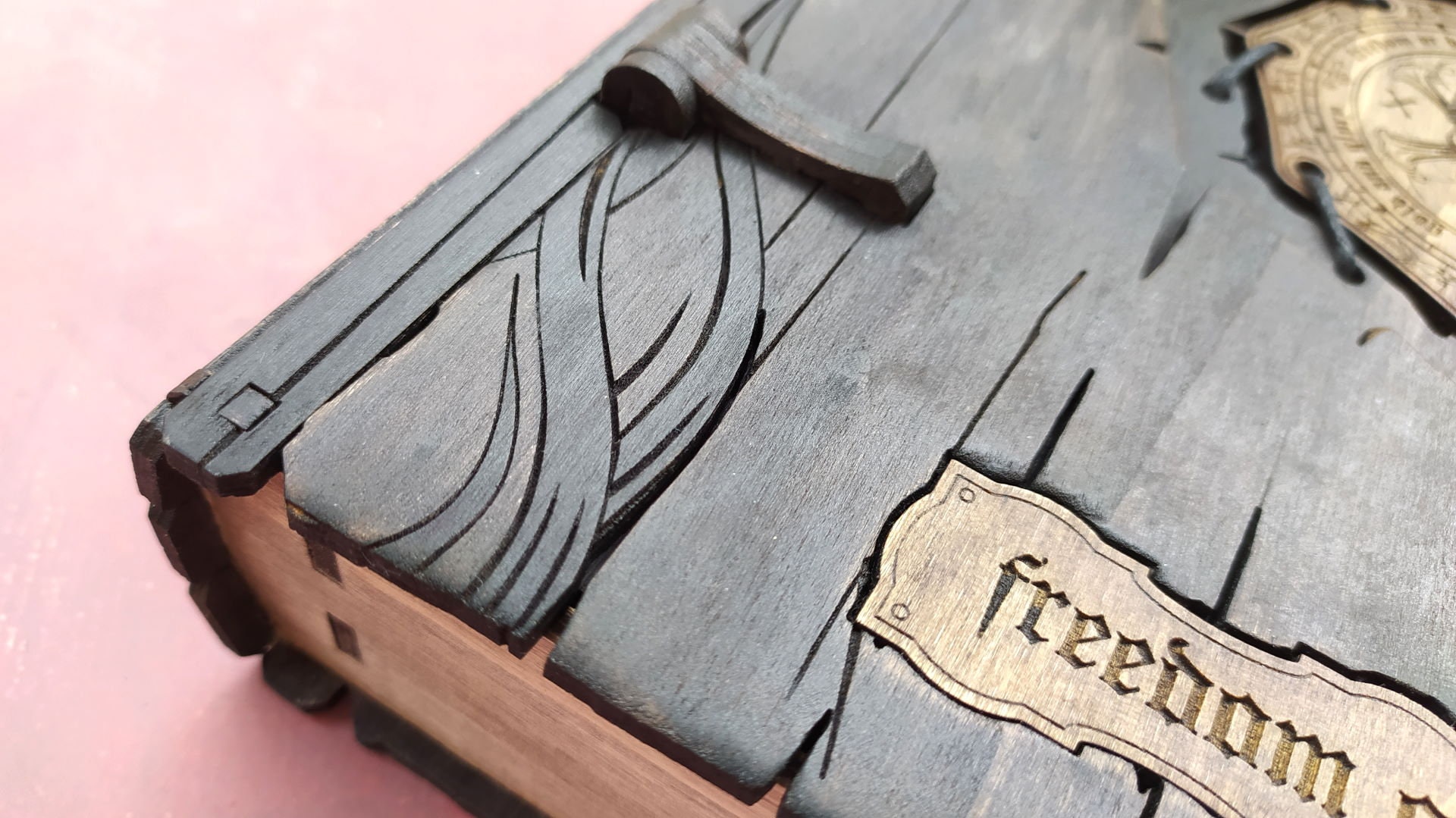

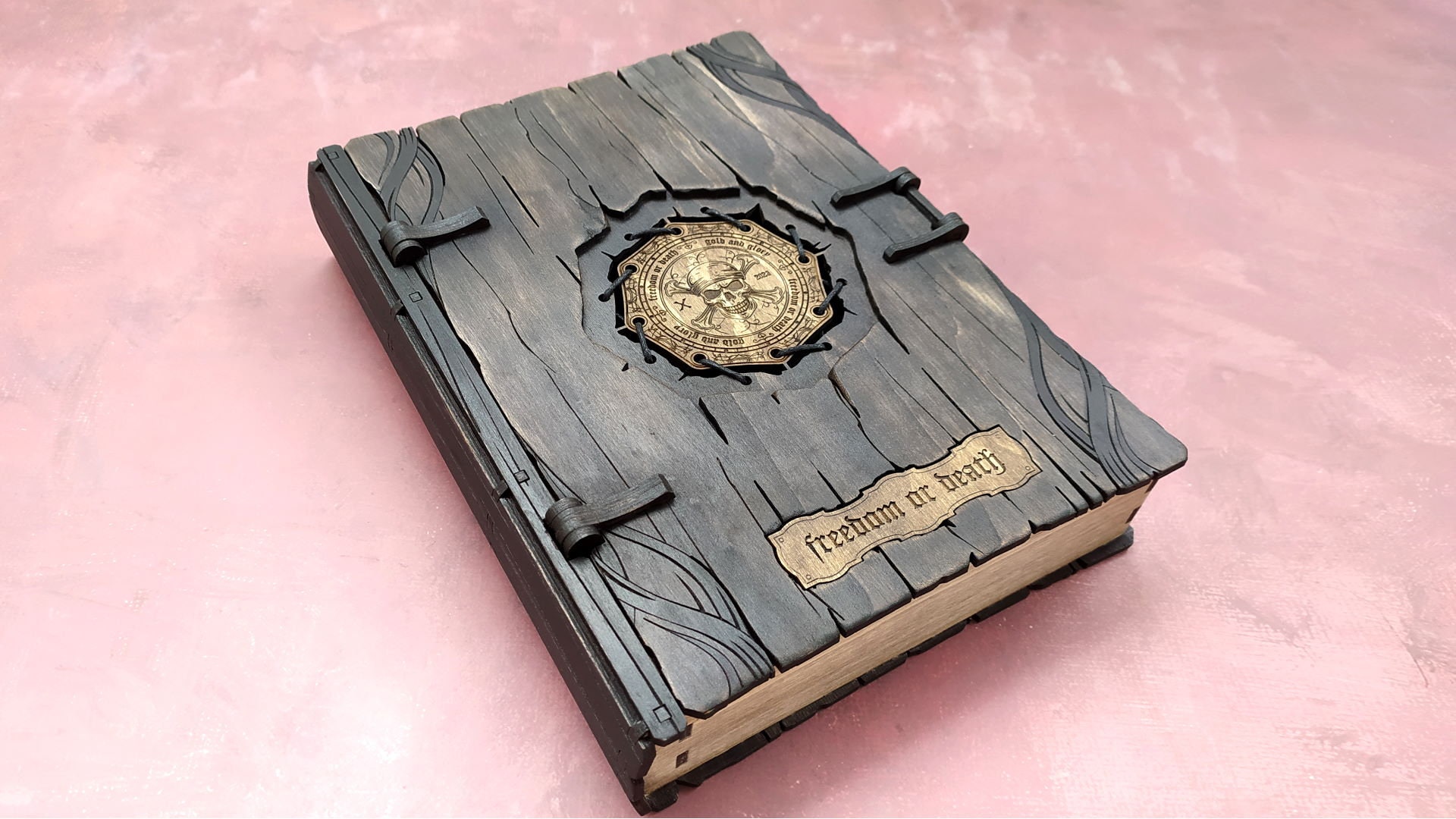

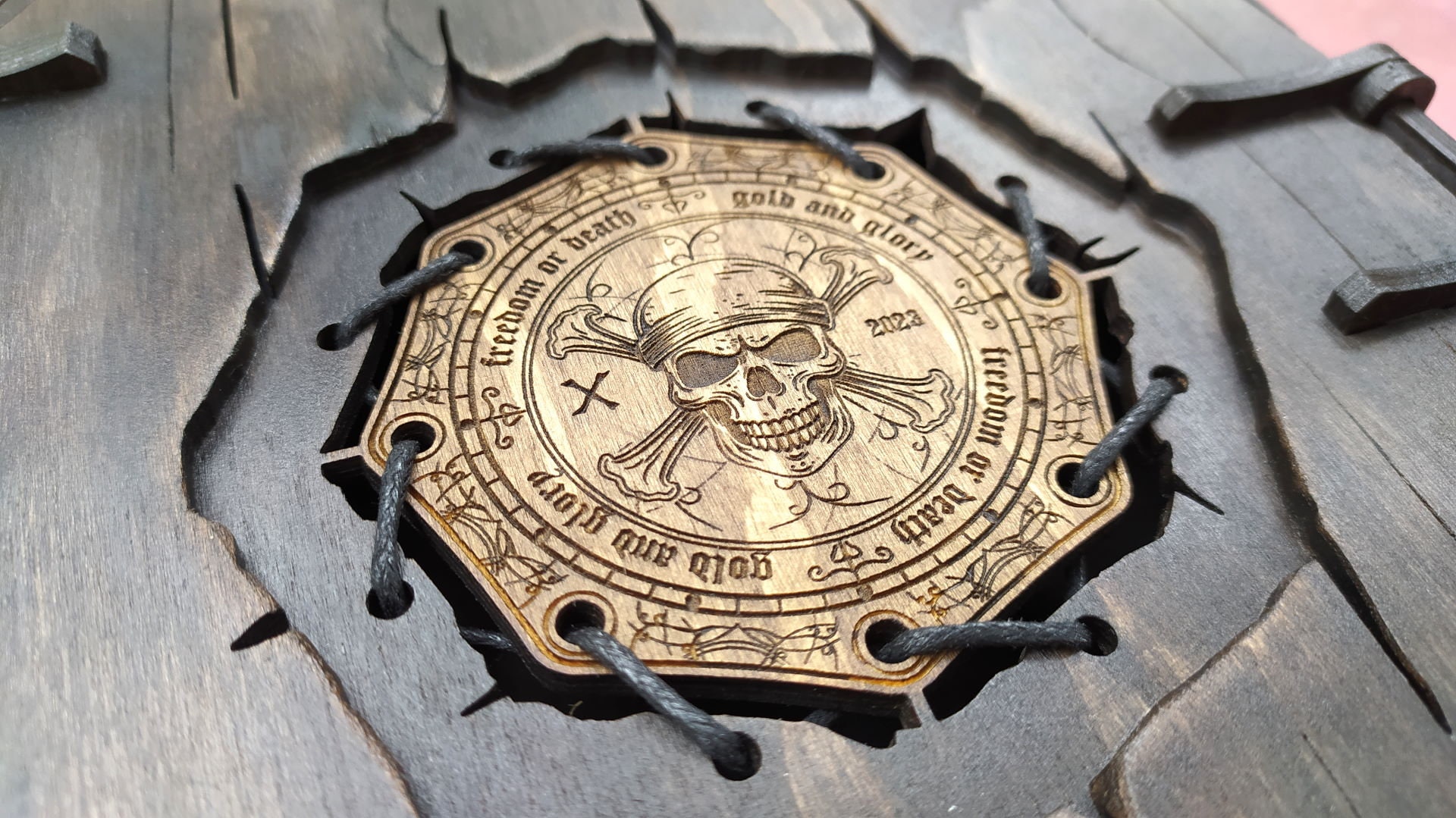

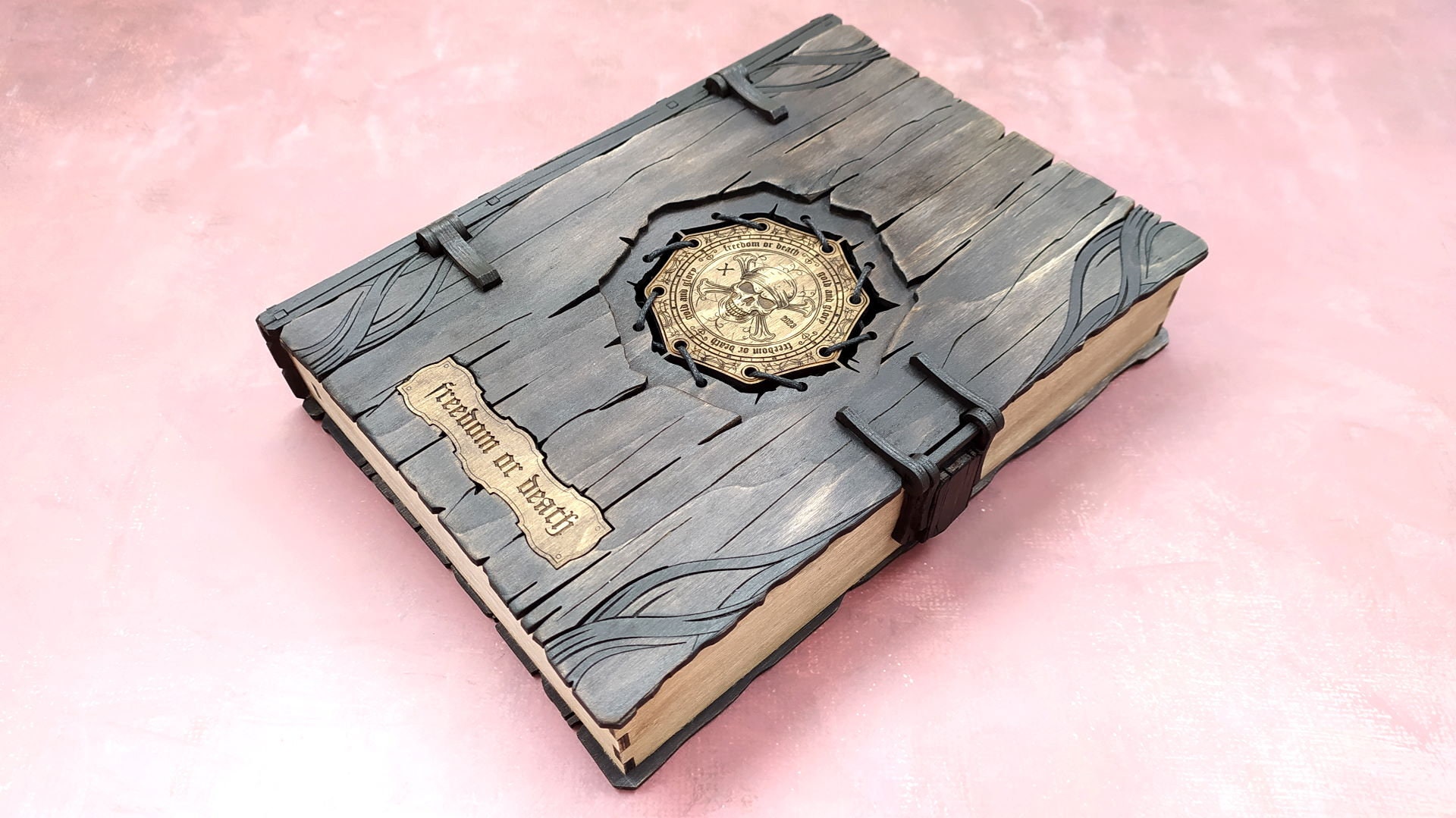

Book box 00145. Digital files for manufacturing products on a CNC laser machine. Book box with magnetic locks. The book is made in a pirate style. The interior space is flat, without protrusions. Despite the large size of the book – this file is also suitable for small laser machines with a working field of 300x200mm / 11.8×7.8inch. The cover of the book is made from 2 layers of plywood – this minimizes warping of the plywood after painting and makes the box very durable. Also on the cover there is a plate for personalization (your own text, name, etc.) which can be easily installed in an already assembled box.

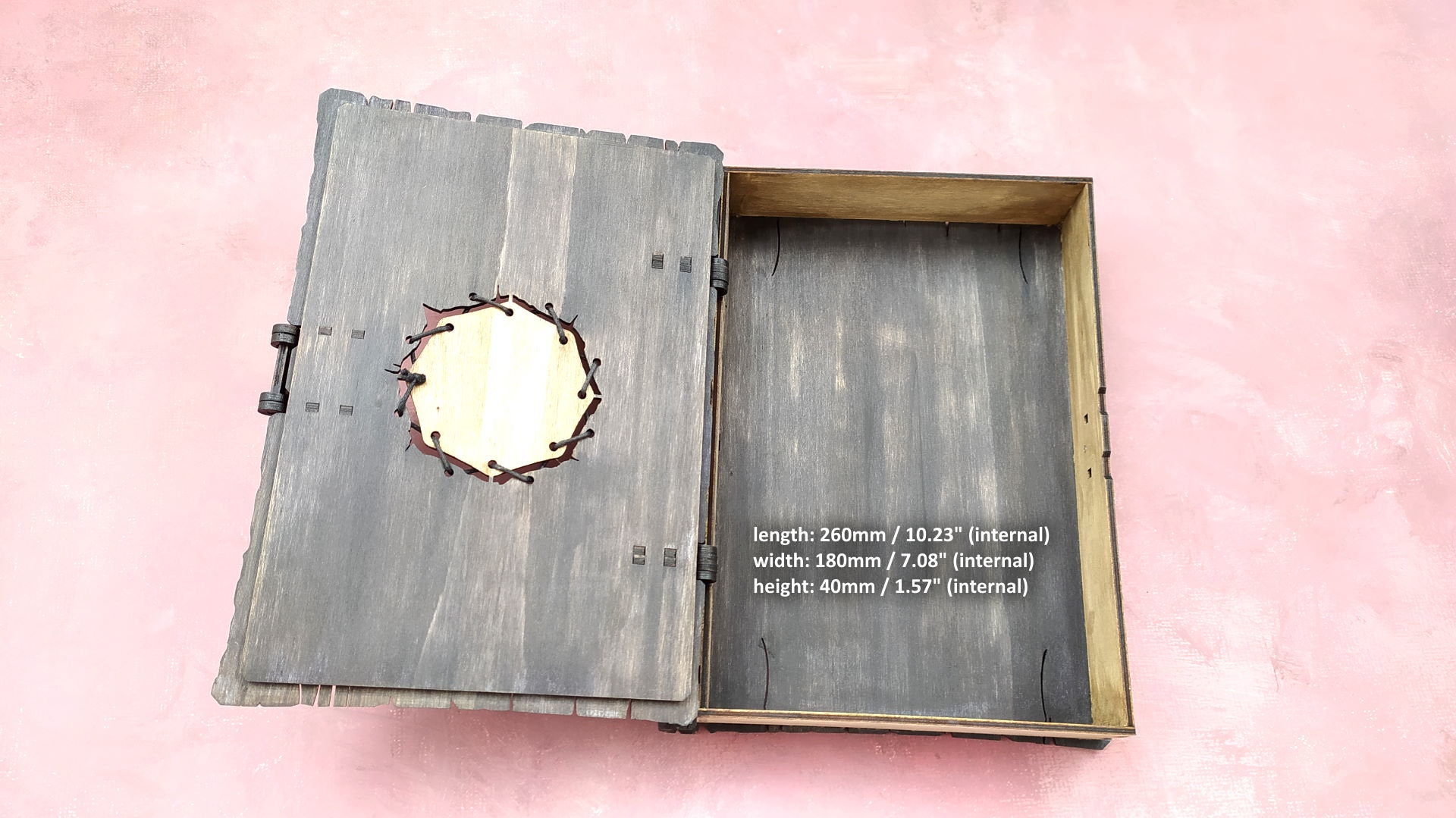

length: 260mm / 10.23" (internal)
width: 180mm / 7.08" (internal)
height: 40mm / 1.57" (internal)

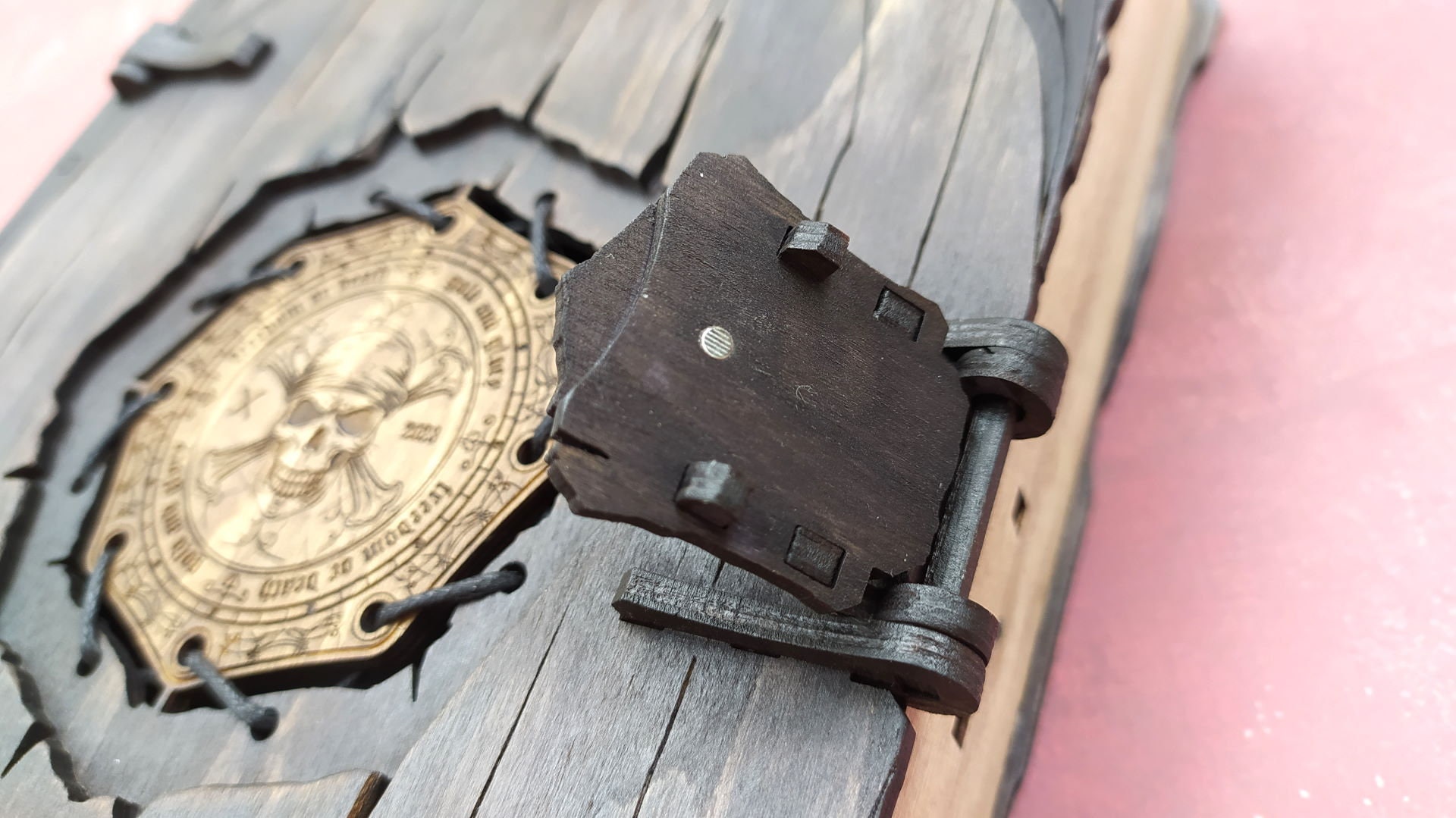

For a magnetic lock, you need 2 magints with a diameter of 3mm/0.12". The thickness of the magnet must not exceed the thickness of the material. The diameter of the magnets can be corrected in any vector editor (for example, free inkscape).
Black rope 50cm, diameter up to 2mm.

kerf (cut compensation): 0 and 0.15mm
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm, 6mm, 1/4inch (6.35mm)
digital product includes: CDR, SVG, PDF, AI

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
