Pirate Book Box Laser Cut Files: SVG, PDF, CDR (Digital Product)

Book box 00228. Digital files for manufacturing products on a CNC laser machine (co2 laser or diode laser).

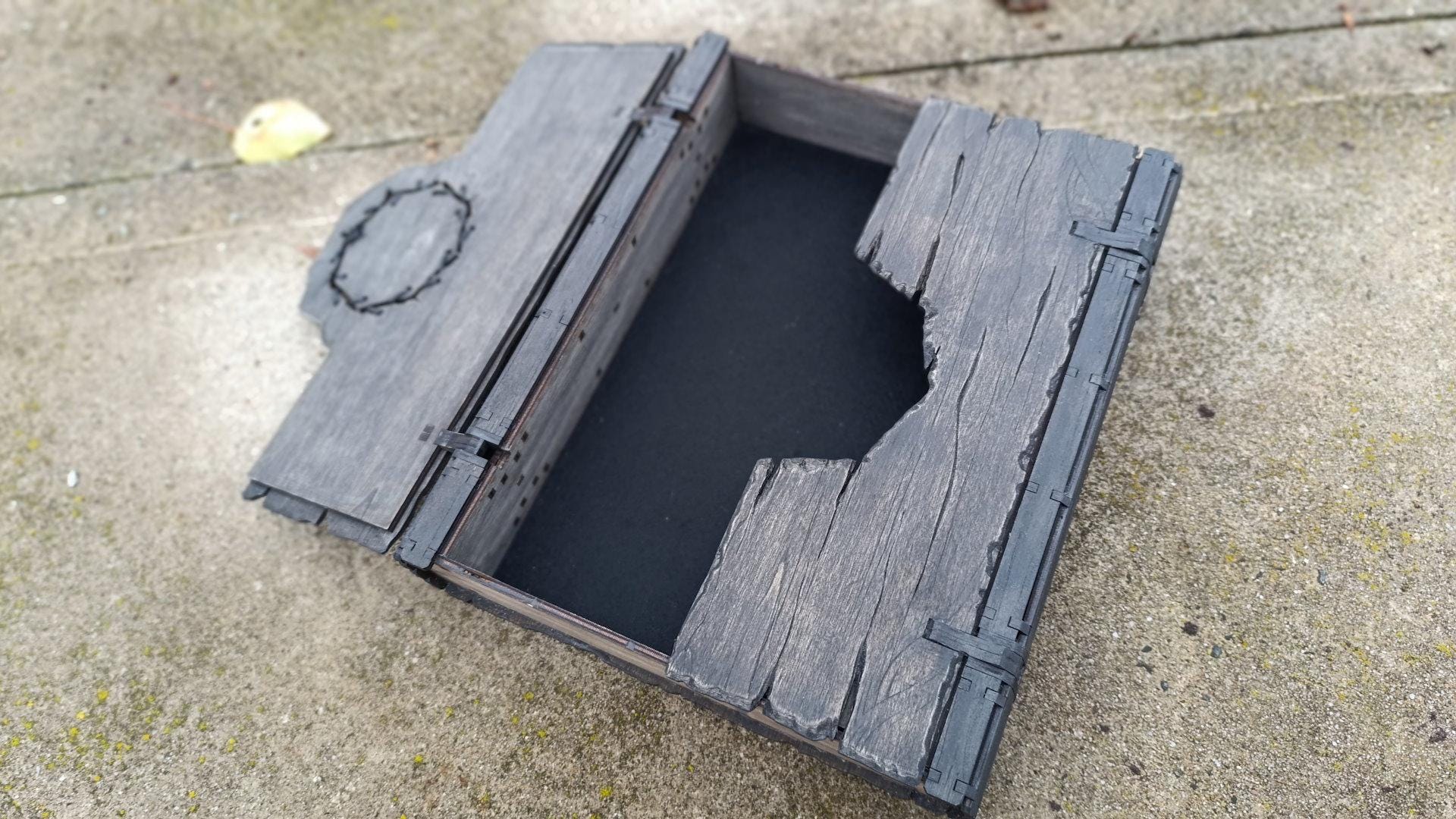

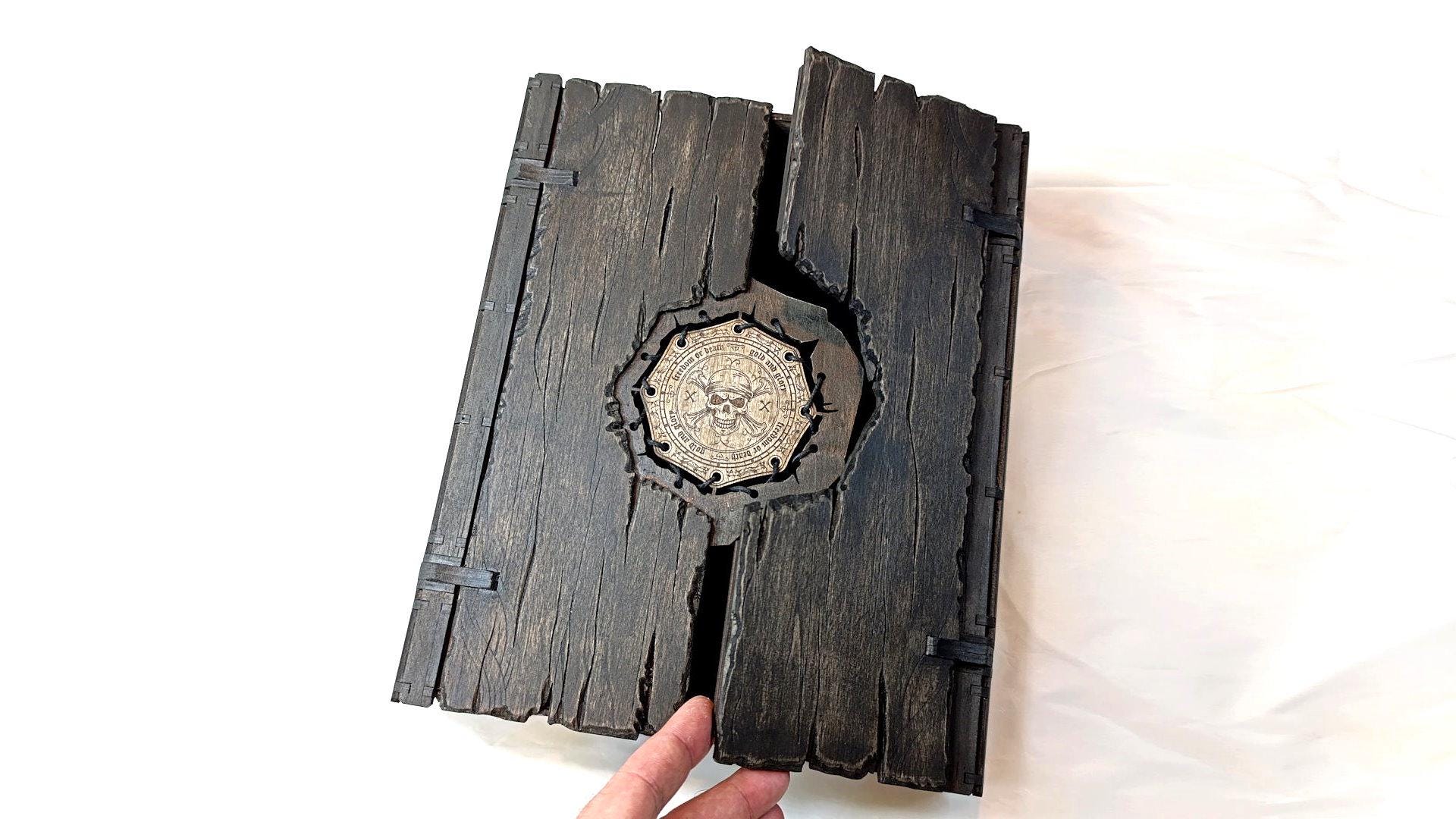

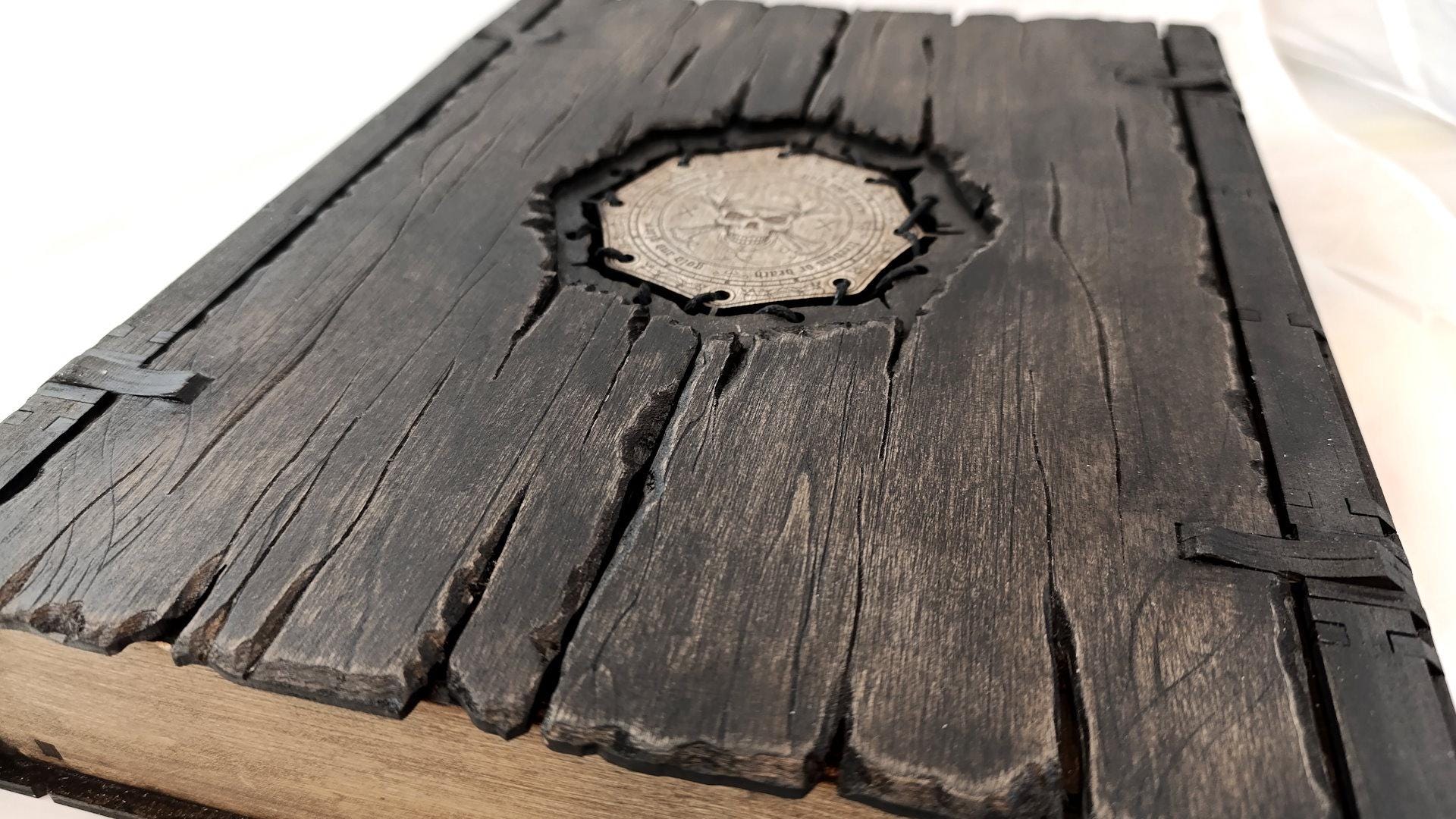

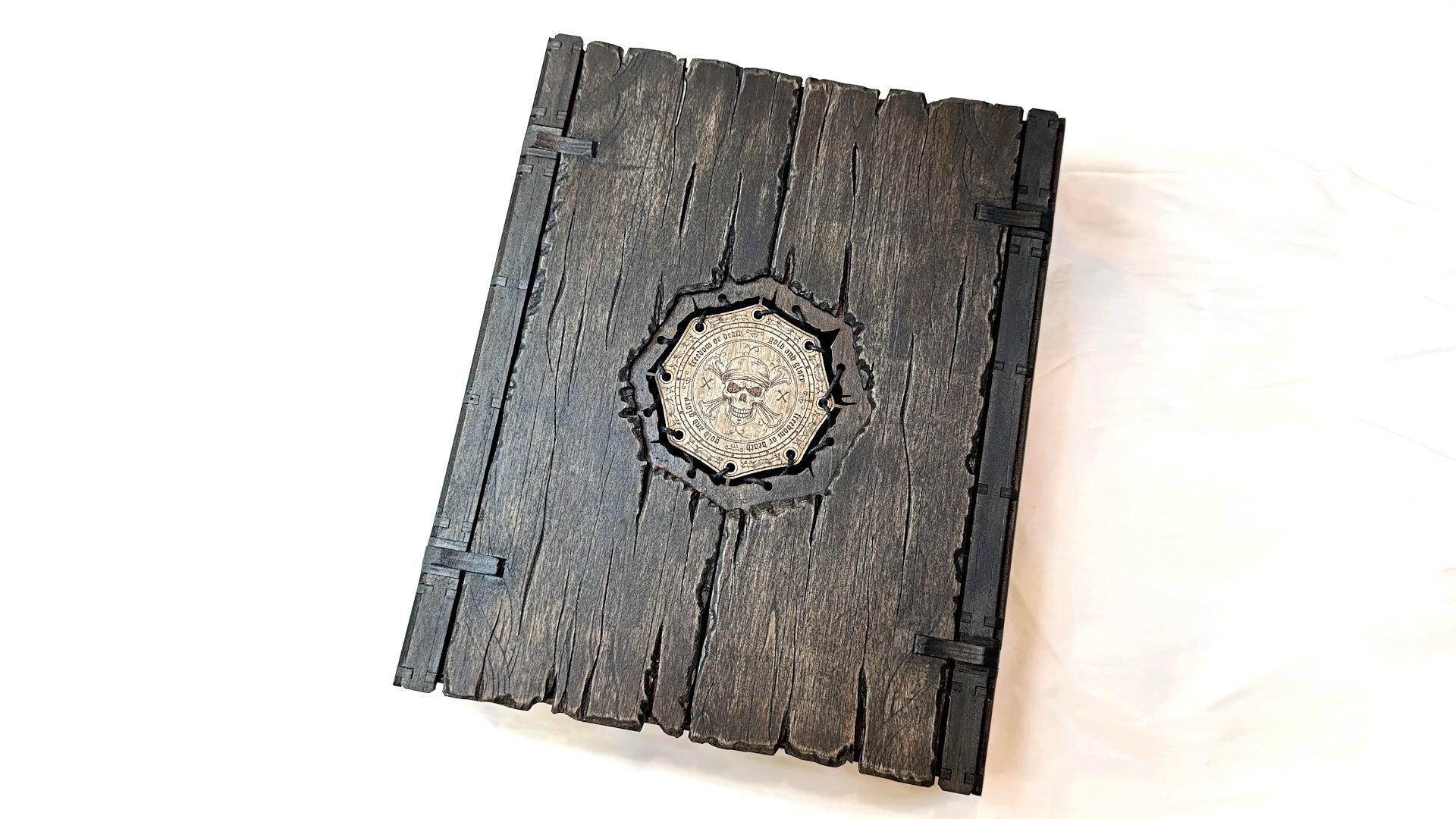

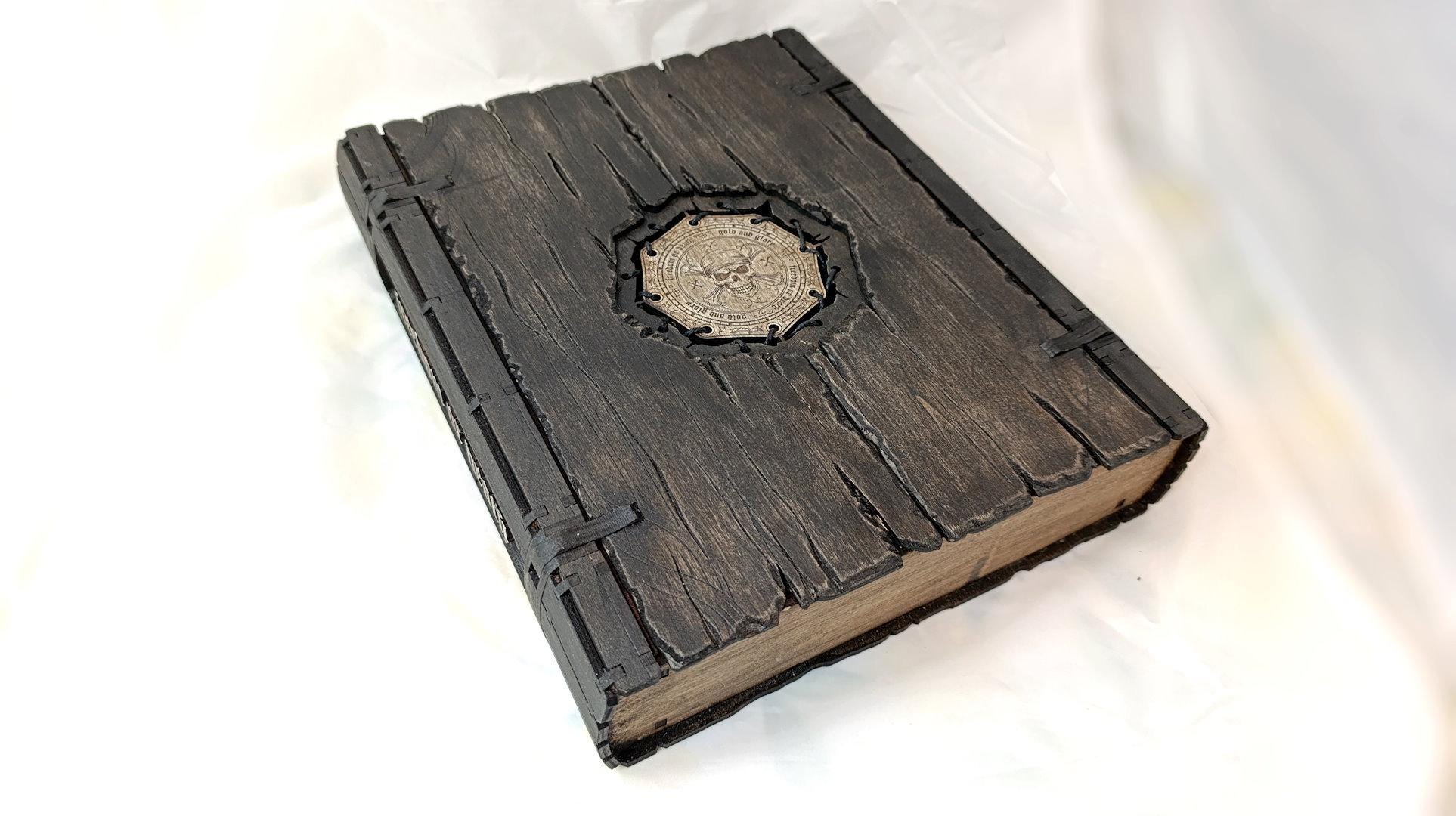

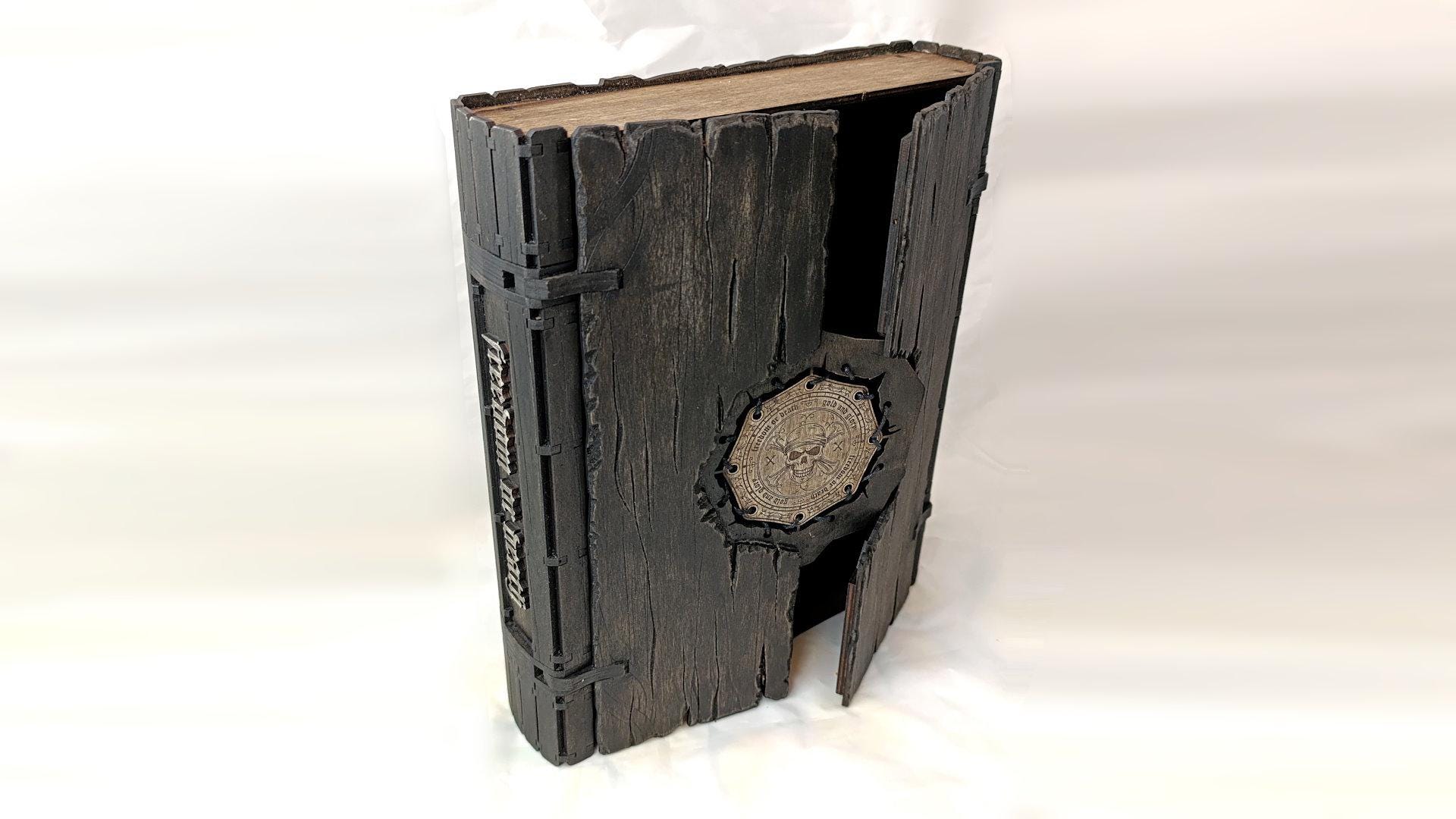

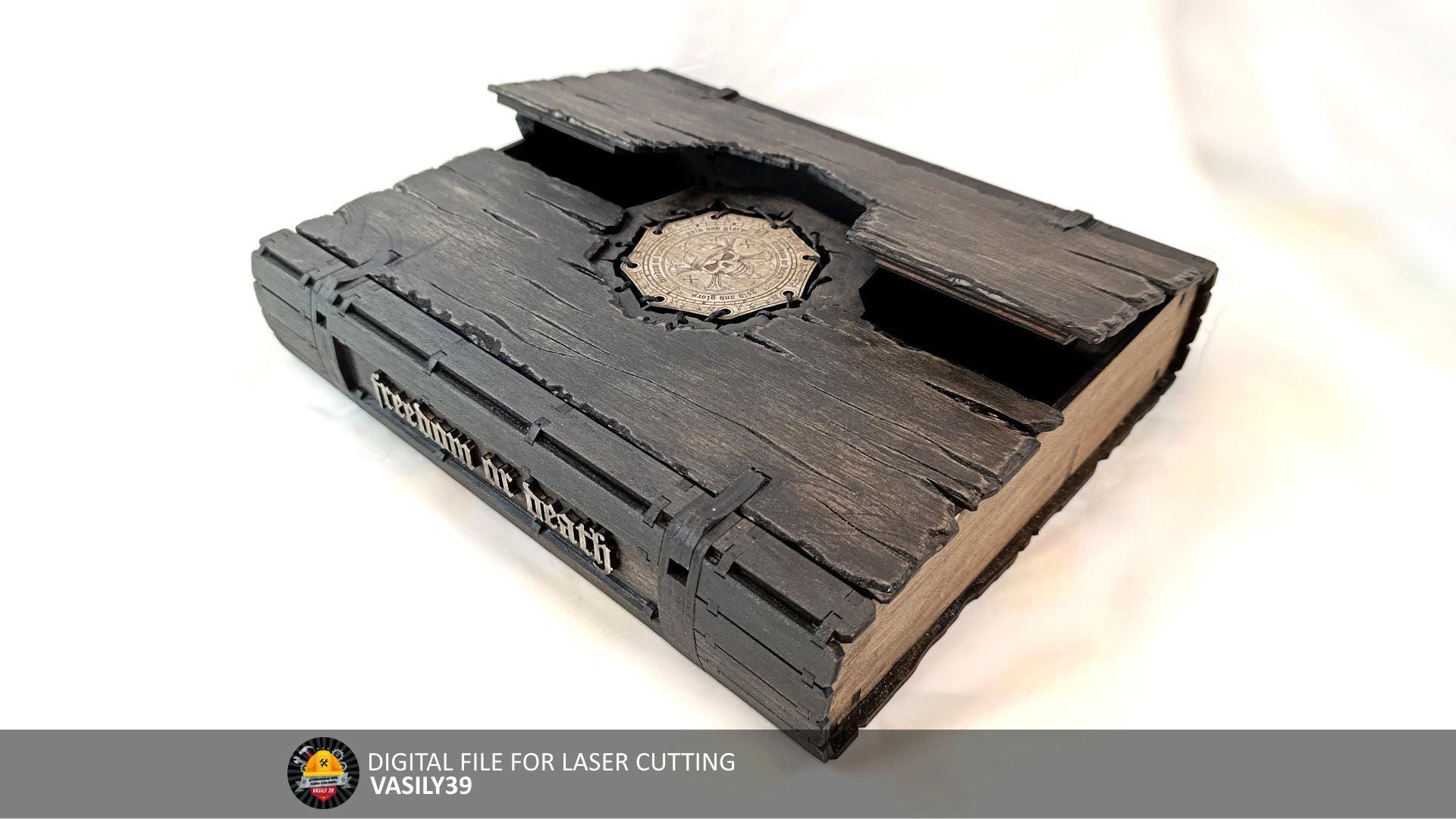

Large book with a double cover in a pirate style. Sturdy construction. The interior space is without protrusions. The set also includes a basic version of this box without engraving and other changes – you can add any graphics yourself.

The size of the book is quite large, it fits A4 or Letter size paper. Therefore, the working field of the laser machine should be slightly larger than the largest part 320 by 225 mm. For production, you will need about 3 sheets of material 500 by 300 mm. The engraving is located horizontally, it will not take much time. It is desirable that the wood fibers match the direction of the imitation wood on the engraving.

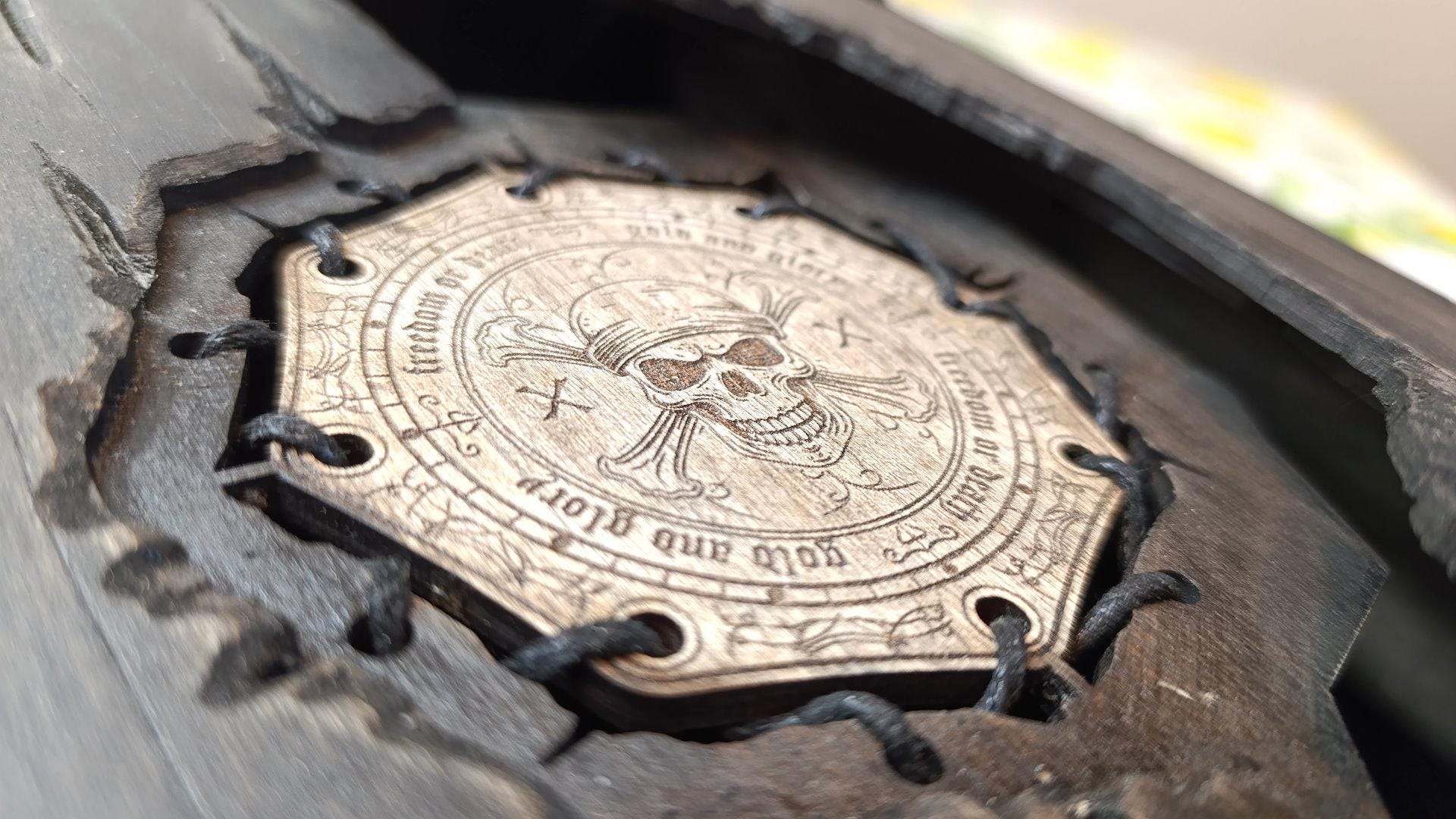

For a pirate-style book, you will need a small piece of rope up to 2 mm in diameter and about 50 cm long. This is not necessary, but it will make the book look more attractive.

For painting, I used black acrylic paint diluted with water approximately 1 to 1. Then I sanded the lid and painted it with rosewood glaze (you can use rosewood stain).

length: 216mm / 8.50" (internal)
width: 300mm / 11.81" (internal)
height: 50mm / 1.96" (internal)

kerf (cut compensation): 0 and 0.15mm
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 3.8mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 1/4inch (6.35mm)
digital product includes: CDR, SVG, PDF, AI

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
