Universal Wine Box Laser Cut Files: SVG, PDF, CDR (Digital Product)

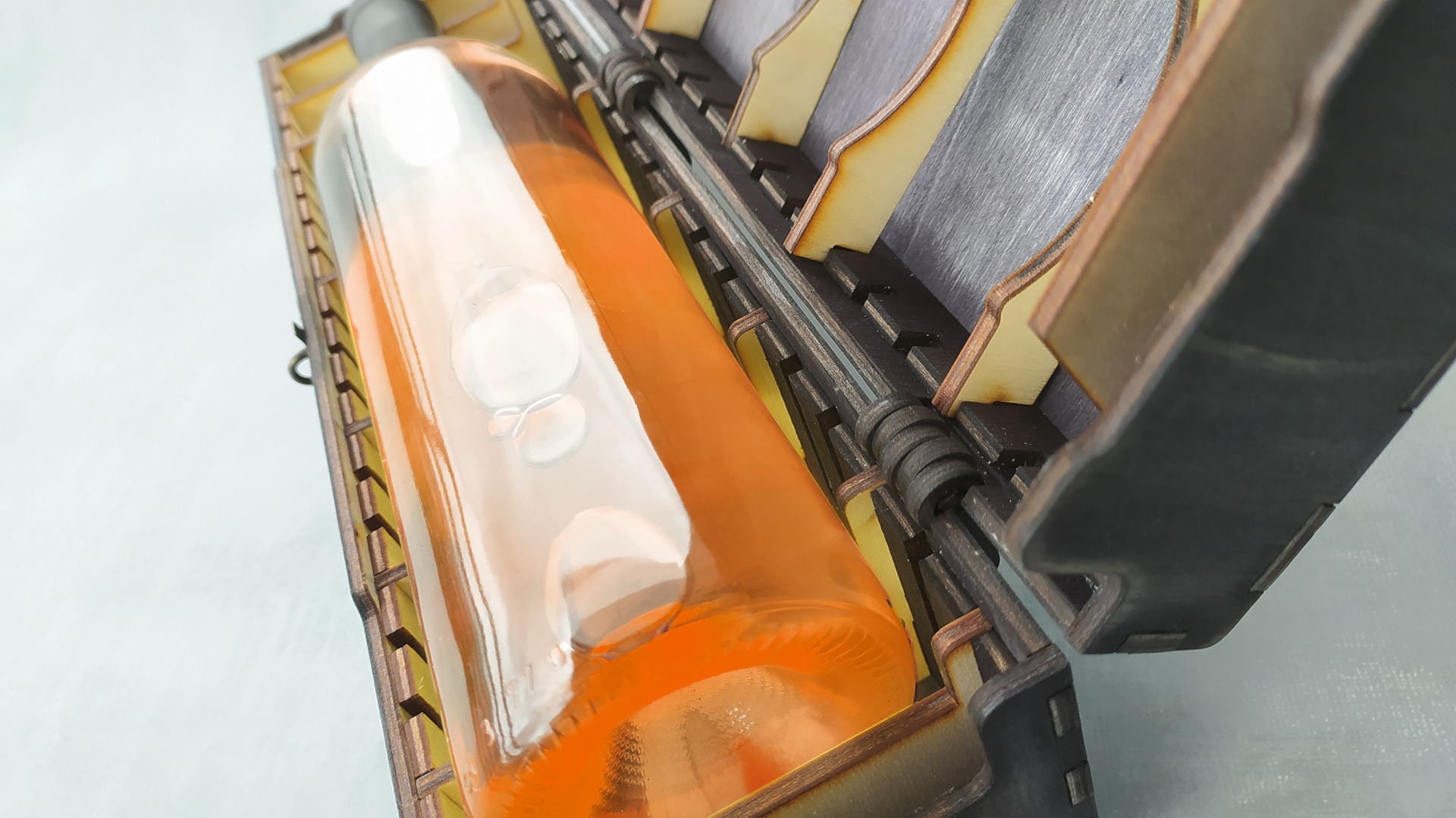

This is a universal box for wine bottles 0.75L. Since the shape and height of the bottles is something not repeatable and there is no standard, I made such a universal version of the inner insert that will fit in 99% of cases.

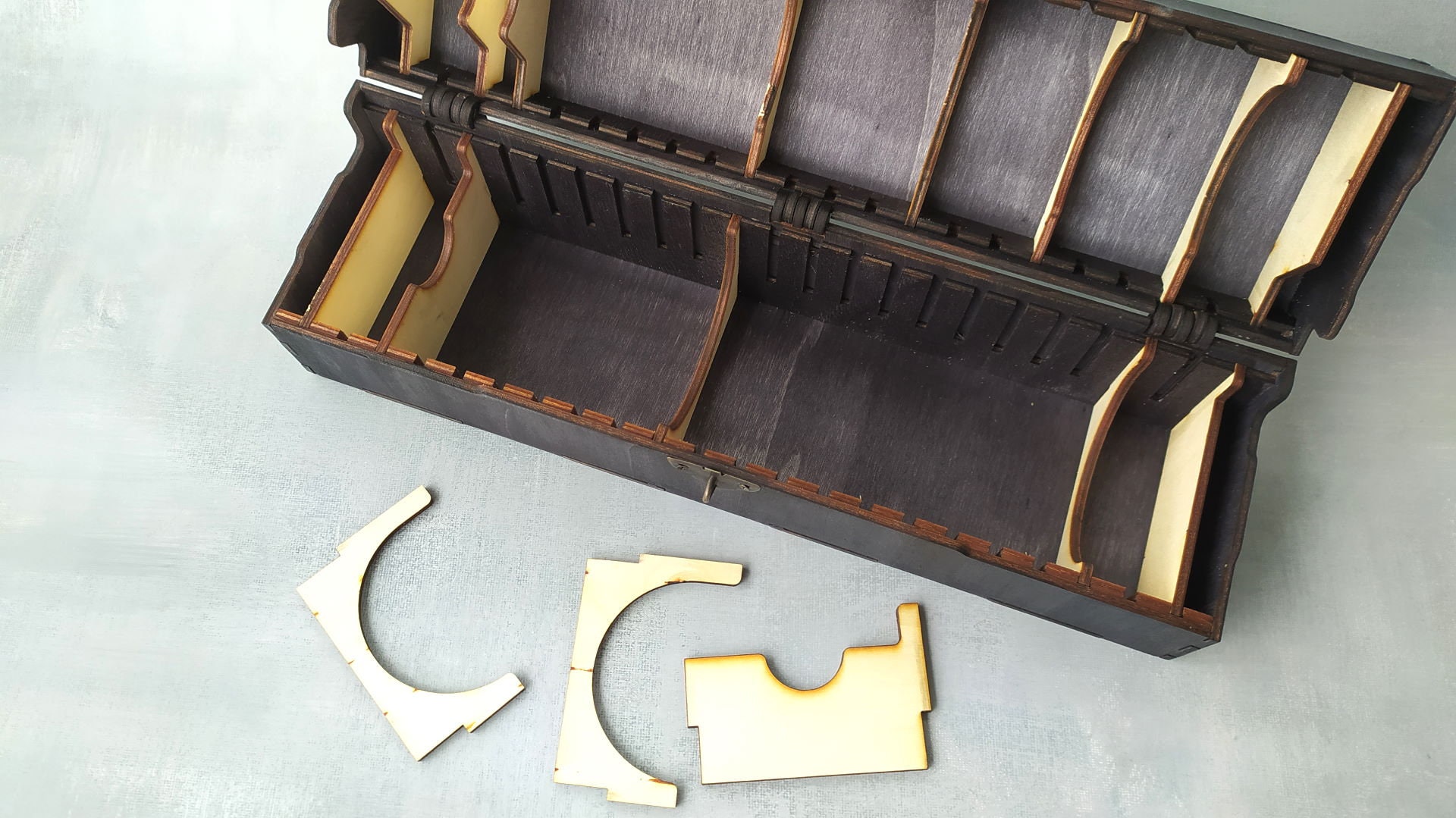

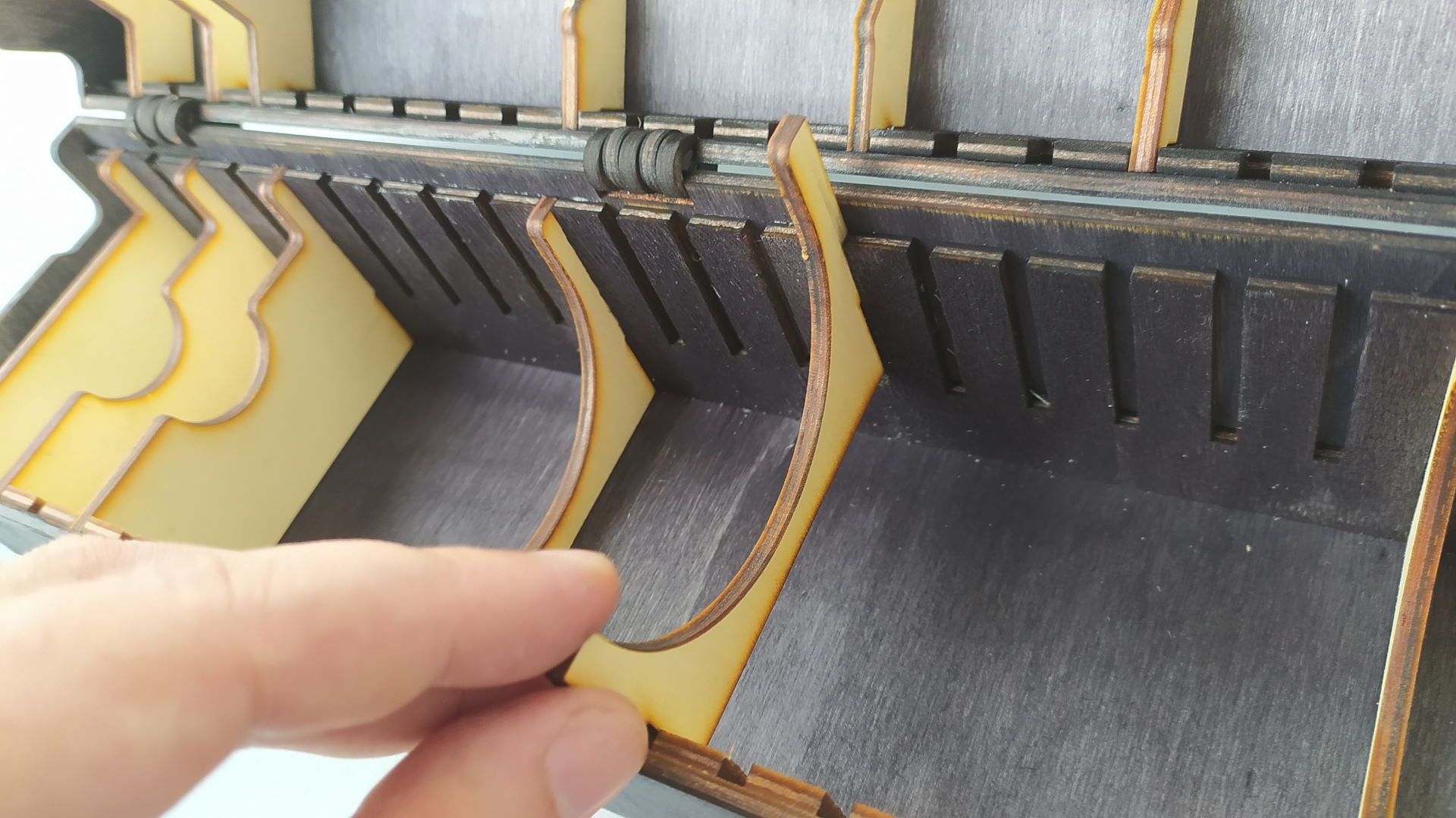

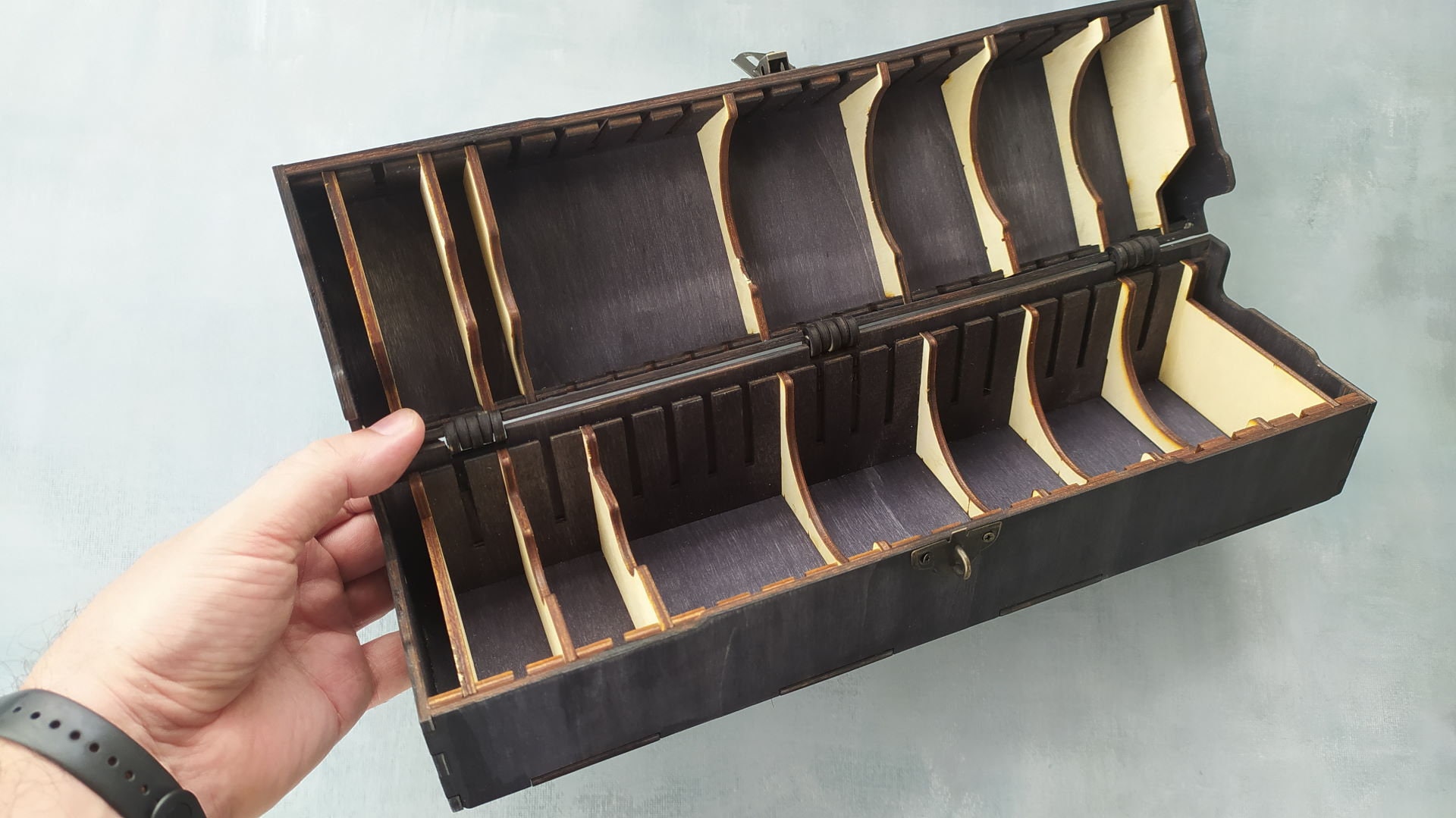

The file contains inserts for different diameters – from 22mm to 82mm in 5mm increments. Just measure the bottle at different height and make the parts you want. You can also easily change the shape of the cutout (for example, if you need a square one) in any vector editor.

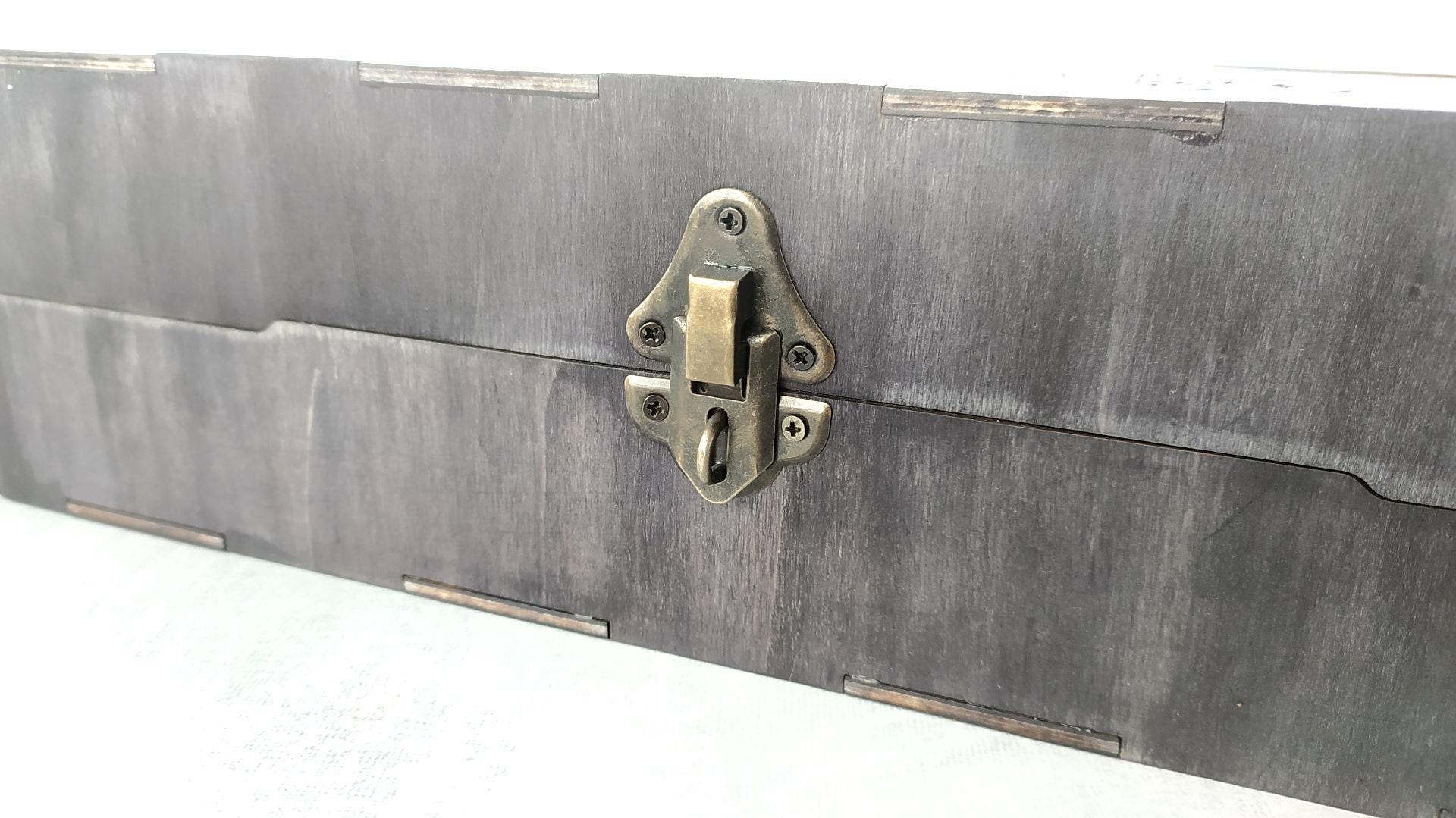

You will need any lock for the box, as there is no lock in the box design.

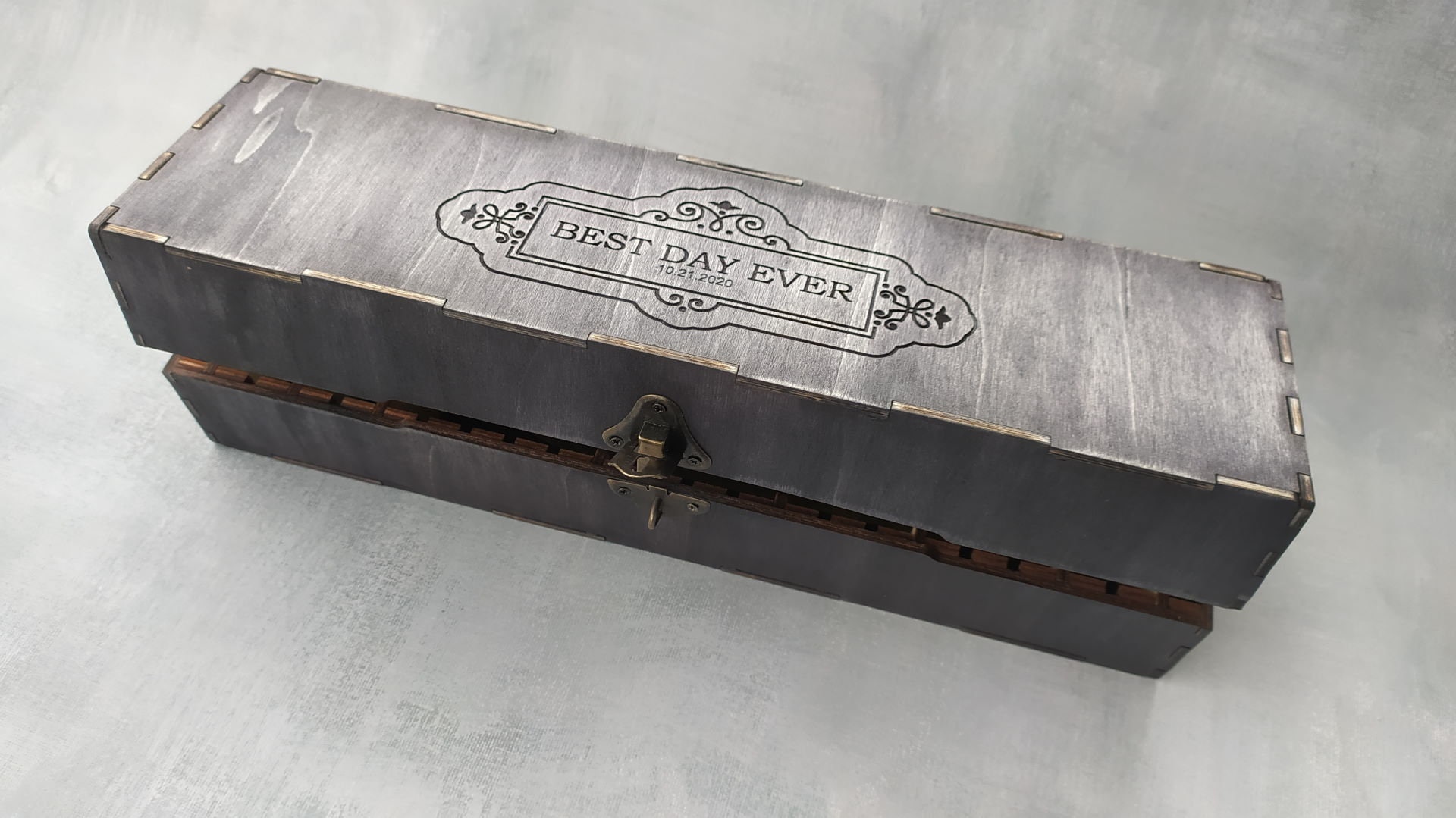

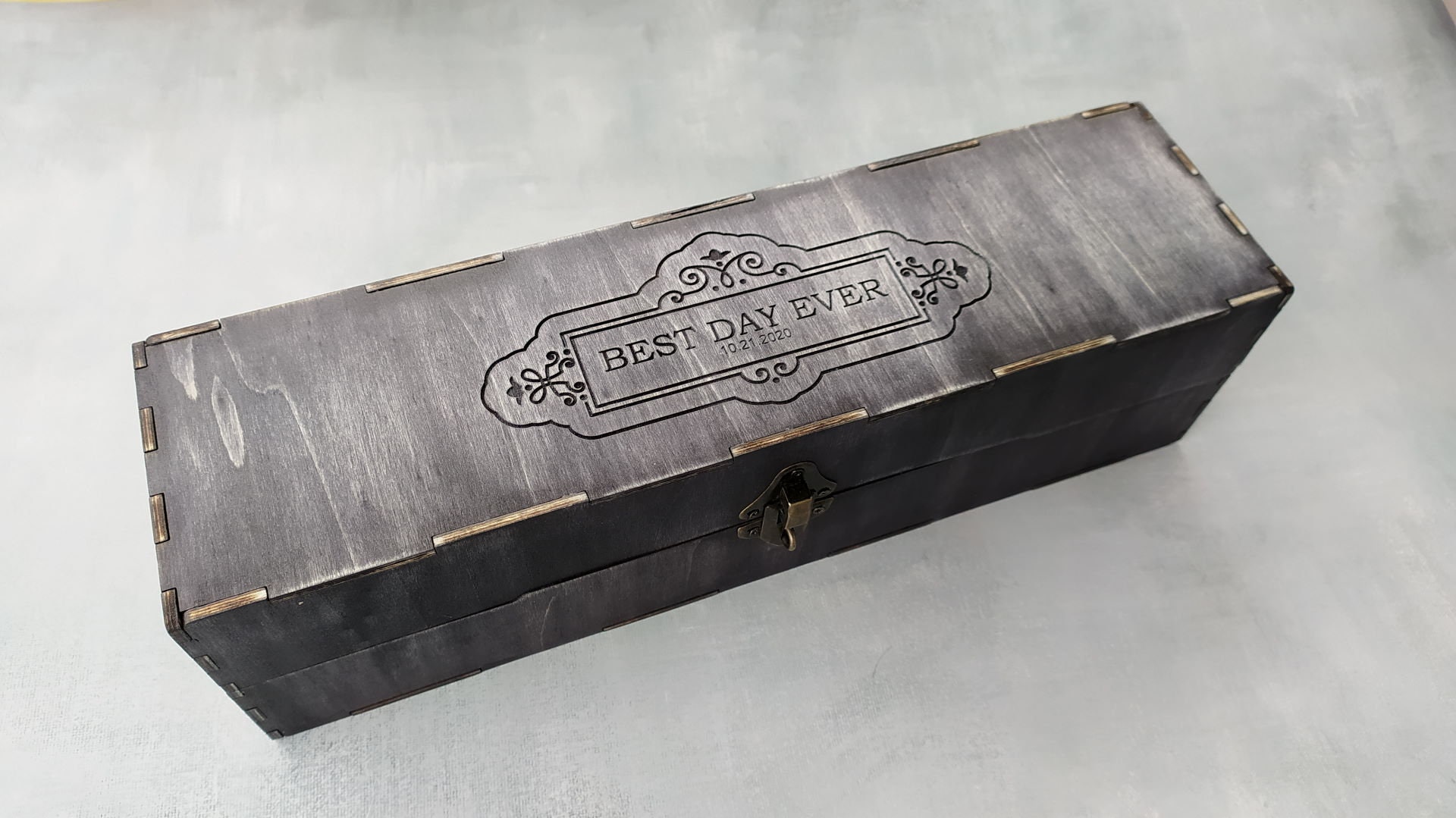

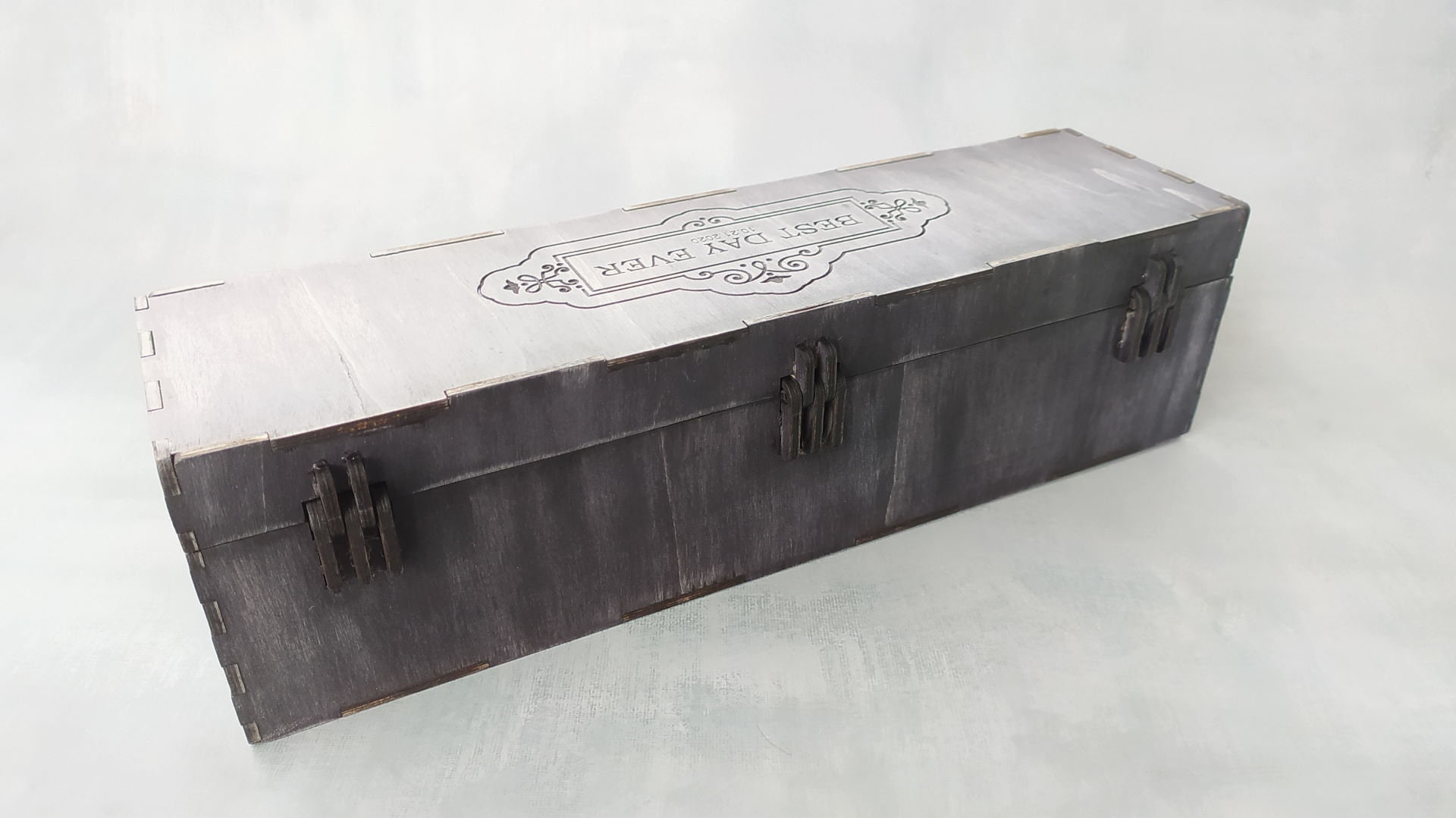

The engraving shown on the box is for example only and is not included.

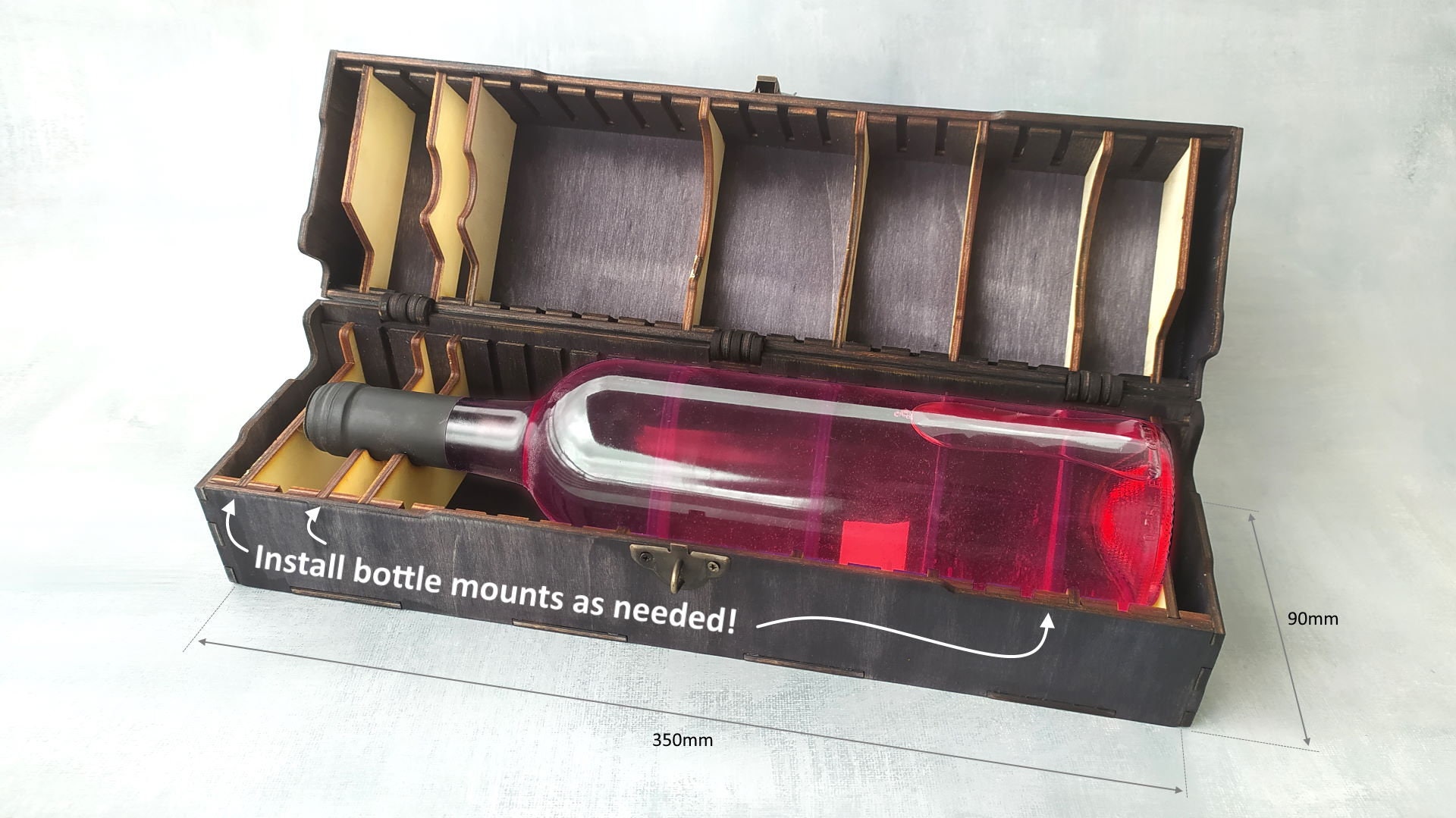

Inner size:
length 350mm
width 90mm
height: 90mm

kerf: 0.15mm
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 4mm, 4.5mm, 5mm, 6mm, 1/4inch (6.35mm)
digital product includes CDR, SVG, PDF, DXF, AI files.

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
