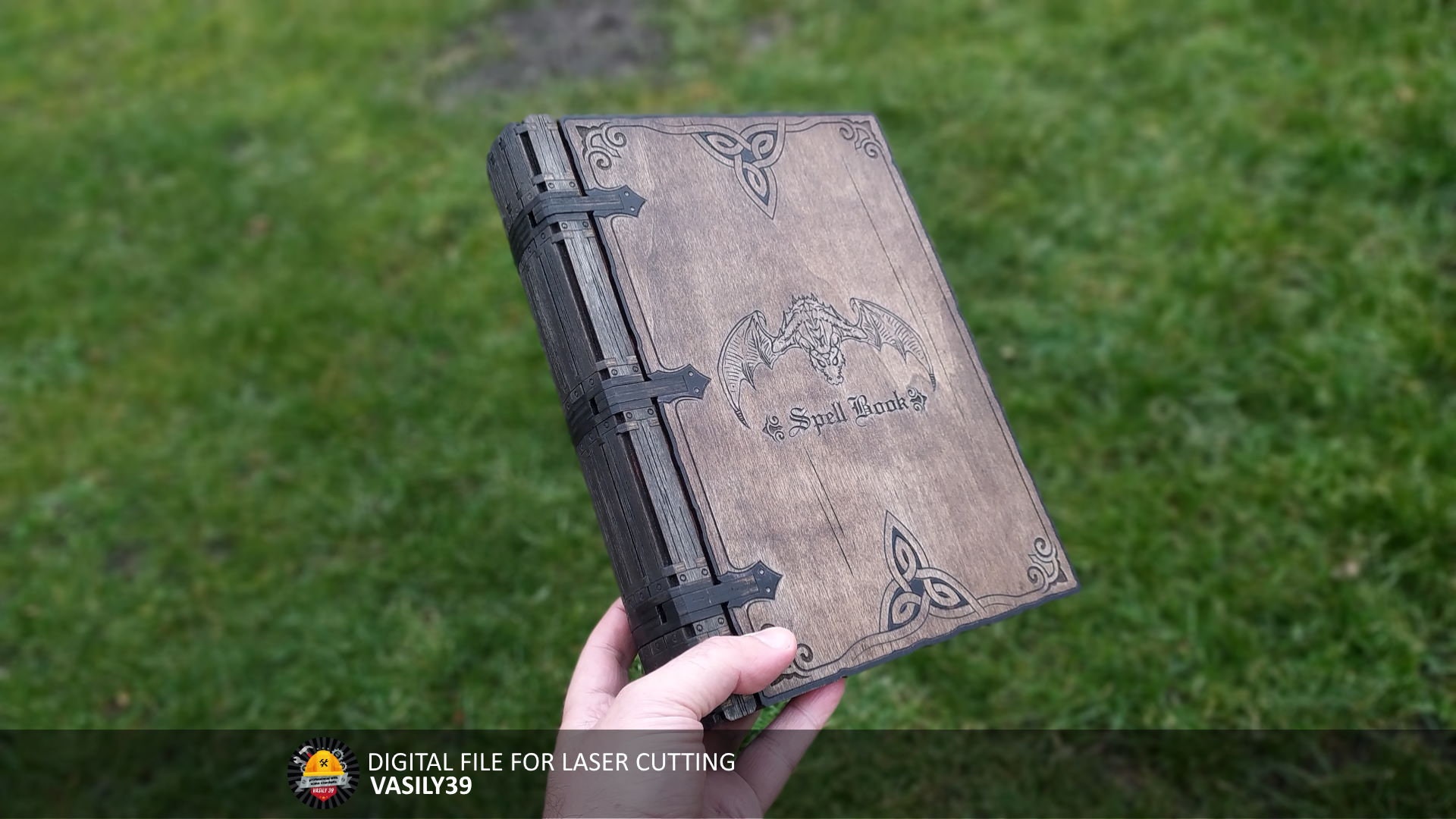

Laser Cut Book Box SVG, CNC Plywood Files (Digital Product)

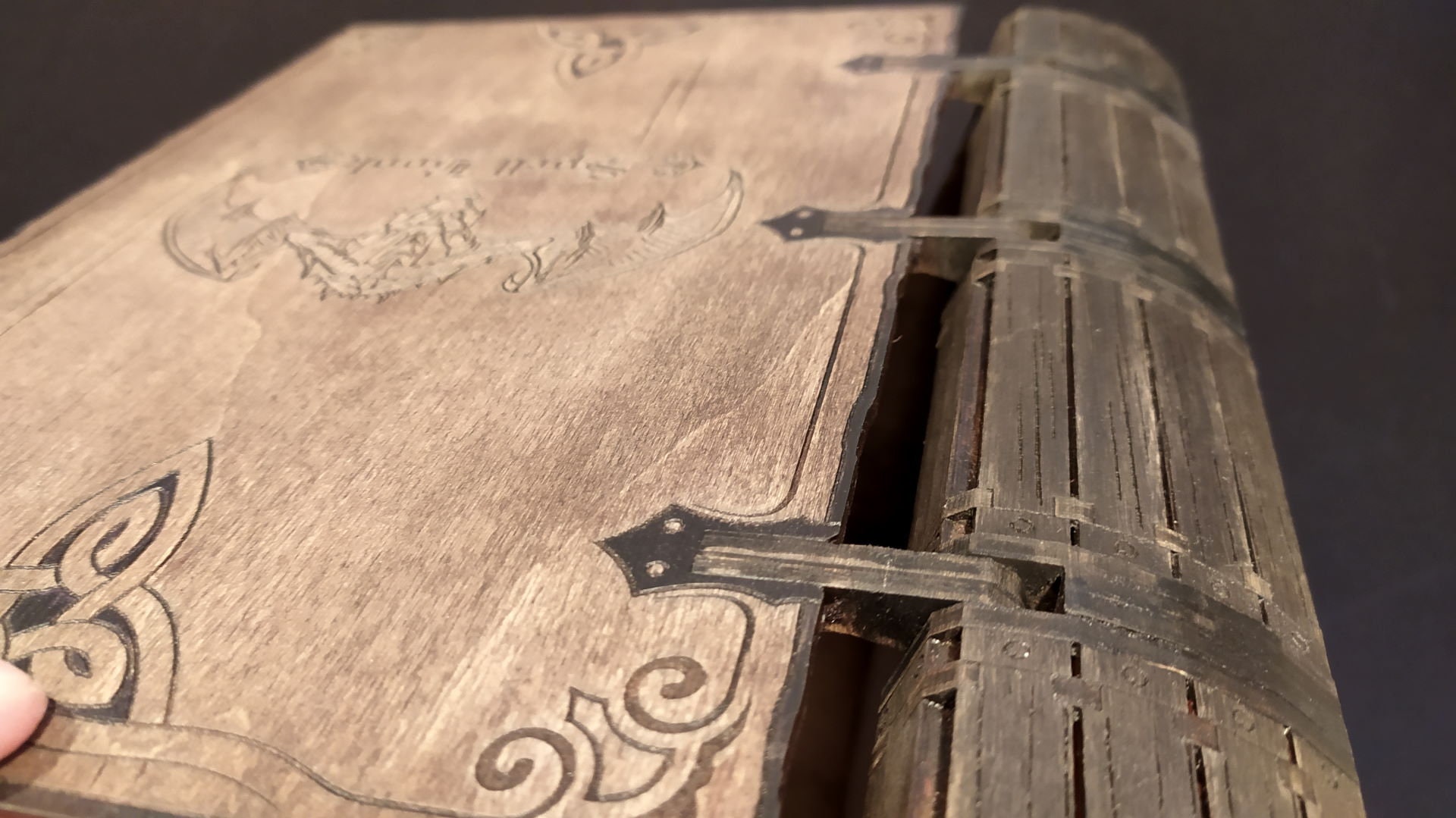

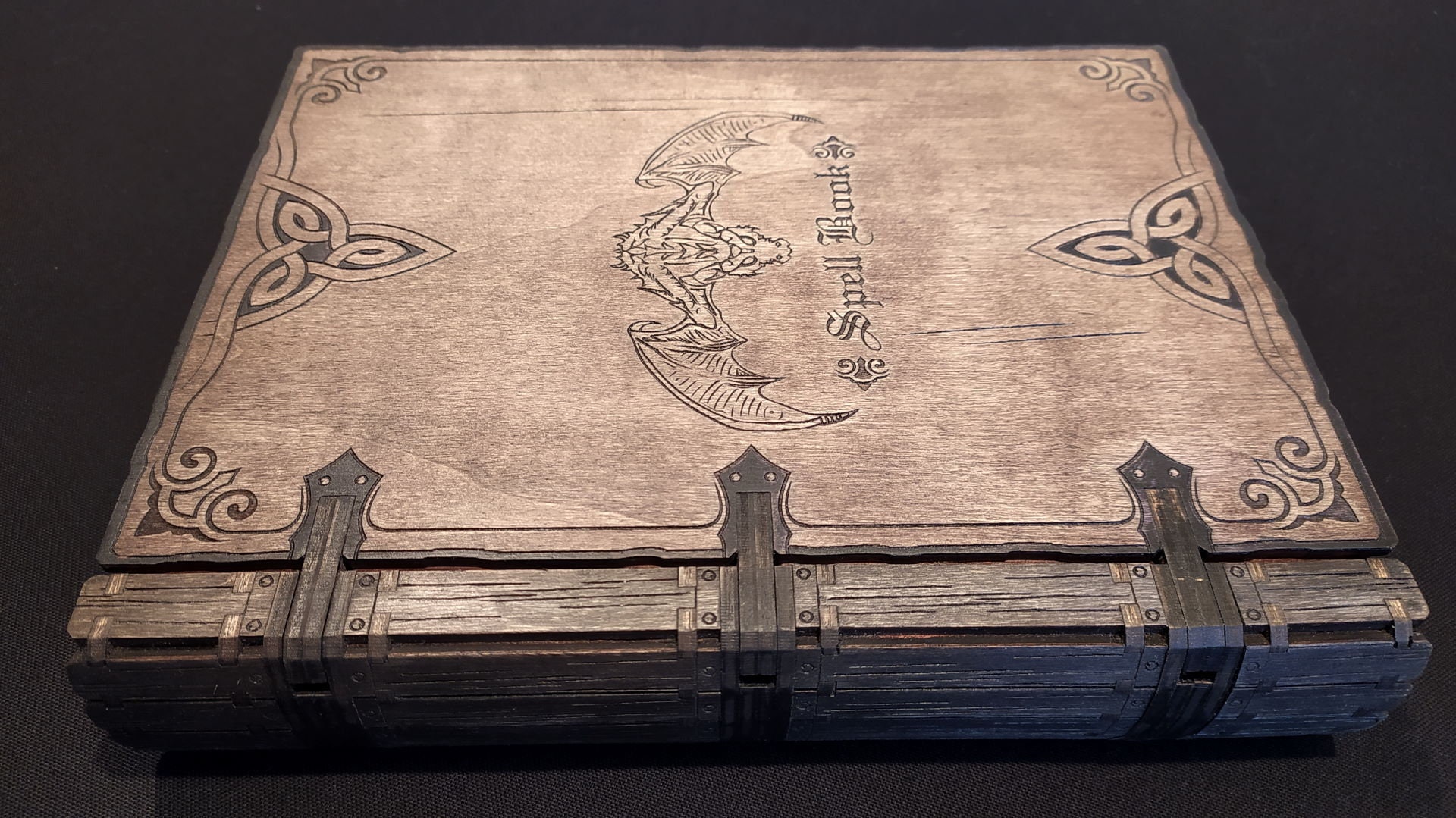

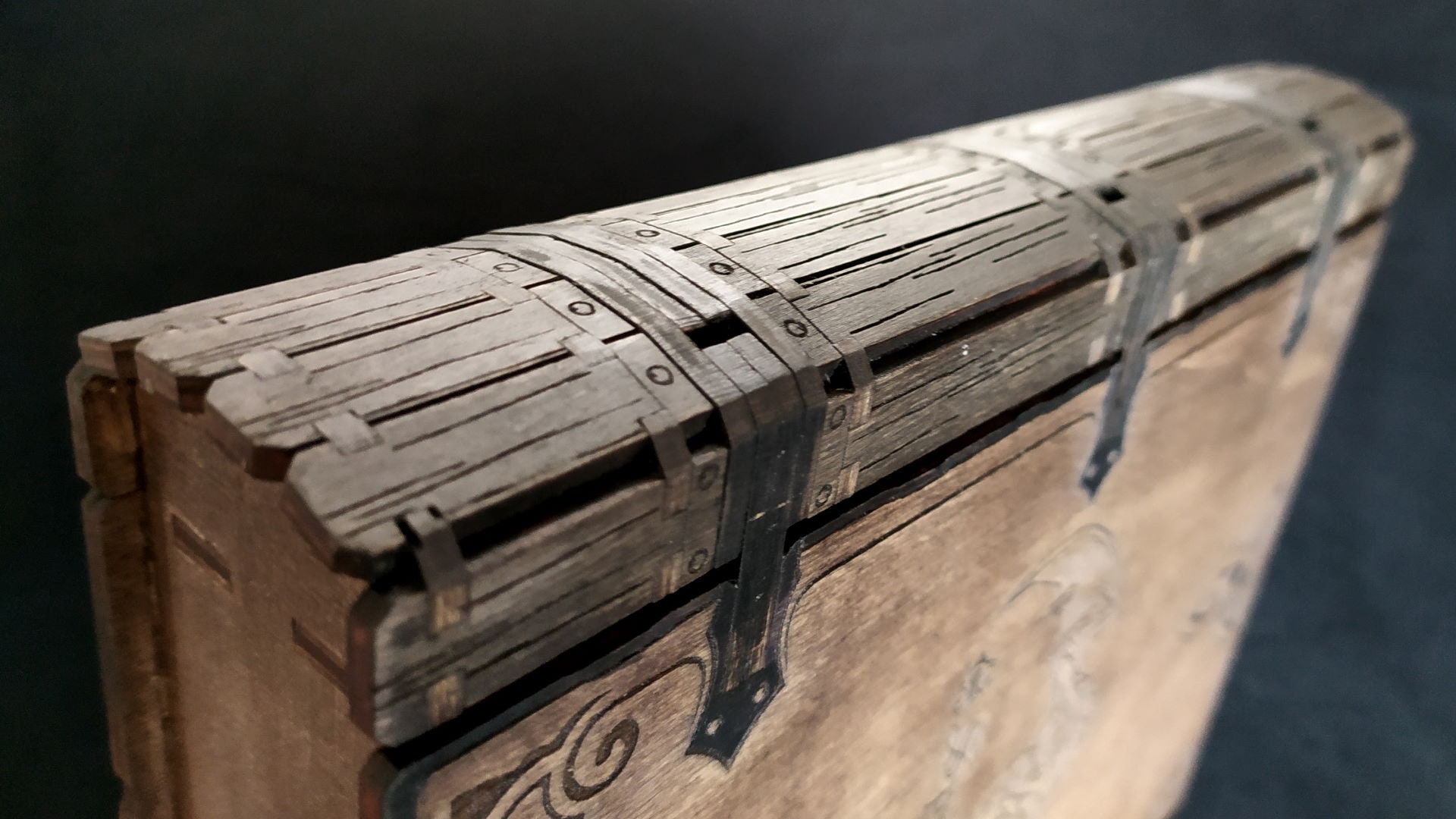

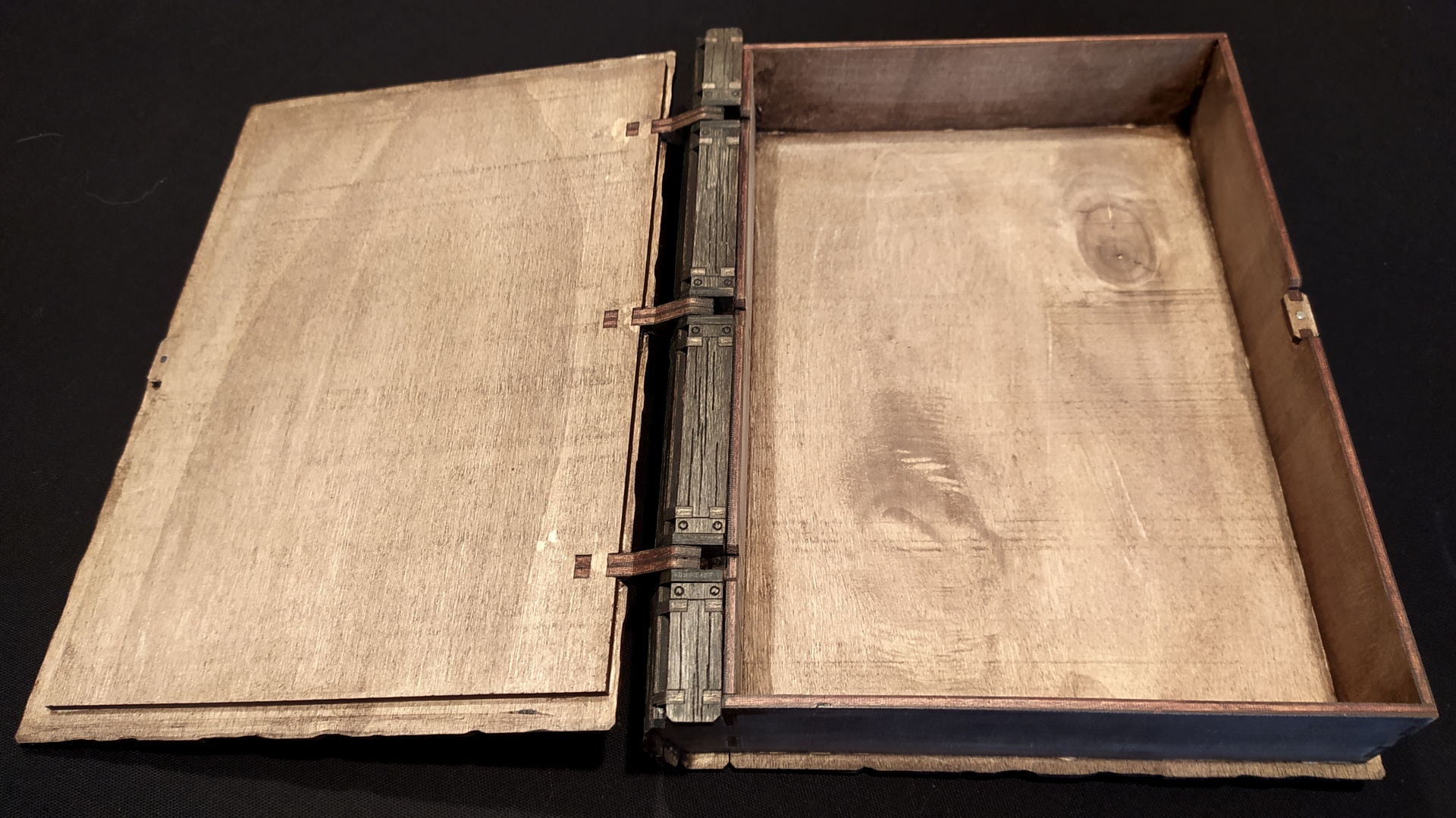

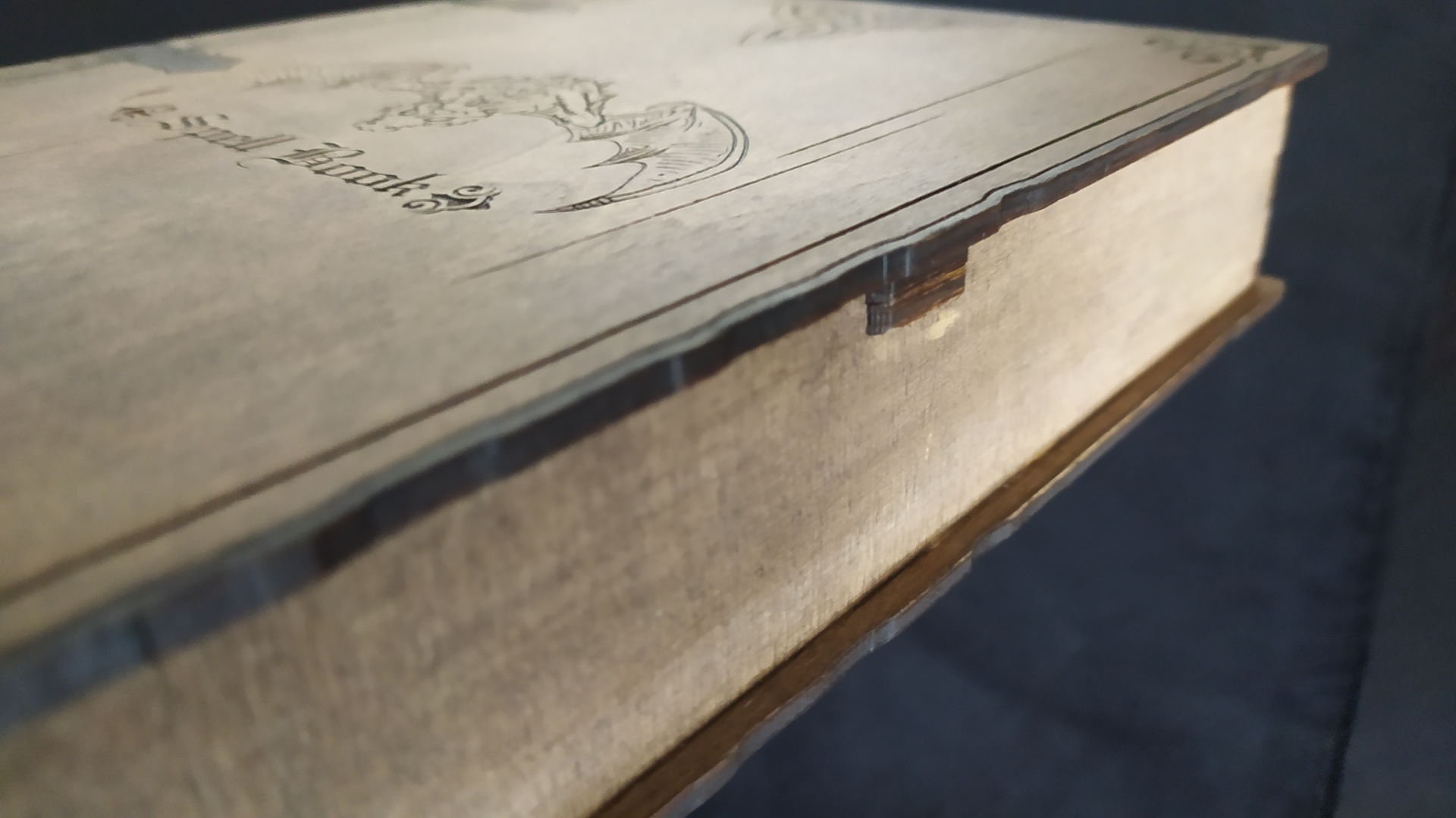

Book box 00198. Digital files for manufacturing products on a CNC laser machine. The hinges are in the same plane as the lid. The cover has 2 layers – this makes it durable and it does not bend after painting. The lid has a magnetic lock. The design of the book spine turned out to be quite complex due to the design of the hinges, so it is very important not to use wood thicker than specified in the file. The interior of the box is rectangular and flat. The size of the book is made so that it can be produced even on a small laser machine with a field of 300 by 200 mm.

length: 260mm / 10.23" (internal)
width: 180mm / 7.08" (internal)
height: 40mm / 1.57" (internal)
For a magnetic lock 2 rounded magnets 3x3mm. The diameter of the magnets can be corrected in any vector editor (for example, free inkscape).

kerf (cut compensation): 0.15mm and 0mm
design available for plywood thickness: 3mm, 1/8inch (3.175mm), 3.6mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 1/4inch (6.35mm)
digital product includes: CDR, SVG, PDF, AI

ATTENTION! This is not a physical product, these are digital files for manufacturing products on a CNC laser machine. While using this file, you can create finished product for own or commercial use. Resale of digital files and their distribution is prohibited.
